AM 1.5” Injectors
V301015B through V3010-15H injectors include one V3416 O-ring 012 (lower) and one V3171
O-ring 013 (upper).
For Upflow brine application downsize your injector by two tank sizes minimum and refer to the
injector graphs for verifying proper selection.
AM 2” and 2” QC Injectors
4.140
:62, QMHFWRU
$ - *
** V3010-2X-15X Injectors contain a V3010-2-15 AM2 injector adapter with a AM1.5 injector inside
Black
Stamped
Identifier
V3010-2X injectors and the V3010-2-15 Adapter include a V3283 O-RING 117 and a V3284 O-RING 114. The V3010-2-15 Adapter allows the 2"
valve to be used on smaller tank sizes. The V3010-2-15 adapter can be used with any V3010-15X injector. The V3010-15X injector includes one
V3416 O-RING 012 (lower) and one V3171 O-RING 013 (upper).
1. Actual injector size may vary depending on the design and application of the system. The injectors are sized for a typical downflow softener
using standard mesh synthetic cation exchange media regenerating with sodium chloride. See the injector graphs on the following pages to meet
specific applications. Variances in the drain and draw line restrictions will affect injector performance.
For Upflow brine application downsize your injector by two tank sizes minimum and refer to the injector graphs for verifying proper selection.

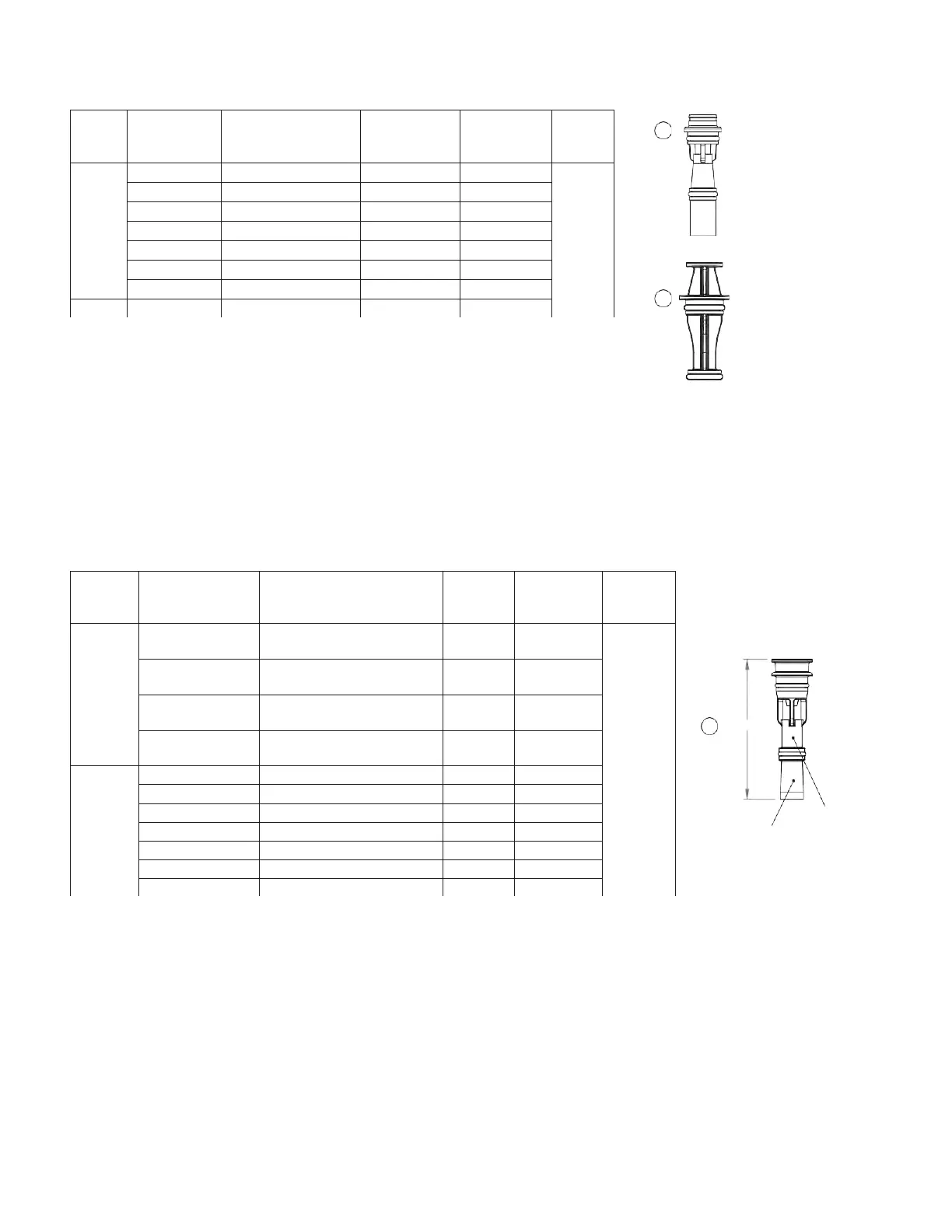

Drawing
No.
Order No. Description Nozzle Color
Downflow
Typical Tank
Diameter
1
Quantity
1
V3010-15B
AM1.5 Injector Asy B
Violet
12”
1
V3010-15C
AM1.5 Injector Asy C
Red
13”
V3010-15D
AM1.5 Injector Asy D
White
14”
V3010-15E
AM1.5 Injector Asy E
Blue
16”
V3010-15F
AM1.5 Injector Asy F
Yellow
18”
V3010-15G
AM1.5 Injector Asy G
Green
21”
V3010-15H
AM1.5 Injector Asy H
Orange
24”
2
V3010-15Z
AM1.5 Injector Plug
NA
1
3
Drawing
No.
Order No. Description Identifier
Downflow
Typical Tank
Diameter
1
Quantity
Not
Shown
V3010-2R-15B **
AM2 / 2H Injector Assembly
R, W/V3010-15B
Violet
12”
1
V3010-2S-15C **
AM2 / 2H Injector Assembly
S, W/V3010-15C
Red
13”
V3010-2T-15D **
AM2 / 2H Injector Assembly
T, W/V3010-15D
White
14”
V3010-2U-15E **
AM2 / 2H Injector Assembly
U, W/V3010-15E
Blue
16”
3
V3010-2A
AM2 / 2H Injector Assembly A
Stamped A
18”
V3010-2B
AM2 / 2H Injector Assembly B
Stamped B
21”
V3010-2C
AM2 / 2H Injector Assembly C
Stamped C
24”
V3010-2D
AM2 / 2H Injector Assembly D
Stamped D
30”
V3010-2E
AM2 / 2H Injector Assembly E
Stamped E
36”
V3010-2F
AM2 / 2H Injector Assembly F
Stamped F
42”
V3010-2G
AM2 / 2H Injector Assembly G
Stamped G
48”
