Page 29

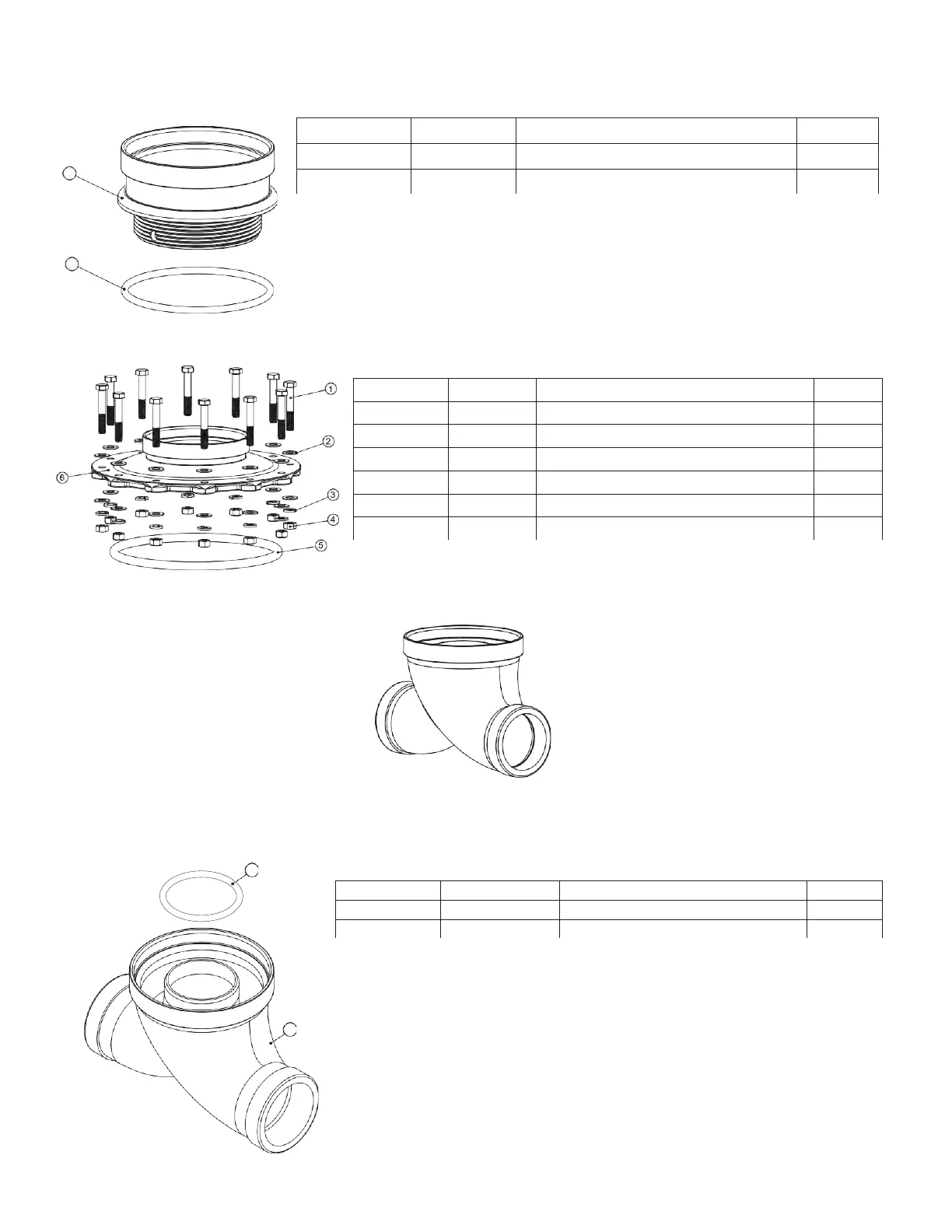

Drawing No. Orde
r No. Description Quantity
1 V3202-01 AM2H BASE 1
2
V3419
O-RING 347
1
Drawing No.
Order No.
Description
Quantity
1
V3444
AM2H SCREW HEXCAP 5/16-18X2 SS
12
2
V3293
AM2H WASHER SS 5/16 FLAT
24
3
V3445
AM2H WASHER SPLIT LOCK 5/16 SS
12
4 V3447 AM2H NUT HEX 5/16-8 FULL SS 12
5 COR60FL O RING 6 FLANGE ADAPTER 1
6
V3261-01
AM2H FLANGE BASE
1
Drawing No.
Order No.
Description
Quantity
1
V3280
O-RING 332
1
2
V3260BSPT-01
AM2H SIDE MOUNT BASE BSPT
1
1
2
1
V3064 AM2H/2QC 4 INCH BASE ASY
V3055 AM2H/2QC FLANGE BASE ASY
V3260-02 AM2H/2QC SIDE MOUNT BASE NPT
V3260BSPT-02 AM2H/2QC SIDE MOUNT BASE BSPT ASY
When using a side mount base with 2H or 2QC BSPT valves replace distributor pilot
O-ring V3452 O-RING 230 with V3280 O-RING 332. See exploded view of 2H or 2QC
valve for specific location of distributor pilot O-ring.
2
