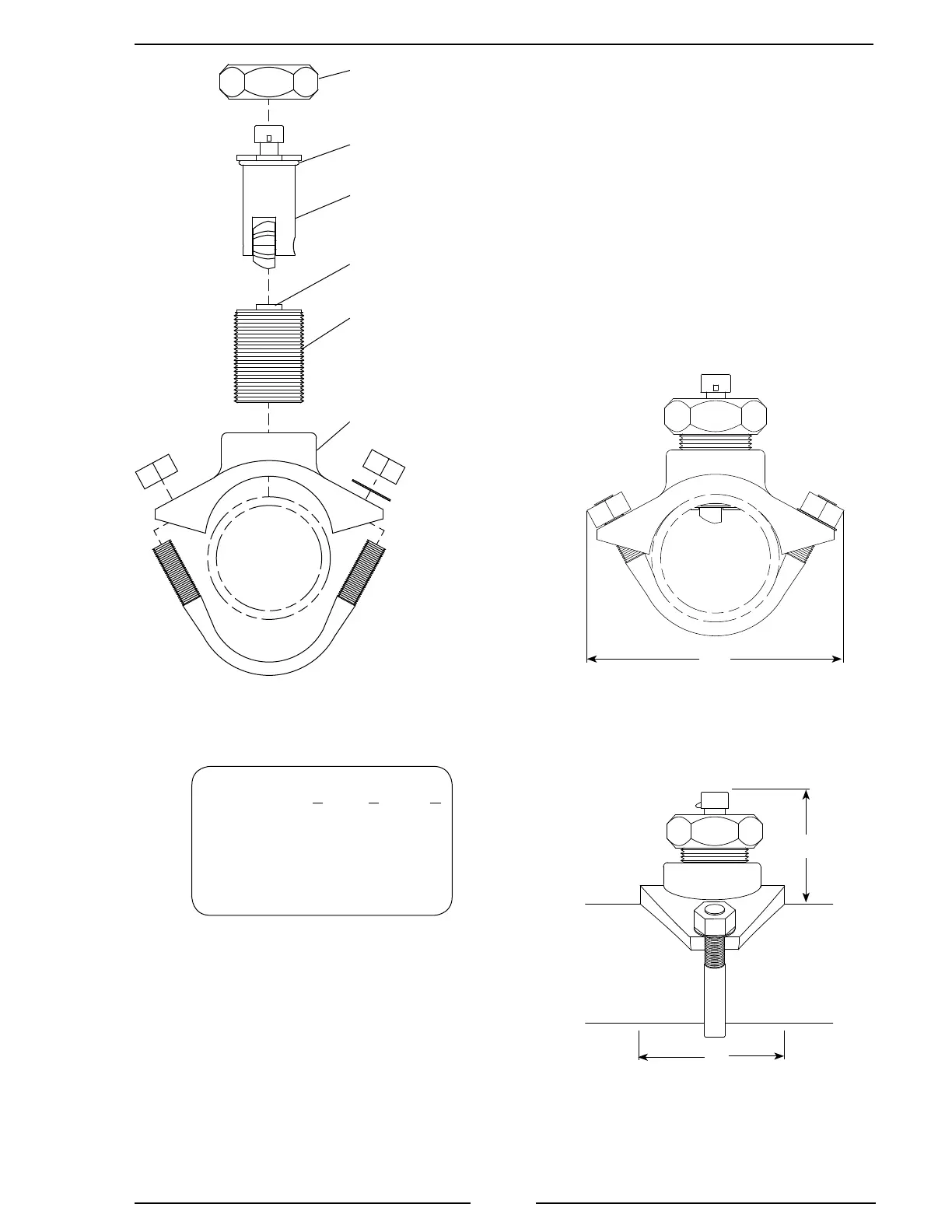

Figure 4. Saddle Clamp Installation
Note: Allow a minimum of
2 inches clearance above the
sensor for connector removal/
installation.
Note: When the retainer cap is
tightened make sure the ow
sensor engages the alignment
tab and does not rotate.
Note: Dimensions are typical and are an aid to
determine ow sensor mounting locations.
Pipe Size Dimensions
(Sch 40) A B C
2 5.5 3.9 2.9
2.5 5.5 3.9 2.8
3 5.9 3.9 2.8
3.5 6.8 4.3 2.8
4 6.8 4.3 2.8
5 8 4.3 2.8
Measurements are in inches.
A
C
B
Retainer
Cap
O-Ring
Paddlewheel
Flow Sensor
Sensor
Housing
Saddle
Clamp
Alignment
Tab
