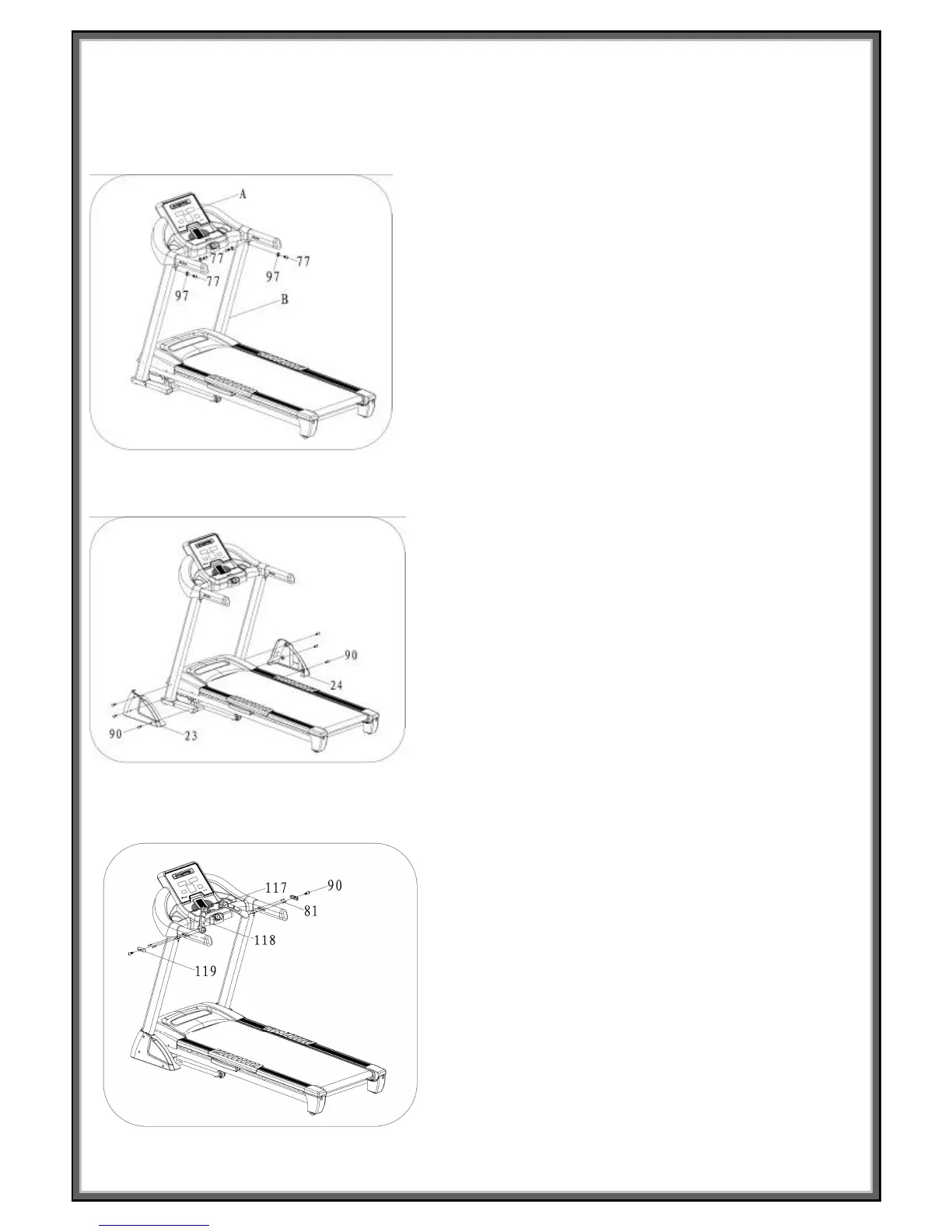

ASSEMBLY STEP 4:
ASSEMBLY STEP 5:
ASSEMBLY STEP 6:
Use the 5# Allen wrench (32) and M8*15
bolt (77) and lock washer (97), lock the
console (A) onto the left and right upright
tube (B).
Fix the Left & Right upright tube covers
(23,24) to the base frame by using
wrench w/screw driver (33) and M5*12
bolt (90).
1.Fix the Left & Right bars(118,117) to
the console by using 5# Allen
wrench(32) and M8*50 bolt (124).
2. Fix the bolt cover (119) to the console
by using wrench w/screw driver (33) and
M5*12 bolt (90).
To Next Page
