4
Assembly Tools:
#5 ALLEN WRENCH: 5mm 1pcs.
COMBINATION WRENCH W/SCRW DRIVER: 13mm, 14mm, 15mm 1pcs.
Notice: Do not power up the unit before assembly is complete.

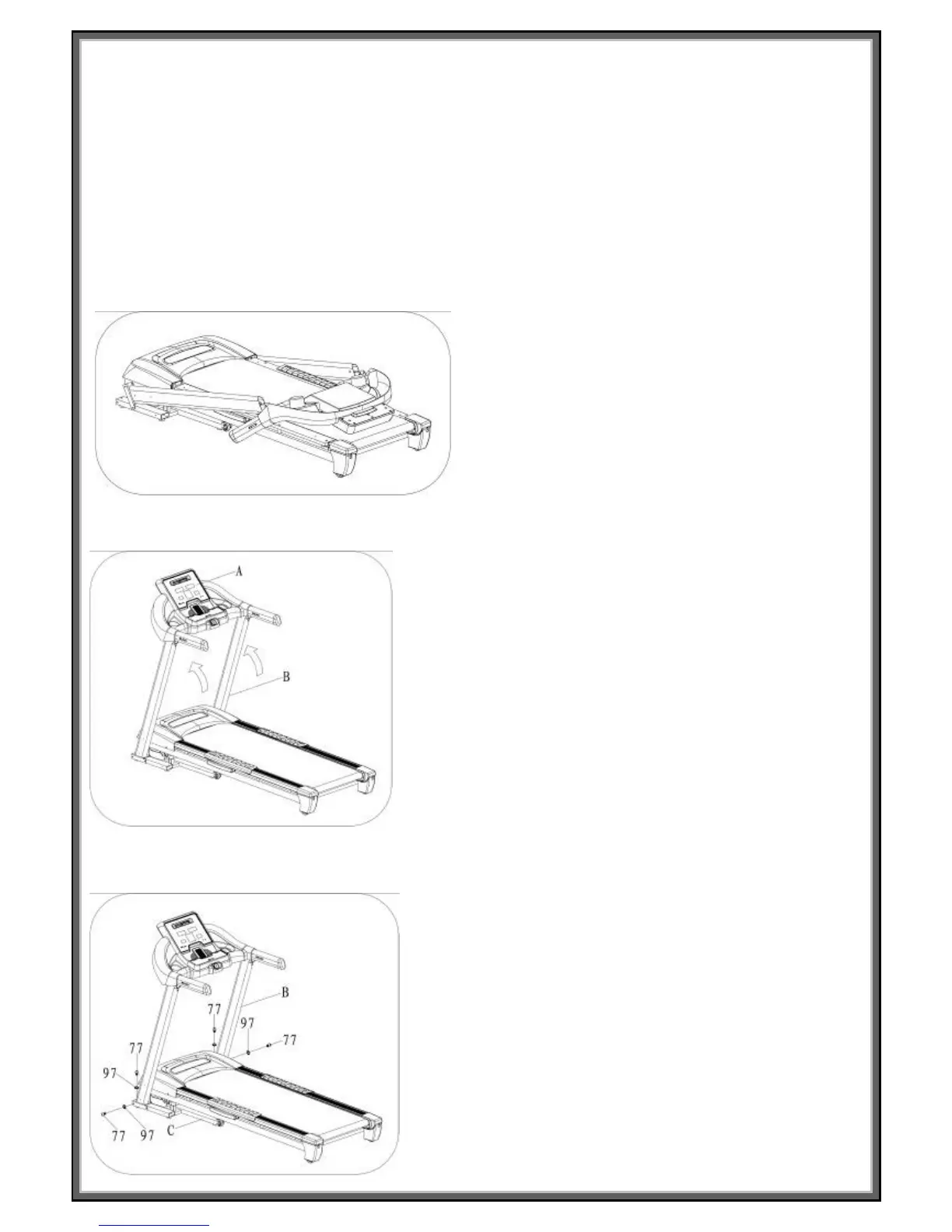

ASSEMBLY STEP 1：
ASSEMBLY STEP 2：
ASSEMBLY STEP 3:
Lift up the Console (A) and upright
supports (B) in the direction indicated
by the arrows.
Note: Be careful when putting the
Console in place. There are wires
running through the uprights when lifting
the assembly ensure the wire is not
being pinched. Hold uprights to prevent
the console falling until it has been
secured as per step 3
Use the 5# Allen wrench (32) and
M8*15 bolt (77) and lock washer (97),
lock the upright tube (B) onto main
frame.
To Next Page
