12

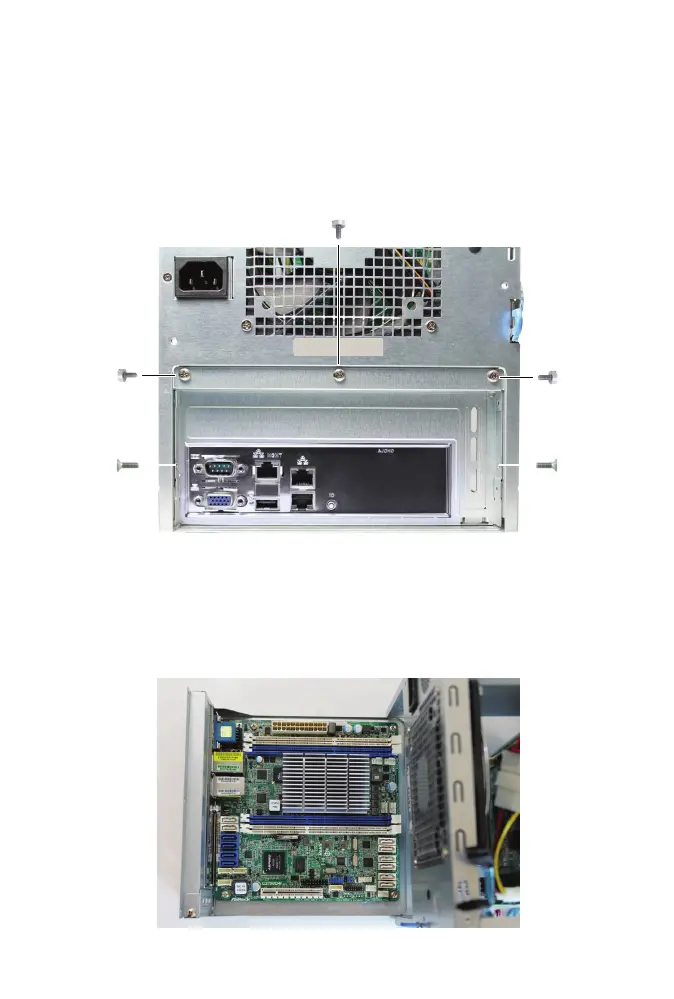

MOTHERBOARD TRAY REMOVAL
Remove the three motherboard tray back panel screws, and the two inside
edge screws.
4 5
1
3
2
Gently lift and slide the motherboard tray out of the chassis.
