26

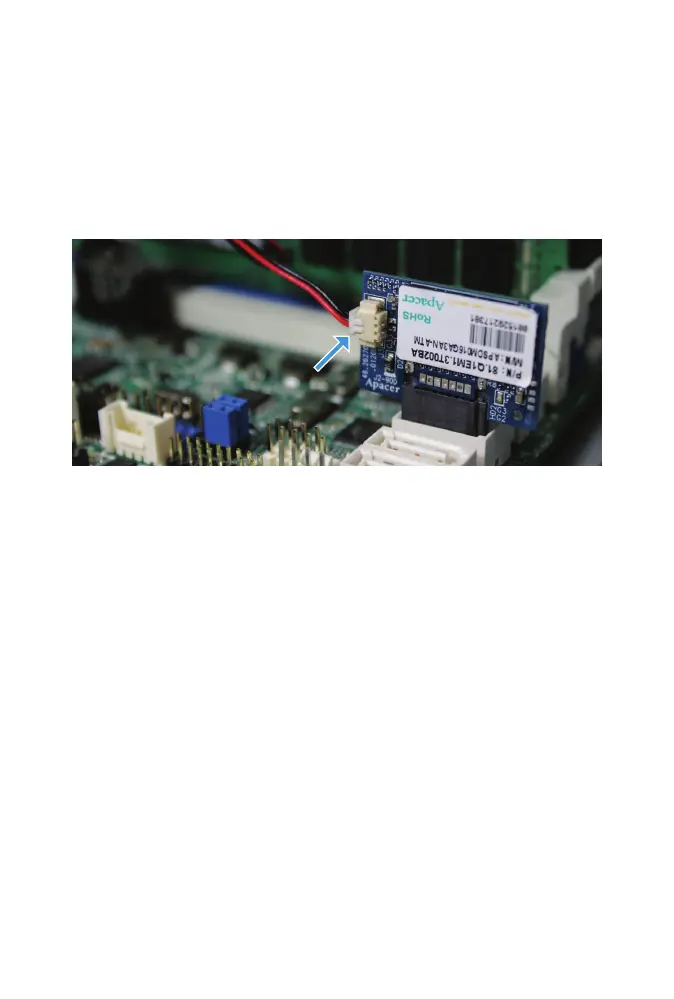

SATADOM POWER CONNECTION
Gently insert the SATADOM power cable with the black wire on top and
the red wire on the bottom. The power connector is polarized and only ts
this way.
