SGC ROTARY SCREW COMPRESSOR
INSTALLATION
HOLDING CHARGE AND STORAGE
SGC/SGX compressors are pressure and leak tested at the
Johnson Controls–Frick factory and then thoroughly evacu-
ated and charged with dry nitrogen to ensure integrity dur-
ing shipping and short term storage prior to installation.
All compressors must be kept in a clean, dry location to
prevent corrosion damage. Compressors that will be stored
for more than two months must have their nitrogen charge
checked periodically (see pages in GENERAL INFORMATION
for complete instructions).
WARNING
Holding-charge shipping gauges (if mounted) are rated
for 30 psig and are for checking the shipping charge
only. They must be removed before pressure testing
and operating the system. Failure to remove these
gauges may result in catastrophic failure of the gauge
resulting in serious injury or death.
CAUTION
THIS EQUIPMENT HAS BEEN PRESSURIZED WITH
NITROGEN GAS. TEMPORARY VALVES & GAUGES
HAVE BEEN INSTALLED.
1. RELIEVE PRESSURE PRIOR TO OPENING LINES OR
MAKING FIELD CONNECTIONS.
2. REMOVE CHARGING VALVES OR GAUGES PRIOR
TO PRESSURIZING SYSTEM.
3. REFER TO INSTALLATION OPERATION AND MAIN-
TENANCE MANUAL FOR ADDITIONAL INFORMA-
TION.
ESCAPING GAS MAY CAUSE INJURY
RIGGING AND HANDLING
The compressor can be moved with rigging, using a crane
or forklift, by hooking into the two lifting rings at each end
of the main housings. The compressor lifting rings shall only
be used to lift the compressor itself. See Figures 10 - 12.

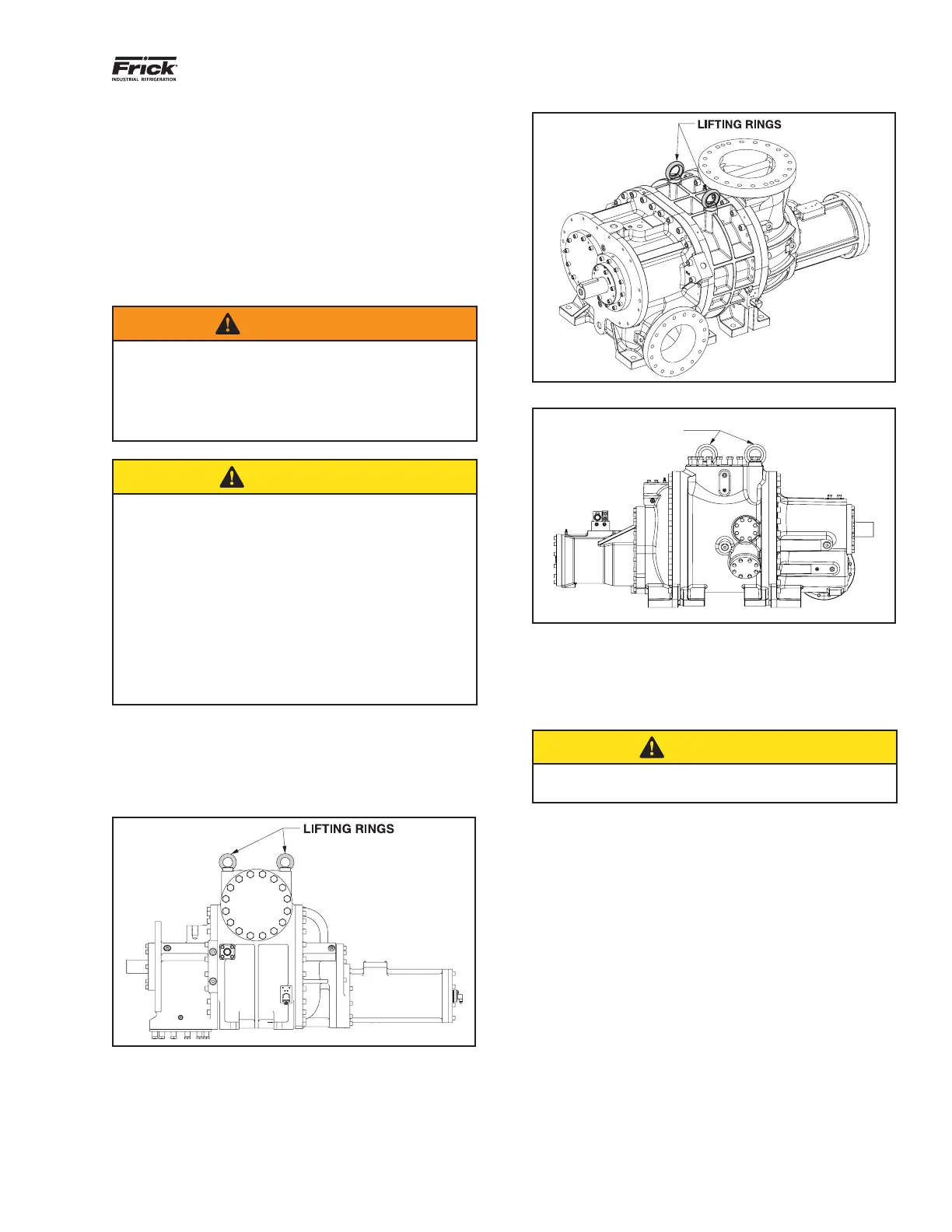

Figure 10. Lifting Rings, 1913-2824
Figure 11. Lifting Rings, 3511-3524
LIFTING RINGS
Figure 12. Lifting Rings, 4013-4021
FOUNDATION
Each SGC Rotary Screw Compressor is shipped mounted on
a wooden skid, which must be removed prior to unit
installation.
CAUTION
Allow proper spacing for servicing (see Dimensional
Outline Drawing).
Therstrequirementofthecompressorfoundationisthat
it must be able to support the weight.
SGC 1913 1,830 lb SGC 3511 8,525 lb
SGC 1918 2,050 lb SGC 3515 9,000 lb
SGC 2313 2,690 lb SGC 3519 9,500 lb
SGC 2317 2,990 lb SGC 3524 10,000 lb
SGC 2321 3,115 lb
SGC 2813 4,505 lb SGX 4013 14,100 lb
SGC 2817 4,585 lb SGX 4018 15,700 lb
SGC 2821 6,030 lb SGX 4021 16,730 lb
SGC 2824 6,440 lb
Screw compressors are capable of converting large
quantities of shaft power into gas compression in a relatively
small space. The compression process creates relatively
highfrequencyvibrationsthatrequiresufcientmassinthe
base to effectively dampen them.
