070.250-IOM1 (NOV 2013)
Page 11
TDS_ Rotary Screw Compressor
Installation

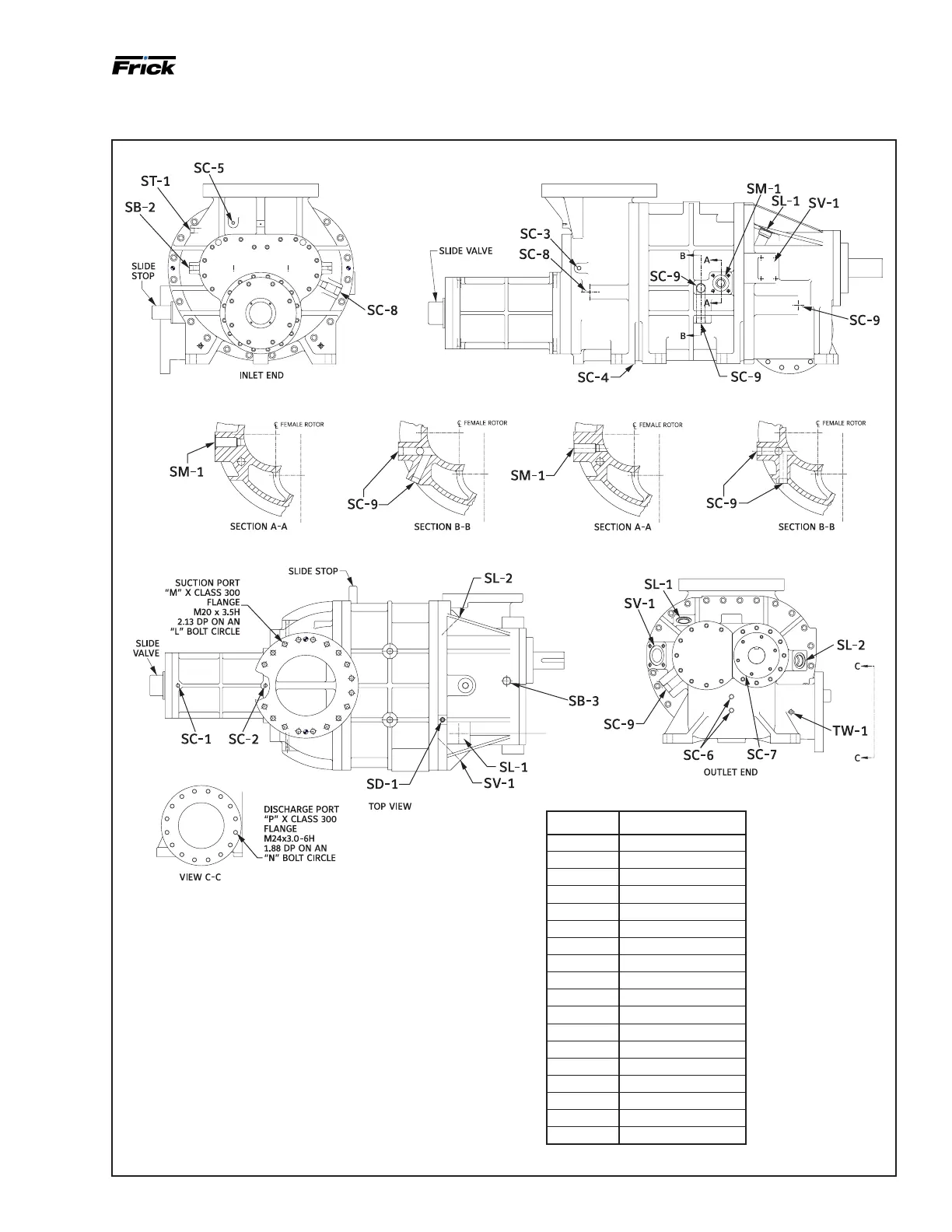

Figure 6: Compressor port locations, TDS_ 355
Symbol Size
SB-2 3/4-14 NPTF
SB-3 1½-11½ NPTF
SC-1 1/2-14 NPTF
SC-2 1/2-14 NPTF
SC-3 1/2-14 NPTF
SC-4 1/2-14 NPTF
SC-5 3/8-18 NPTF
SC-6 3/4-14 NPTF
SC-7 1/8-27 NPTF
SC-8 1¼-11½ NPTF
SC-9 1½-11½ NPTF
SD-1 1 1/16-12 UN-2B
SL-1 2½-12 NPTF
SL-2 2½-12 NPTF
SM-1 2" FLANGE
ST-1 3¼-14 NPTF
SV-1 3 in. FLANGE
TW-1 3/4-14 NPTF
