TDS_ Rotary Screw Compressor
Installation - Operation - Maintenance
Additional Remarks:
R = Remanufactured;
R1 = Rebuild;
R2 = Rebuild Plus;
 Z =DeviationfromStandardConguration.
The name plates in Figure 2 show which refrigerants are
compatible with the compressor as manufactured.

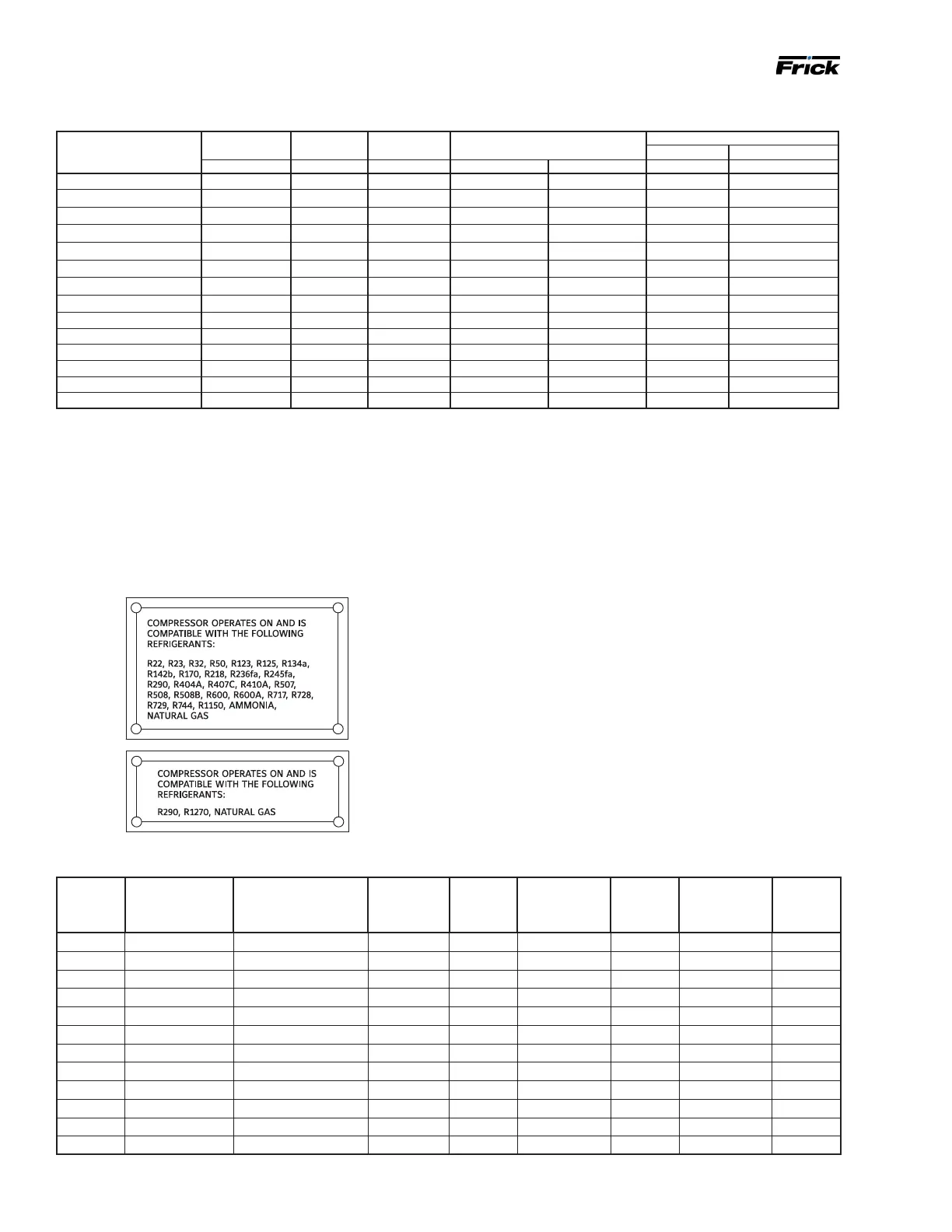

Figure 2: Refrigerant name plates
Long-term storage
Long term storage (6 months to 5 years) provisions are re-
quired, regardless of storage environment, if start-up and/
or useful operation does not occur within six (6) months of
equipment shipment. Special provisions may be required
for storage of less than six (6) months if the storage area
is subject to unusual environment such as high humidity,
large changes in temperature, dusty atmosphere, etc.
The standard Johnson Controls-Frick Warranty for an
TDS_ screw compressor covers twelve (12) months from
start-up or 18 months from shipment, whichever comes
rst.Itisrecommendedthatarrangementsbemadewith
the local Johnson Controls-Frick service organization
(arranged through factory service) regarding surveillance
and maintenance during the storage period. It will be
the customer’s responsibility to submit a monthly report
showing the condition of the unit and noting any discrep-
ancies to the guidelines listed herein. Failure to comply
with this Long Term Storage Recommendation may void
the warranty.
Compressor model Rotor
diameter
Rotor Max speed Geometrical swept volume,
drive shaft end
Displacement
3550 rpm 2950 rpm
mm L/D rpm ft³/rev m³/rev cfm m³/h
TDSH 163S 163 1.35 4,500 0.10069 0.002849 357 504
TDSH 163L 163 1.7 4,500 0.12679 0.003588 450 635
TDSH/TDSL 193S 193 1.35 4,500 0.16653 0.004713 591 834
TDSH/TDSL 193L 193 1.8 4,500 0.22204 0.006284 788 1,112
TDSH/TDSL 233S 233 1.35 4,500 0.29301 0.008292 1,040 1,468
TDSH/TDSL 233L 233 1.7 4,500 0.36897 0.010442 1,310 1,848
TDSH 233XL 233 2.1 4,500 0.45580 0.012899 1,618 2,283
TDSH/TDSL 283S 283 1.35 4,200 0.52501 0.014858 1,864 2,630
TDSH/TDSL 283L 283 1.7 4,200 0.66115 0.018711 2,347 3,312
TDSH 283SX 283 2.1 4,200 0.79546 0.022512 2,824 3,985
TDSH/B 355S 355 1.1 4,200 0.89858 0.025430 3,190 4,501
TDSH/B 355L 355 1.5 4,200 1.12154 0.031739 3,981 5,618
TDSH/B 355XL 355 1.9 4,200 1.42748 0.040398 5,068 7,150
TDSB 355U 355 2.4 4,200 1.80328 0.051033 6,402 9,033
Table 2: Compressor and packaged equipment storage log
Model Serial no. Compressor* shaft
rotation 1½ turn
Rotor
housing
charge
Charge
added
Visual
inspection
per QAI-3
Charge Checked by Date
*Compressor, Motor, Oil Pump and Refrigerant Pump
Table 1: Geometrical swept volume
