070
.250-IOM1 (NOV 2013)
Page 9
TDS_ Rotary Scr
ew Compressor
Installation

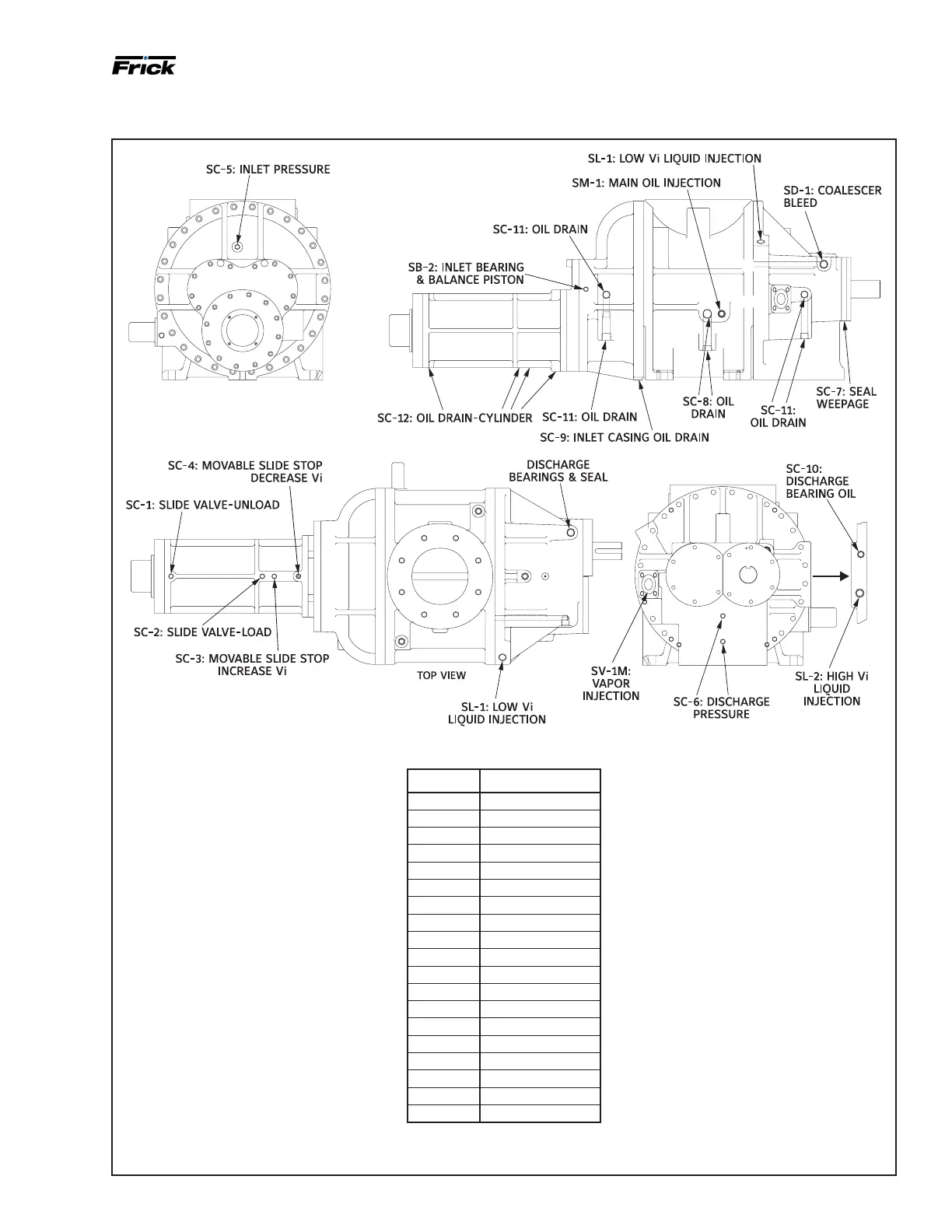

Figure 4: Compr
essor port locations, 233
Symbol
Size
SB-2
3/8-18 NPTF
SB-3
3/4-14 NPTF
SC-1
3/8-18 NPTF
SC-2
3/8-18 NPTF
SC-3
3/8-18 NPTF
SC-4
3/8-18 NPTF
SC-5
3/8-18 NPTF
SC-6
3/8-18 NPTF
SC-7
1/8-27 NPTF
SC-8
1-11½ NPTF
SC-9
3/8-18 NPTF
SC-10
3/4-14 NPTF
SC-11
3/4-14 NPTF
SC-12
3/8-18 NPTF
SD-1
1 1/16-12 UN-2B
SL
-1
3/4-14 NPTF
SL
-2
3/4-14 NPTF
SM-1
3/4-14 NPTF
SV-1M
1½ SQ ange
8
10
Table of Contents
Table of Contents
2
General Information Preface
3
Design Limitations
3
Job Inspection
3
Standard Bare Compressor
3
Transit Damage Claims
3
Compressor Identification
3
Long-Term Storage
4
Preparing Compressor for Storage
5
Maintaining Compressor
5
Description
5
TDS_ Compressor
5
Compressor Lubrication System
5
Oil Pump
6
Construction Details
6
Installation
7
Design Limits
7
Outline Dimensions
7
Holding Charge and Storage
12
Rigging and Handling
12
Lifting Instructions
12
Foundation
12
Customer Connections
13
Oil System Requirements
13
Oil Selection
13
Oil Pressure
13
Oil Cooling Requirements
13
Oil Filters
14
Oil Pump
14
Oil Heaters
14
Compressor Oil
14
Compressor
14
Motor Mounting (Foot Mounted Only)
14
Compressor/Motor Coupling Requirements
14
Coupling Alignment Requirements
14
Coupling Alignment Procedure
15
Hot Alignment of Compressor/Motor
15
SV Position Potentiometer
15
Replacement and Adjust Ment
15
Volumizer Potentiometer
16
Replacement and Adjustment
16
Compressor Hydraulic System
16
Volumizer Volume Ratio Control
17
VI Increase
17
VI Decrease
17
Low Ambient Operation
17
Balance Piston Pressure Regulator for TDSH 355 Compressors
17
Operation
18
Operation and Start-Up Instructions
18
Initial Start-Up
18
Initial Start-Up Procedure
18
Normal Start-Up Procedure
18
Maintenance General Information
19
Normal Maintenance Operations
19
General Maintenance
19
Changing Oil
19
Recommended Maintenance Program
20
Vibration Analysis
20
Oil Quality and Analysis
20
Maintenance Schedule
20
Operating Log
21
Troubleshooting Guide
21
Abnormal Operation Analysis and Correction
21
Bare Compressor Replacement
21
Shutdown Due to Improper Oil Pressure (High-Stage and Booster)
22
Troubleshooting the TDS_ Compressor (Frick RWB II Package)
22
Troubleshooting the Hydraulic System
22
Troubleshooting the Oil Pump and System
23
Read this First: Compressor Prestart Checklist
24
Vibration Data Sheet
26
