Friedrich FPWC1 - Refrigerant Cycle 24 K Outdoor Units

47 PB
SPECIFICATIONS
Refrigerant Cycle 24k Outdoor Units
E
CS
D
1
2
3
5
6
7
8
11
12
10
4
9
1
List of components
7
Compressor
Coil temperature sensor
2 8
Defrost temperature sensor
3 9
Ambient temperature sensor temperature sensor
4 10
Electronic expansion valve
Suction temperature sensor
5
11
valve
Stop valve (Liquid)
6 12
Stop valve (Gas)

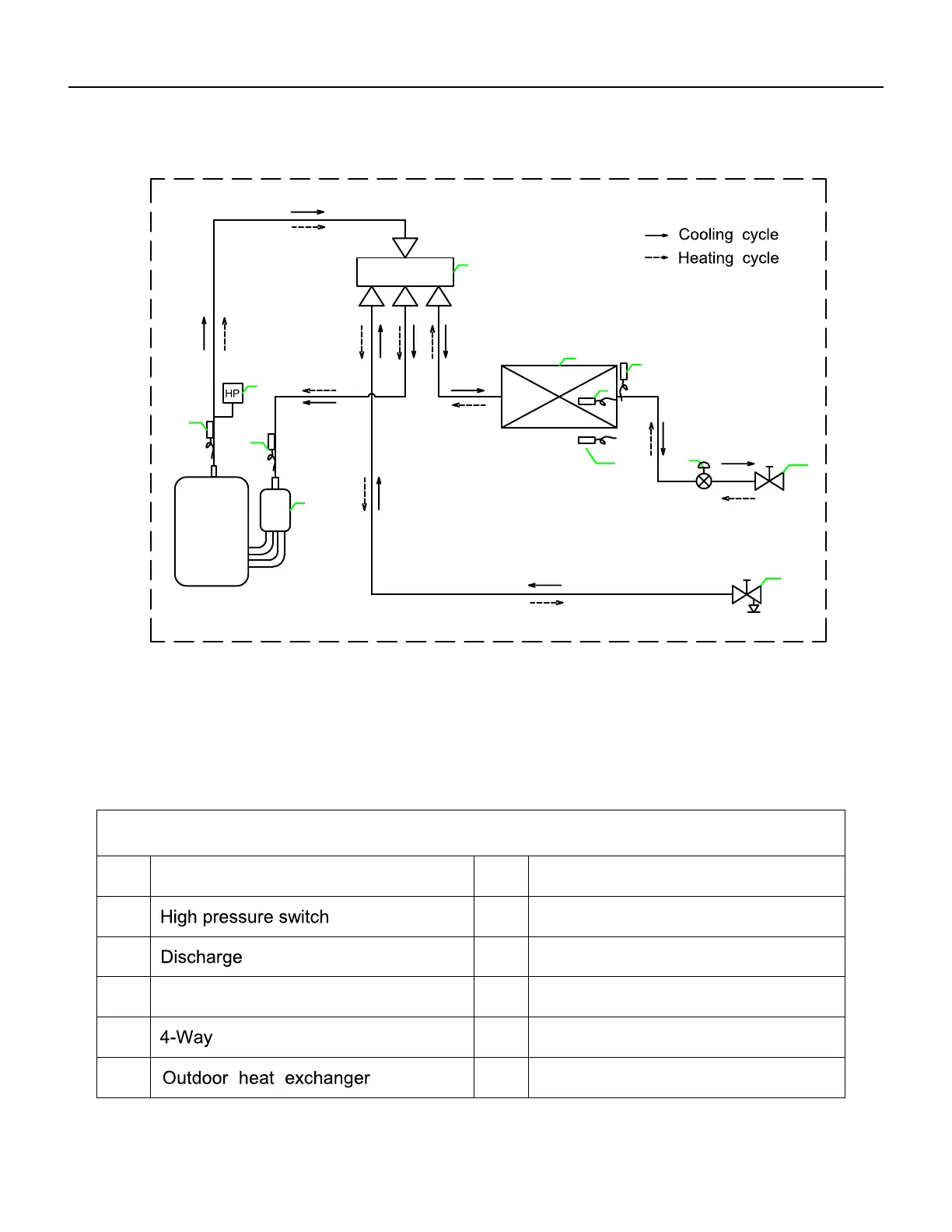

Figure 233
