10
920-007-13
Wall preparation
STEP 1 The wall opening required for a WSC SLEEVE is 17 ¼"
high by 27 ¼" wide.
STEP 2 LINTELS must be used in opening of brick veneer and
masonry walls to support the material above the WSC
SLEEVE. The following considerations should also be given:

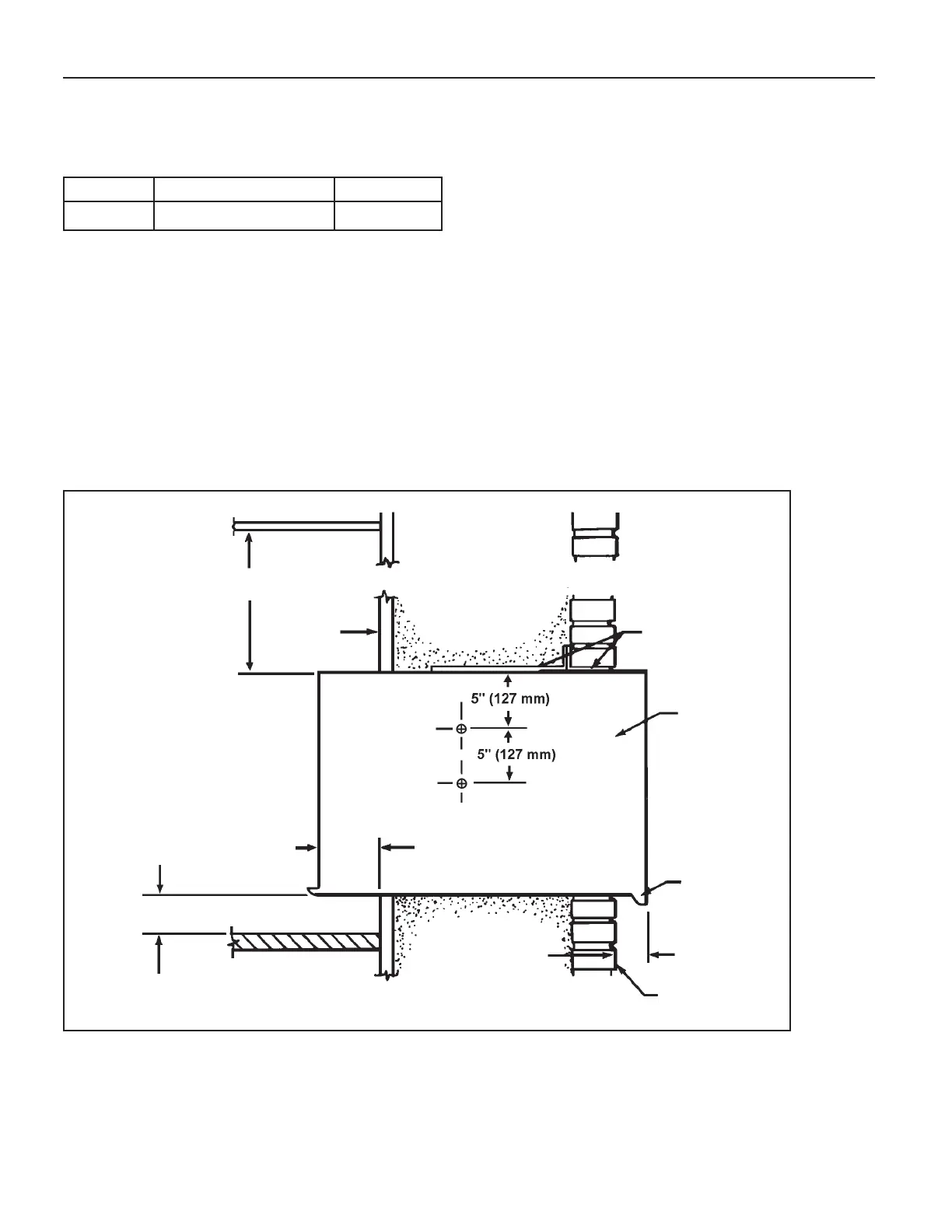

Installation instructions for WSC sleeve
Outside Wall
1" Minimum
3 ½" For Subbase
Inside Wall
Minimum Of 1" Spacing
Required On All Sides
Of The Unit.
⅞" Minimum Beyond Inside
Wall
9
⁄
16
" Minimum
Beyond Outside
Wall
Drain
Extension
Minimum Of 24" Required
From Top Of Unit To Ceiling.
Lintels
WSC Sleeve
Figure 7
ITEM NO. DESCRIPTION QTY.
1 SCREW, #12A x 2" 5
Mounting hardware provided
A. Adjustable SUBBASE (SB) or other unit support must be provided
for panel wall type construction and for walls less than 8" thick.
B. A minimum distance of 1" must be allowed on all sides of the unit
to adjacent wall and oor. Where the subbase is required, the
minimum distance from the oor to the sleeve must be 3 ½". To
minimize chances of short cycling of the compressor, the minimum
clearance between the ceiling and the top of the unit should be
24". (See Figure 8).
