How to change airflow direction
The DISCHARGE GRILLE is installed at the factory to provide 45˚
upward airow into the room. (Direction 1 in Figure 5). If a vertical
airow is desired (Direction 2), the direction can be changed by rotating
the DISCHARGE GRILLE.
Unplug the air conditioner.
Remove the DISCHARGE GRILLE RETAINER attached with one
screw in the right side of the grille.
Remove the DISCHARGE GRILLE from the retaining slots near the
CONTROLS, and rotate the grille as shown in Figure 5.
Reinstall the DISCHARGE GRILLE by placing it in its retaining slots.
Reattach the DISCHARGE GRILLE RETAINER with the retaining
screw. The unit is now ready to operate.
How to cover inner weather panel holes
Two beige plugs are included in the plastic bag taped to the WallMaster
chassis. These plugs may be used to cover the two holes left after
removing the inner weather panel (see Figure 5). The plugs must be
attached before the DECORATIVE FRONT frame is installed.
Electrical requirements
IMPORTANT: Before you begin the actual installation of your air
conditioner, check local electrical codes and the information below.
Your air conditioner must be connected to a power supply with the same
AC voltage and hertz rating as marked on the nameplate located on
the chassis. Only alternating current (AC) can be used. Consult pages
3 and 7 for the correct type of receptacle for your model.
An overloaded circuit will invariably cause malfunction or failure of an
air conditioner, therefore, it is extremely important that the electrical
power and the wiring is adequate. Consult your dealer or power
company if in doubt.
CIRCUIT PROTECTION - Before installing or relocating your
Friedrich Room Air Conditioner, check the amp rating of the circuit
breaker or "TIME-DELAY" fuse. Refer to the nameplate located on
the air conditioner chassis to determine the correct fuse or circuit
breaker amperage for your model. The rating MUST NOT exceed
the value stated on the nameplate. If the air conditioner is connected
to a circuit protected by a fuse, a "TIME-DELAY" fuse must be
used due to the momentary high current demands when your air
conditioner is started.
Return
A
ir Grille
Decorative
Front
WSC
Sleeve
AB123456C3
567
MODEL# WS0 7A10B
Airflow
Rotate
Discharge
Grille
1"
Diameter
1" Diameter Plug
1
1
1
2
2
2

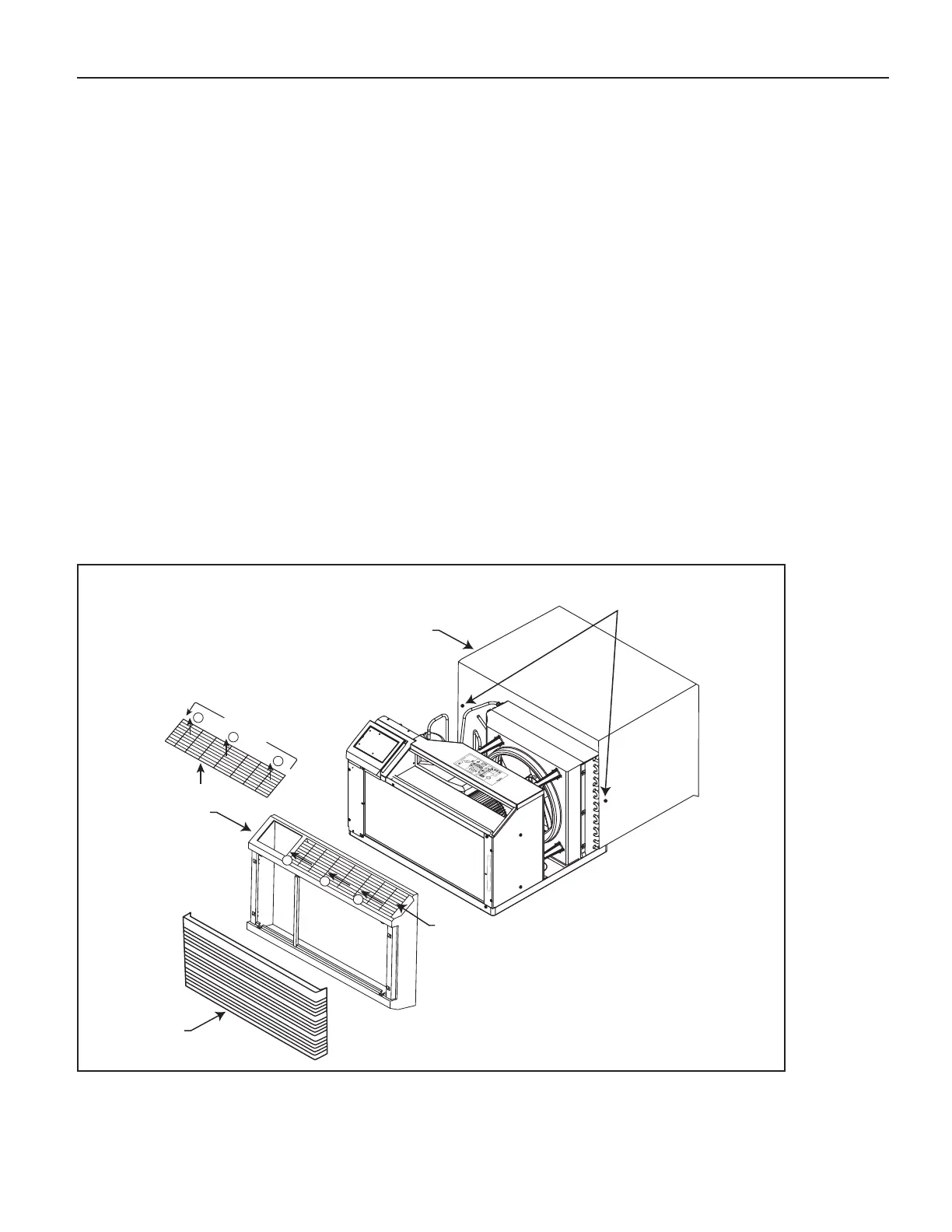

Figure 5
