1. Put the white O-ring on the out of the upper part of outdoor sensor array
for protection against moisture or water penetrated inside
2. Mounting on a pole as Figure 4. Make sure the mounting pole is
vertical, or very close to it. Use a level as needed.
Note: Supports poles 1” OD

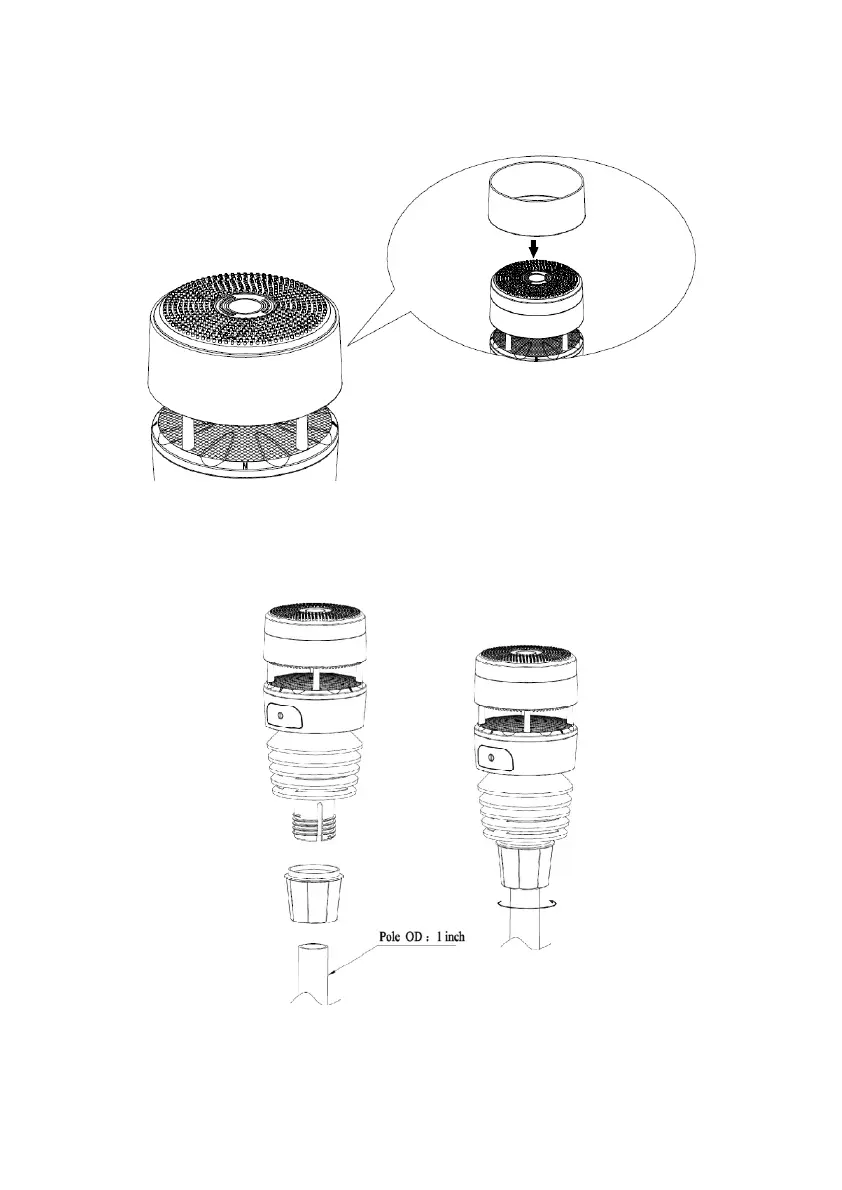

Figure 4: Sensor mounting diagram
