11
flash onceevery 16 seconds (the sensor transmission update period).
5.2.1. Install U-bolts and mounting pole
Installation of the U-bolts, which are in turn used to mount the sensor
package on a pole, requires installation of an included metal plate to
receive the U-bolt ends. The metal plate, visible in Fehler!
Verweisquelle konnte nicht gefunden werden.1, has four
holes through which the ends of the two U-Bolts will fit. The plate itself is
inserted in a groove on the bottom of the unit (opposite side of solar
panel). Note that one side of the plate has a straight edge (which goes
into the groove), the other side is bent at a 90-degree angle and has a
curved profile (which will end up “hugging” the mounting pole). Once the

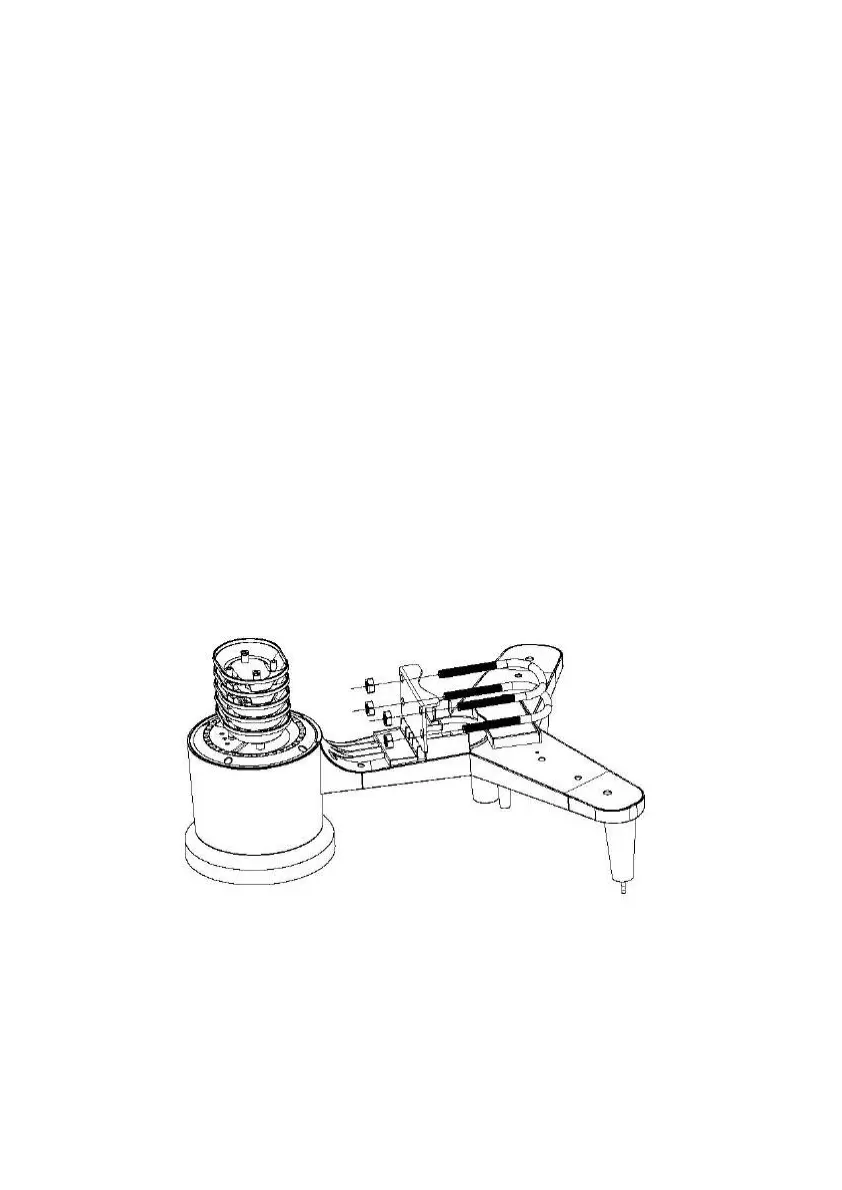

metal plate is inserted, remove nuts from the U-Bolts and insert both
U-bolts through the respective holes of the metal plate as shown in
Figure 8.
Loosely screw on the nuts on the ends of the U-bolts. You will tighten
these later during final mounting. Final assembly is shown in Figure 9.
Figure 1
