6.15 Diagnostics menu
Description
Command

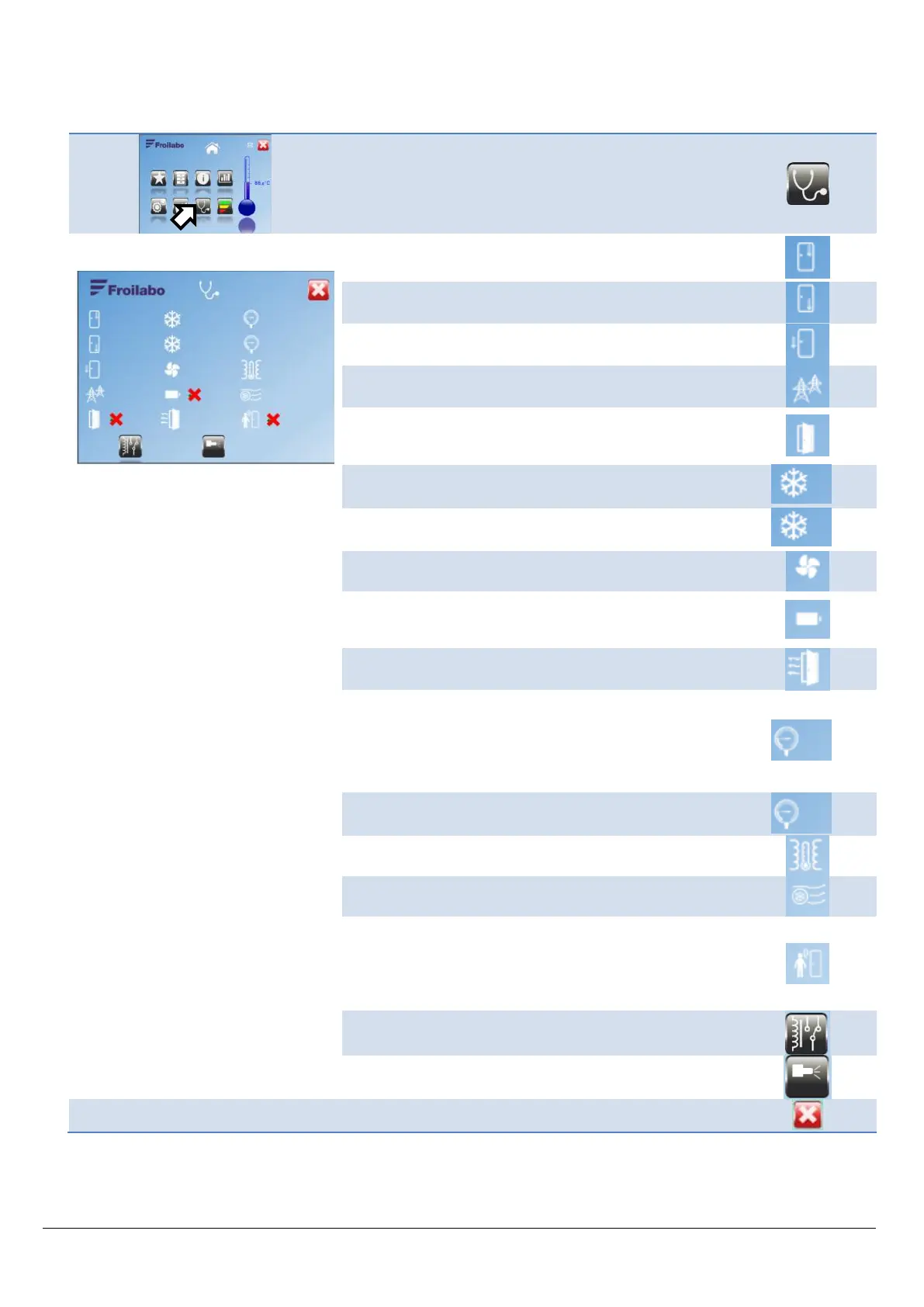

From the Home screen, access the Diagnostics menu.
Temperature of the top sensor.
Optional.
Temperature of the bottom sensor (analogue gauge).
Ambient temperature.
Optional.
Instantaneous power consumption (analogue gauge), in
Watts.
Door status sensor:
Green tick: door closed
Red cross: door open
Top compressor (H or CP2) control:
State of power contactor: ON/OFF
Bottom compressor (L or CP1) control:
State of power contactor: ON/OFF
Condenser fan control:
State of power contactor: ON/OFF
Battery low signal:
Green tick: battery charged
Red cross: battery discharged
Heating gasket control: ON/OFF
Default value: ON.
Top compressor (H) overpressure sensor:
Pressure value in bar.
Bottom compressor (L) overpressure sensor:
Pressure value in bar.
Temperature at intermediate condenser
Condenser fan flow measurement: percentage of
maximum flow measured in factory.
User presence detection:
Green tick: Movement is detected in front of the
keyboard.
Red cross: User not present or motionless in front of the
door.
Remote alarm relay test
CO
2
/ N
2
solenoid valve test
Return to previous menu
