Fronius Primo 4.0-1 User Manual

12
Pin 1 = measurement input: max. 20 mA, 100 Ohm measurement resistor (load imped-
ance)
Pin 2 = max. short circuit current 15 mA, max. open circuit voltage 16 V DC or GND
Wiring diagram variant 1: Signal contact for surge protection device
Depending on the setting in the Basic menu (Signal Input submenu), the DC SPD option
(surge protection device) either outputs a warning or an error on the display. Further infor-
mation on the DC SPD option can be found in the Installation Instructions.

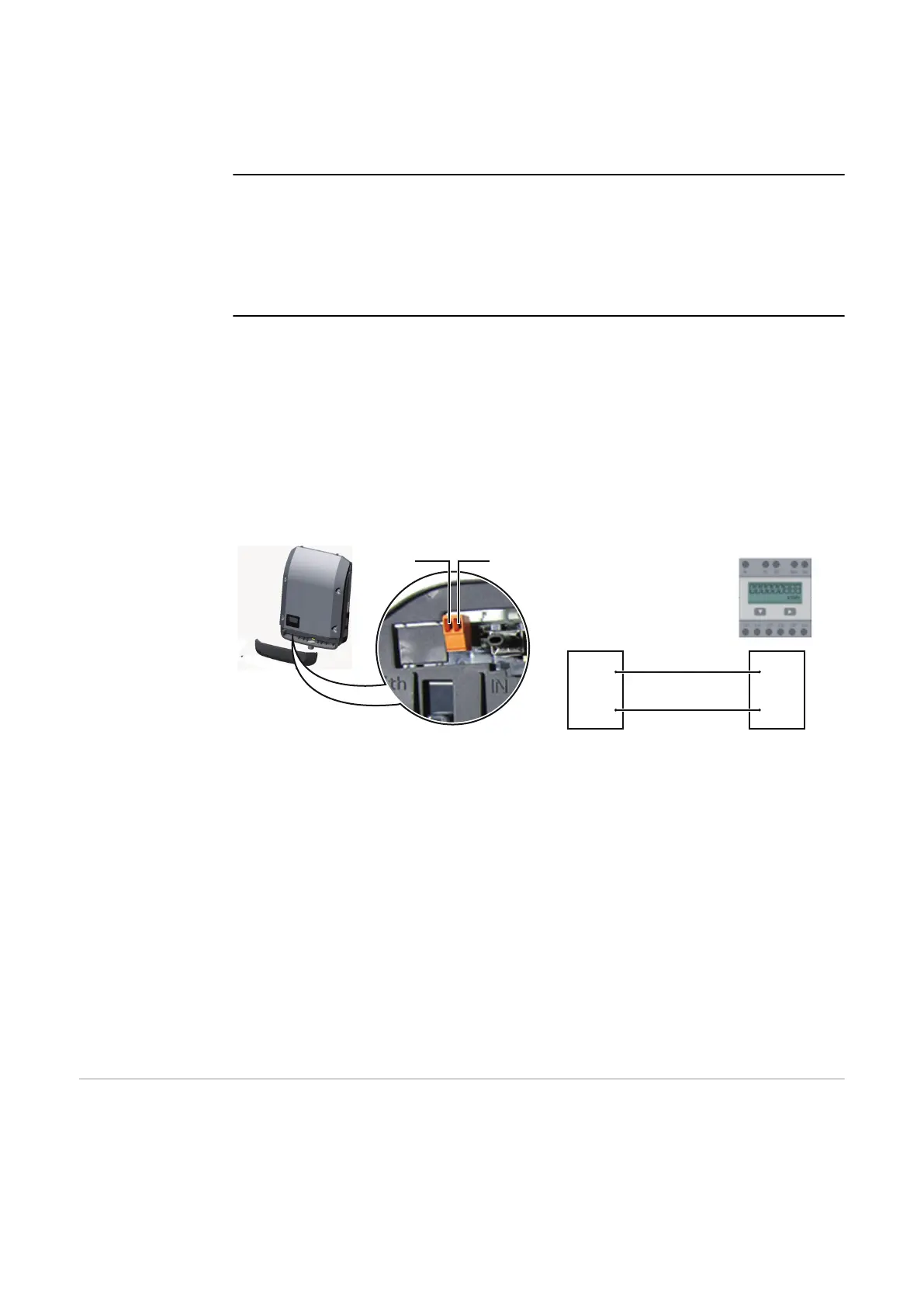

Wiring diagram variant 2: S0 meter
A meter for recording the self-consumption of each S0 can be connected directly to the in-
verter. This S0 meter can be positioned directly at the feed-in point or in the consumption
branch. As one of the settings on the Fronius Datamanager website, a dynamic power re-
duction can be set under the "EVU Editor" menu item (see Fronius Datamanager 2.0 Op-
erating Instructions on our website www.fronius.com)
IMPORTANT! In order to connect an S0 meter to the inverter, it may be necessary to up-
date the inverter firmware.
Requirements for the S0 meter:
- Must comply with the IEC62053-31 Class B standard
- Max. voltage 15 V DC
- Max. current when ON 15 mA
- Min. current when ON 2 mA
- Max. current when OFF 0.15 mA
Recommended max. pulse rate of the S0 meter:
Description of the
"Fronius Solar
Net" LED
The "Fronius Solar Net" LED is on:
the power supply for data communication within the Fronius Solar Net / interface protocol
is OK
PV output kWp [kW] Max. pulse rate per kWp
30 1000
20 2000
10 5000
≤ 5.5 10,000
Pin 1Pin 2
Pin 1
Pin 2 S0 +
S0 -

Fronius Primo 4.0-1 Specifications

General

Purpose	-
Output power	4000 W
Input voltage	80 - 1000 V
Output voltage	180 - 270 V
Input frequency	- Hz
Output frequency	50/60 Hz
Power supply type	Universal
Power current type	DC-to-AC
Output power capacity	4 kVA
Quantity per pack	1 pc(s)
Product color	Black, Grey
