WARNING!
Danger due to damaged and/or contaminated terminals.
This can result in serious injury and damage to property.
▶
Before making any connections, check the terminals for damage and contamination.
▶
Remove contamination in the de-energized state.
▶
Have defective terminals repaired by an authorised specialist.
PV generator -
general informa-
tion
2 independent PV inputs (PV 1 and PV 2) are available. These can be connected to a
different number of modules.
When using for the first time, set up the PV generator according to the respective config-
uration (also possible later in the “System configuration” menu under the “Components”
menu item).

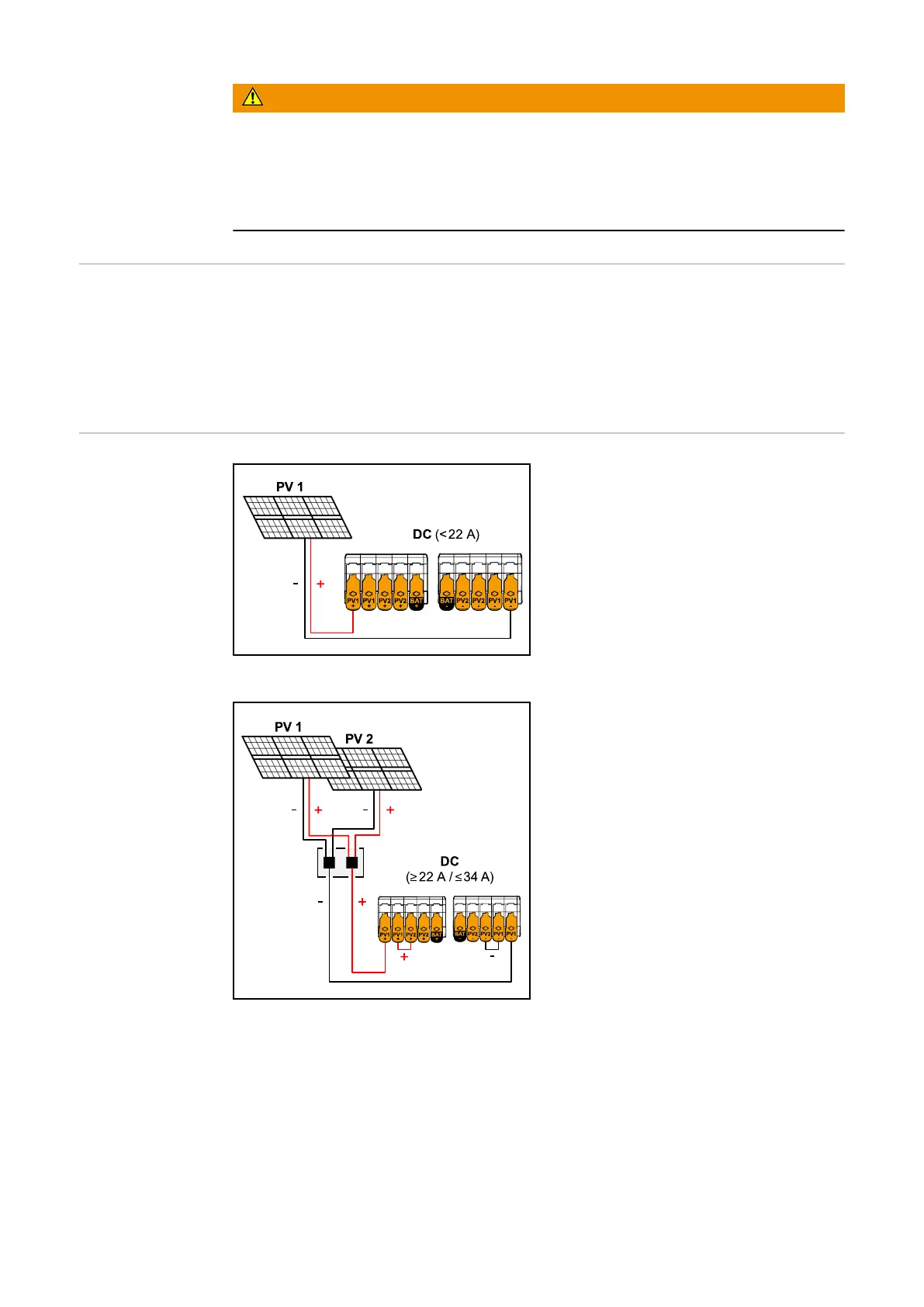

Multiple MPP
tracker configura-
tion 3-6 kW
Total current (I
dcmax
) less than 22 A
MPPT settings:
PV 1: ON
PV 2: OFF
Combined solar module strings with total current
(I
dcmax
) greater than or equal to 22 A
MPPT settings:
PV 1: ON
PV 2: ON
PV 1 + PV 2 (connected in parallel): ON
IMPORTANT!
Splitting the total current (I
dcmax
) by
bridging from PV 1 to PV 2 at the terminal
is permitted up to ≤ 34 A.
62
