86

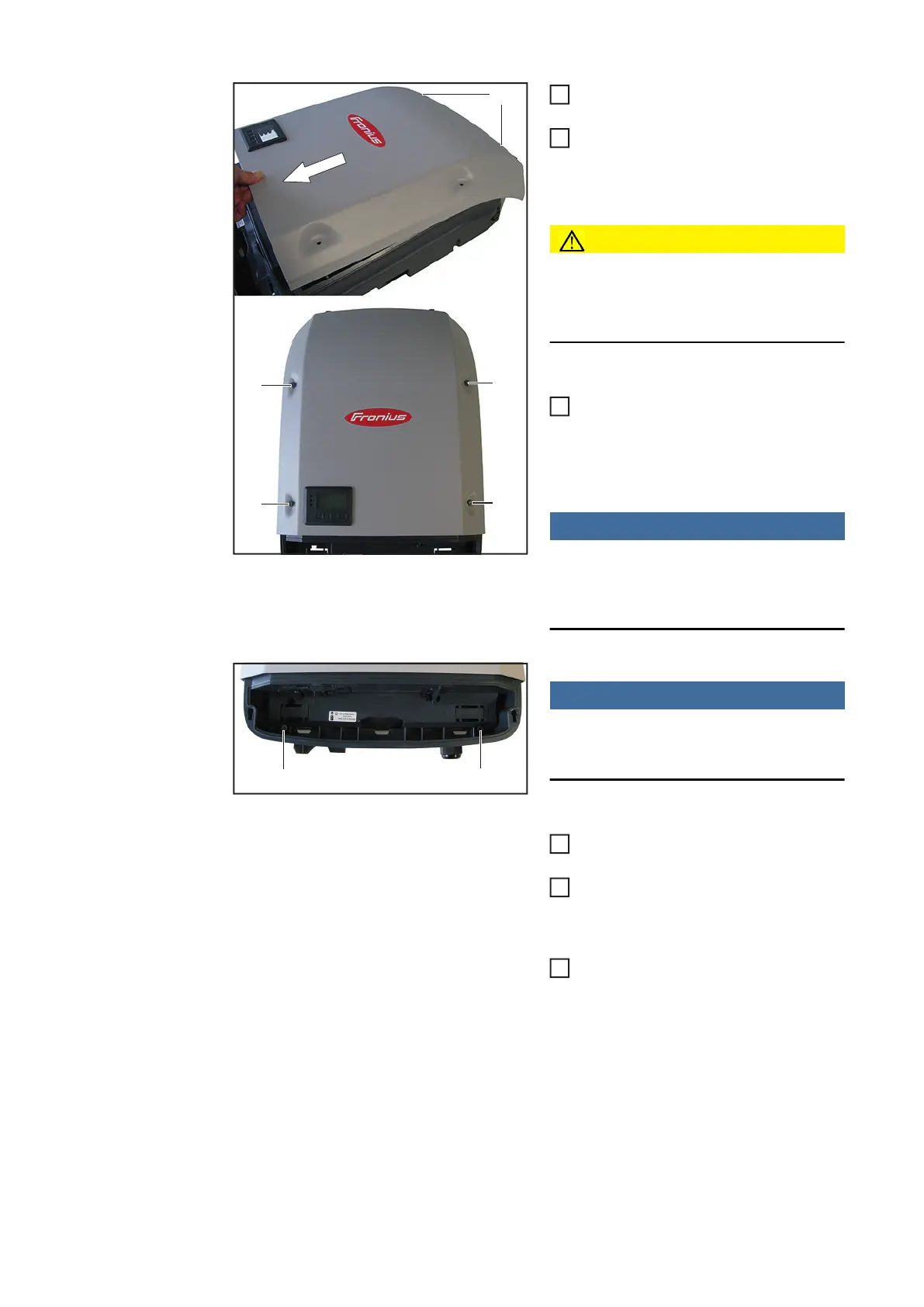

Hang the power stage set cover up on
the fastening pins (5)
While the device is still at an angle, pull
the power stage set cover down and
swivel onto the base frame
CAUTION!
This is the only way to ensure that the
seal foam is correctly positioned and
working properly
Mount power stage set cover using
four 5x18 TX25 screws including gas-
kets (4)
[2.5 Nm]
NOTE!
If the screws no longer grip properly,
replace them with 5x25 TX25 screws
[42,0401,4231]
NOTE!
To avoid damage to the base shell, the
inverter must not exceed an angle of 11°.
Attach the inverter at the top and allow
it to engage with the wall bracket
Using two 5x25 TX25 screws (3), fix to
the wall bracket securely
[2.5 Nm]
If applicable, mount all plug connec-
tions
(5)
(4)
(4)
(4)
(4)
2
3
4
(3) (3)
5
6
7
