Fronius TS 5kA-3 User Manual

1

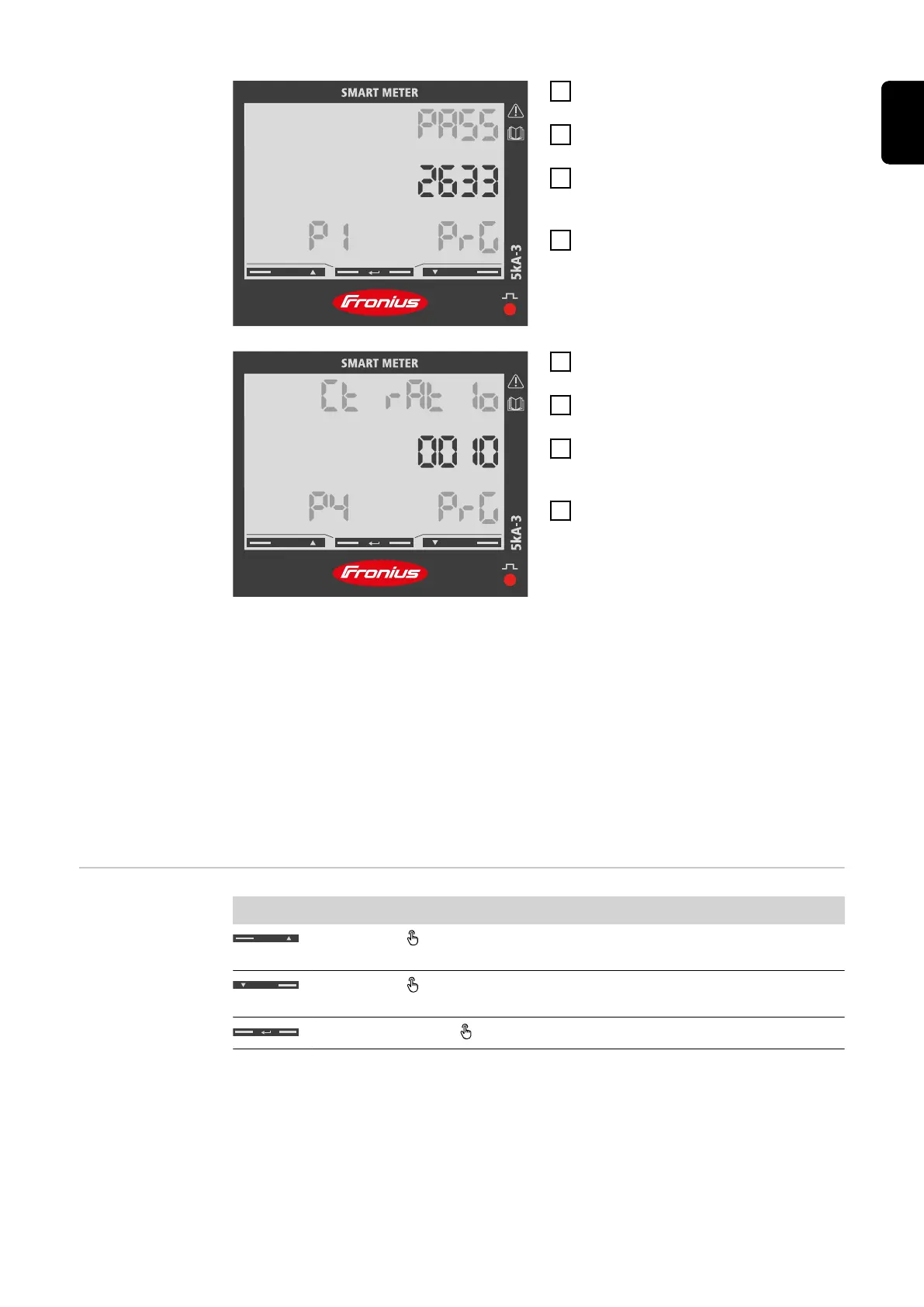

Press and hold "Enter" for 2
seconds.
2
Use "Up" or "Down" to access the
P1 screen.
3
Set password "2633" with "Up" and
"Down" and confirm each individual
value with "Enter".
4
Note down the password.
IMPORTANT!
The password cannot be reset.
1
Use "Up" or "Down" to access the
P4 screen.
2
Press and hold "Enter" for 2
seconds.
3
Set the transformation ratio with
"Up" and "Down" and confirm each
individual value with "Enter".
4
Press "Up" to access screen P18
and press and hold "Enter" for 2
seconds to exit the settings.
Ratio of current transformers
1)
(0001 - 1000
2)
).
Ratio of voltage transformers
1), 3)
(001.0 - 1000
2)
).
1)
Important! Changing the transformation ratios will reset the counters in the
Fronius Smart Meter TS to 0.
2)
Transformation ratio in the current transformer x Transformation ratio of the
voltage transformers = max. 1000
3)
Changeover only when using voltage transformers (direct voltage measurement
VT = 1)
Setting the ad-
dress on the
Fronius Smart
Meter TS
Symbol Name Event Function
Up
1 x
Scroll one screen forward, increase the
value by 1
Down
1 x
Scroll one screen back, decrease the value
by 1
Enter
2 seconds
Call up settings, confirm value
35
EN
