Installation of the Chute
(Figure 3)
1. Figure 3: Place the rotation bushing (item 1) on
the chute base of the snowblower.
2. Figure 3: Install the chute (item 2) over the
rotation bushing and install the three 3/16"
spacers (item 3) and the 3/8" spacers (item 4).
3. Figure 3: Insert the two three holes retaining
plates (item 5) by placing the large section
toward the support of the hydraulic motor.
Secure with two 1/2"NC x 3/4" carriage bolts
(item 7), upside down (front of the chute) and
the four other bolts head up (rear of the chute).
Secure with six 1/2" lockwashers (item 8) and
four 1/2"NC hex nuts (item 9).
4. Tighten all bolts according to the Torque
Specification Table at the end of the manual.

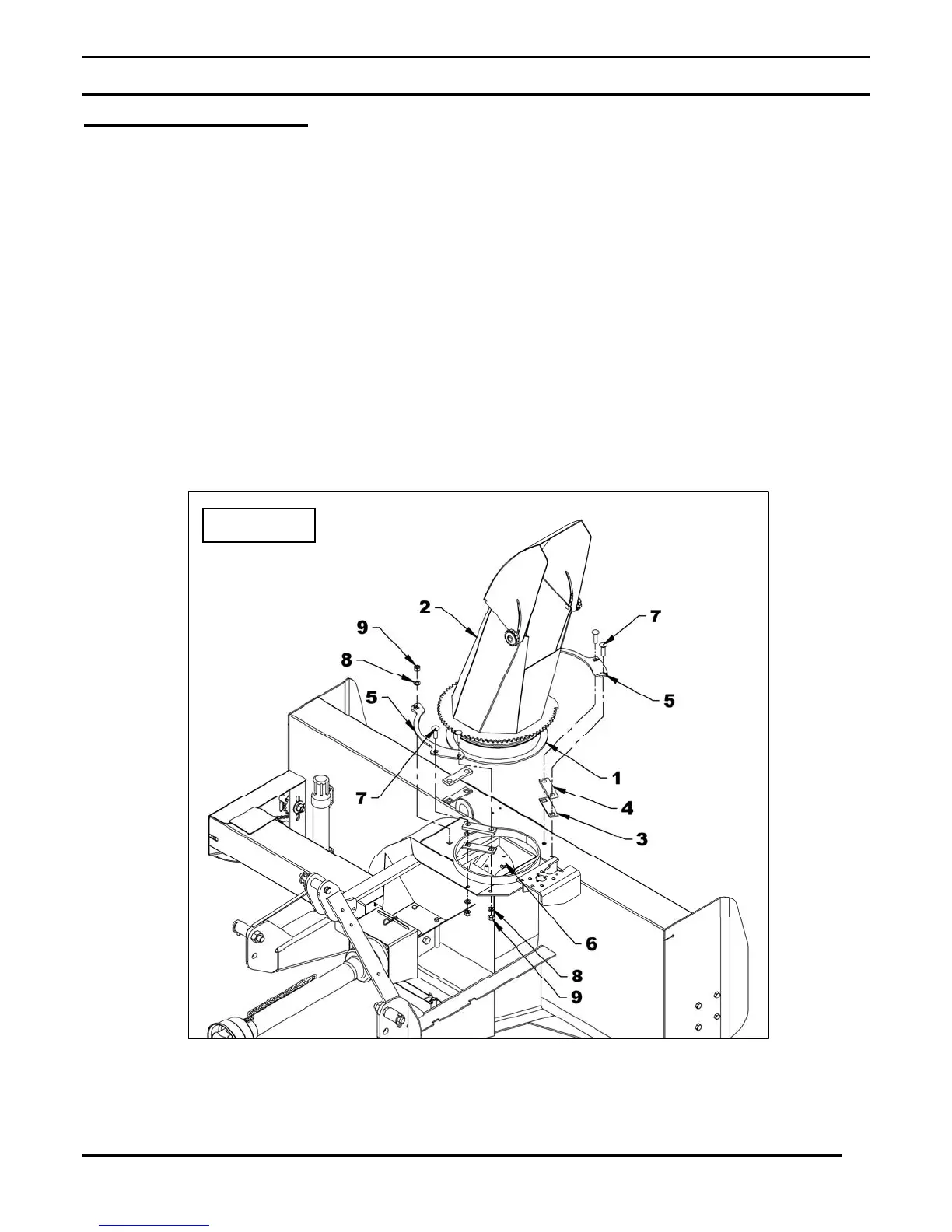

Figure 3
