Frontier SB1174 - 5 RDF0048 - Hydraulic Deflector

PARTS
OM 0408SB1174-A
48

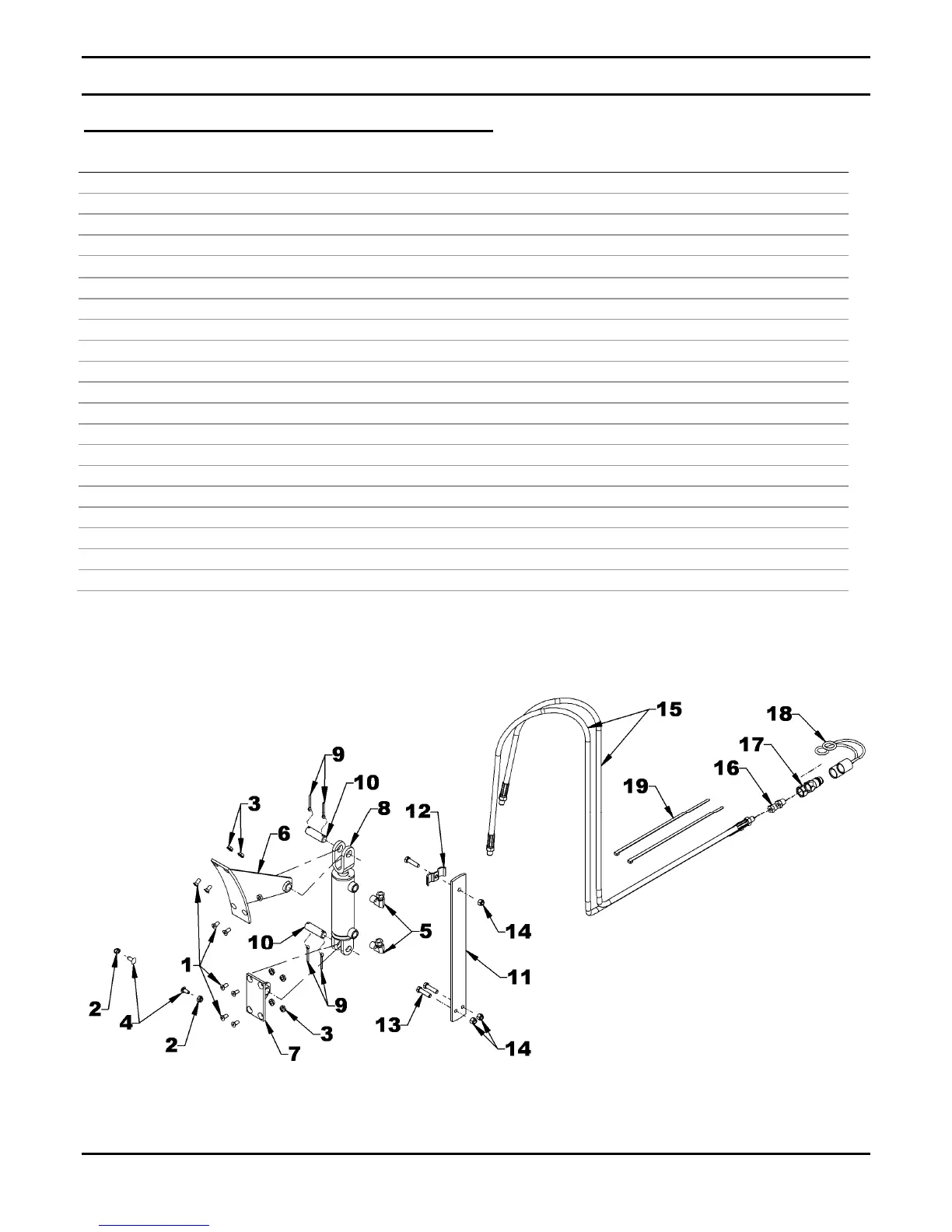

5RDF0048 - HYDRAULIC DEFLECTOR
R
EF. DESCRIPTION QTY PART #
1 Allen flat socket head capscrews 5/16" x 3/4" 8 5RD0700003
2 Nylon insert locknut 5/16" NC 2 5RD1000005
3 Serrated flange nut 5/16" NC 8 5RD0900036
4 Carriage bolt 5/16" NC x 3/4" Gr.5 2 5RD0300002
5
Elbow 90° 3/8" NPT STM x 1/4" NPT SWF
2 5RD654438
6 Deflector bracket 1 5RD660142
7 Deflector base bracket 1 5RD660143
8 Cylinder & pins 1 5RD665433
- Seal kit 1 5RD665434
9 Cotter pin 3/16" x 1 1/2" 4 5RD1500013
10 Pin 3/4" x 2 1/2" 2 5RD665235
11 Hose support 1 5RD669031
12 Hose clamp 1 5RD666583
13 Bolt hex. 3/8" NC x 1 1/2" PTD 3 5RD0100040
14 Nylon insert locknut 3/8" NC PTD 3 5RD1000006
15 Rubber hose 1/4" x 90"lg. 2 5RD3700121
16 Reducer 1/4" NPT female x 1/2" NPT male 2 5RD2600223
17 Male quick coupler 2 5RD656480
18 Dust cap 2 5RD664898
19 Nylon tie wrap1/4" x 15" lg. 2 5RD2100009
