ASSEMBLY
OM 0408SB1174-A
30

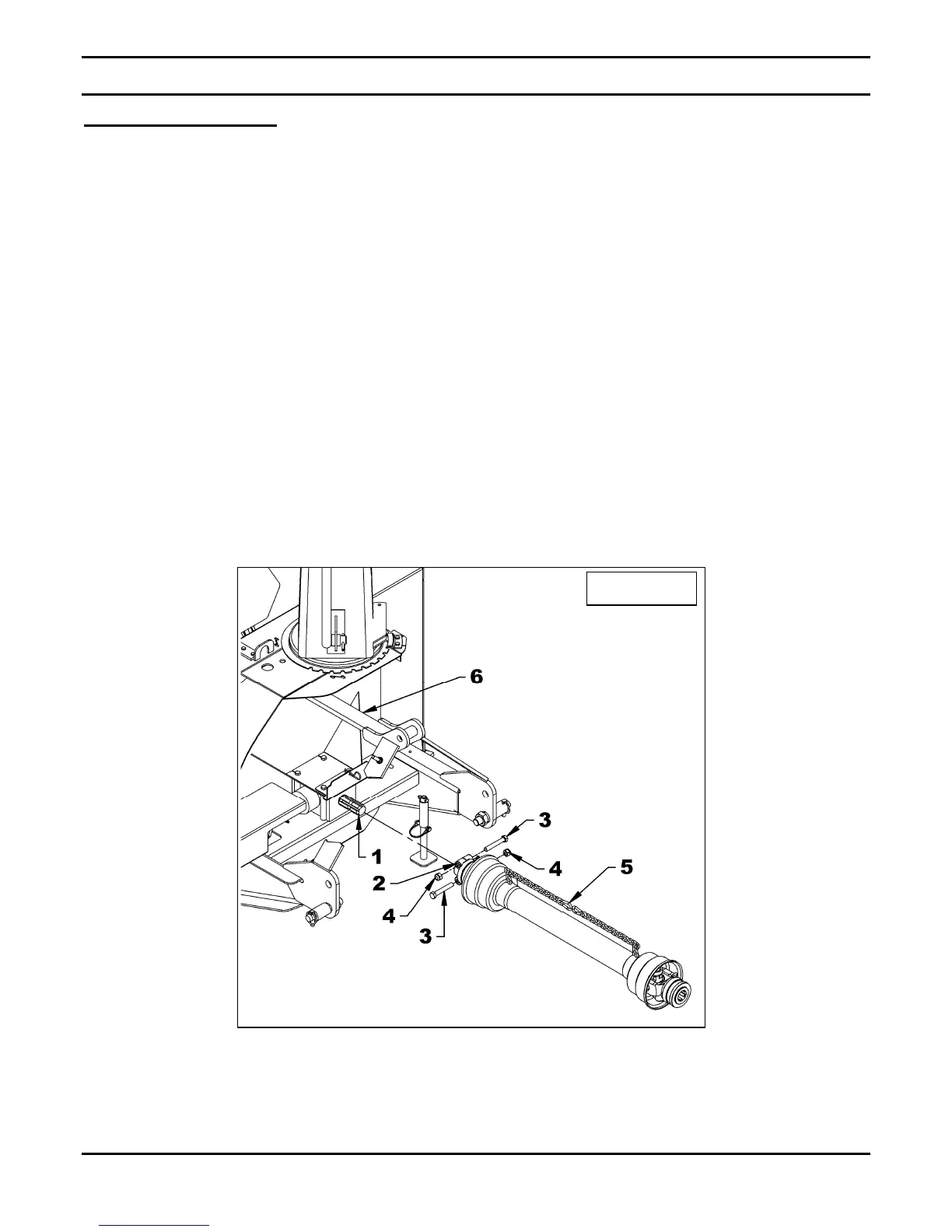

Figure 27
Driveline Installation
(Figure 27)
1. Separate the snowblower from the three
point or quick hitch.
2. Remove paint from snowblower gearbox
shaft (item 1) and grease driveline sliding
surfaces and yoke (item 2).
3. Remove the bolts (items 3) from the driveline
yoke (item 2) and slide yoke over drive shaft
using the sliding action of the driveline. Make
sure the driveline is well secured to the shaft
by reinstalling the bolts and nuts (item 3-4) in
the order shown. Tighten the bolts according
to the Torque Specification Table at the
end of manual.
4. Attach safety chain (item 5) around the upper
link (item 6) to prevent the guard from
spinning.
