ASSEMBLY
OM 0408SB1174-A
32

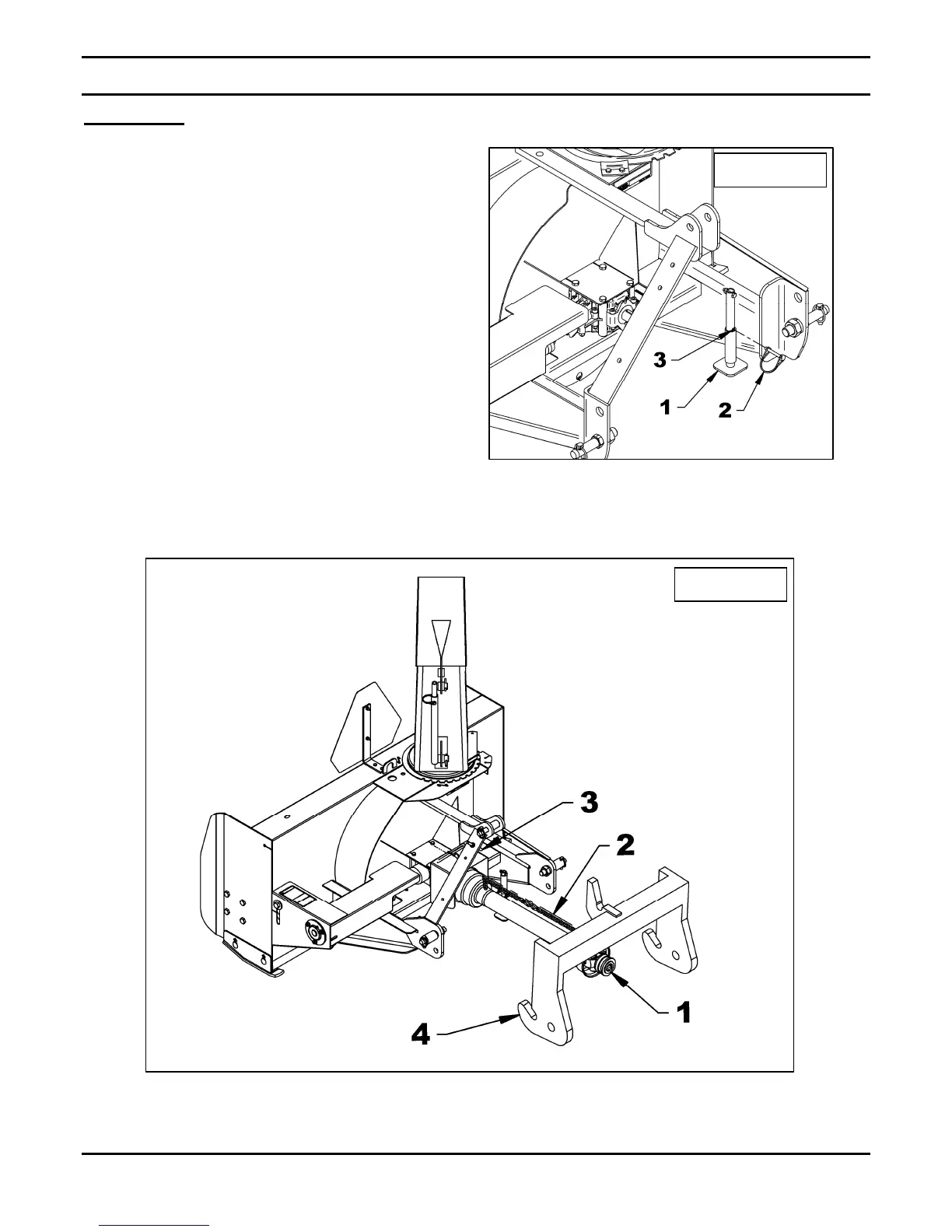

Figure 30
Quick Hitch
1. Set parking brake and turn engine off.
2. Figure 30: Remove the wire round lock pin
(item 2), lower the parking stand (item 1) and
reinsert the wire round lock pin in the lower
hole (item 3).
3. Figure 31: Disconnect driveline (item 1) from
tractor and attach the driveline safety chain
(item 2) to the three point hitch eyebolt
(item 3).
4. Figure 31: Slowly back the tractor away to
release quick hitch (item 4) from the
snowblower.
Figure 31
