3. What do you want to control? How do you want to control it?
Your CB2000 can let teachers control or communicate with practically any device or person. Now is the time to
plan what you want to do.

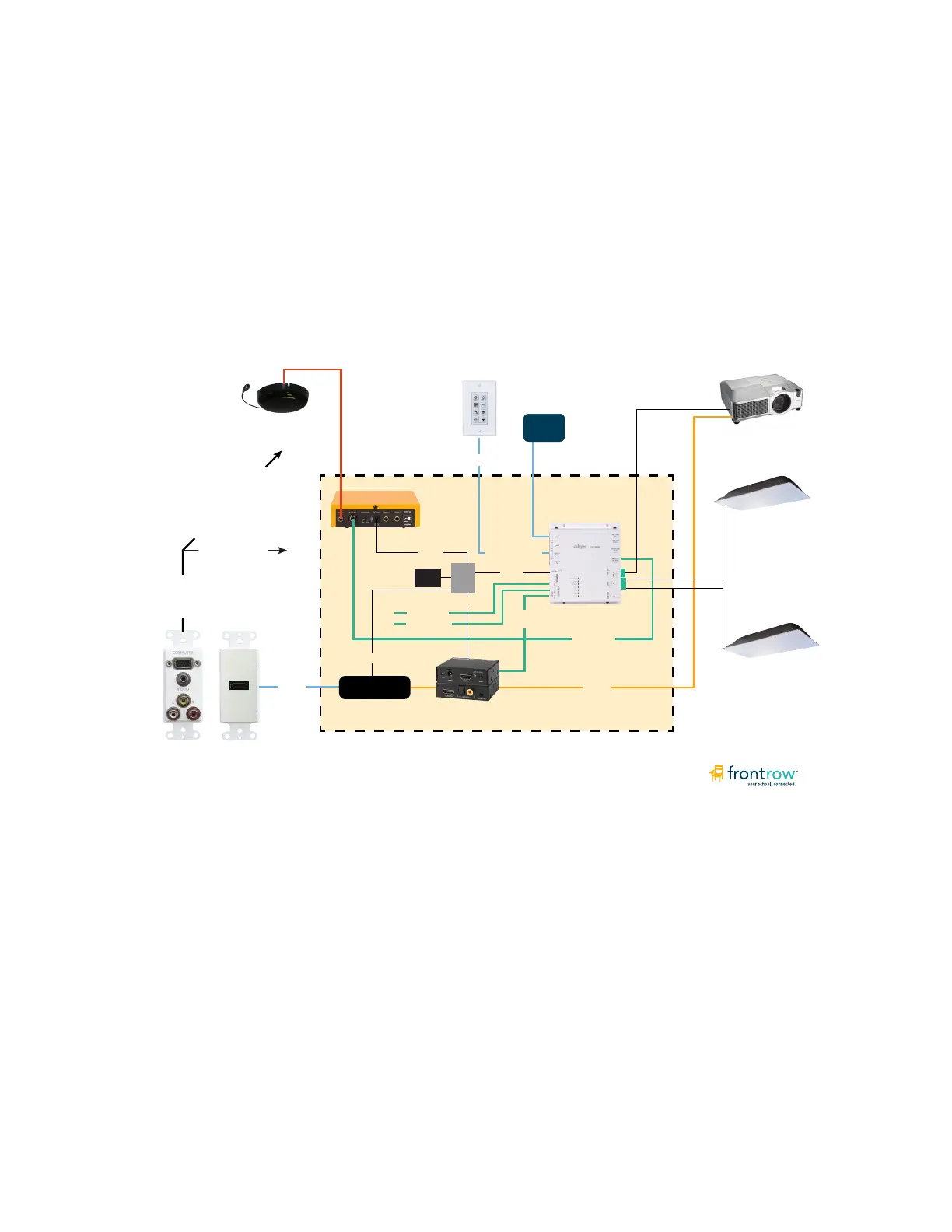

Example 1: Typical ezRoom setup with projector
In this example, the CB2000 works with other ezRoom components to turn a projector on and off, switch
inputs, handle the transport controls for a DVD player, and control audio volume from the teacher’s computer,
an MP3 player, and two FrontRow wireless microphones. If FrontRow Conductor™ is being used in the school,
the CB2000 could also initiate intercom calls and trigger alerts.
CM3000
ezRoom Wiring
Mic dome receiver
HDMI Receiver
CB2000
HDMI Audio
Extractor
INSIDE OF THE ENCLOSURE
+12V
+12V
+5V
AV Cable
VGA & video to projector
Audio to ezRoom
Projector
Mic Audio
HDMI
Audio
HDMI
Serial
CAT5e
TB14
RCA Audio
PC Audio
CAT5e
LAN
Network +12V
+12VDC
Speaker
Speaker
To Next Page
