5

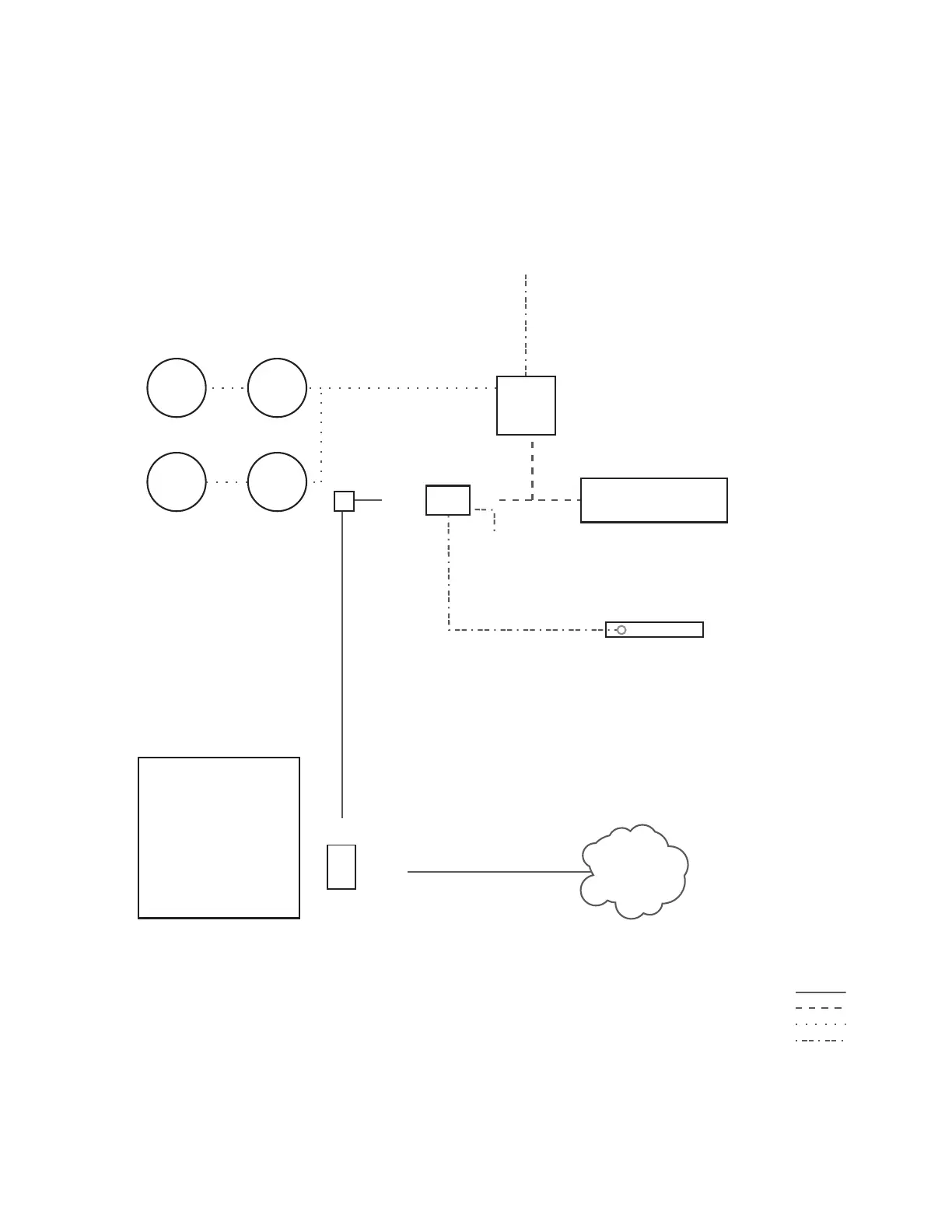

Example 3: Using CB2000 as a stand-alone controller with TB6 and TB8
You can use the CB2000 as a stand-alone serial controller with the TB6 and TB8 terminal blocks. In this configuration,
the FrontRow TB6 and TB8 adapters included with your CB2000 standalone kit supply power, routes commands, and
feeds data back (in the case of bidirectional serial devices). In combination with powerful tools like FrontRow Maestro™,
this can allow you to ‘network’ and manage projectors that are otherwise not online. Below are the basic connections
for controlling a projector and amplifier serially, and a DVD player via infrared remote.
Third party
serial
amplifier
Screen or interactive
white board
CB2000
Control
Panel
SpeakerSpeaker
Projector
Power
LAN
Cat 5 cable
Serial cable
Control + power
RS232
Speaker Speaker
AUX
Speaker cable
RS232
NOTE: This is a schematic illustration
intended to clarify the relationship of
components to each other. The location
of jacks shown here may not reflect their
true position on specific devices.
NETWORK
PWR/GND
Power
DVD
Player
IR
IR
Other cable
TB8
TB6
