Frymaster 8196428 - Wiring; Component Box to Filter Pump Harness

2-10
2.5 Wiring

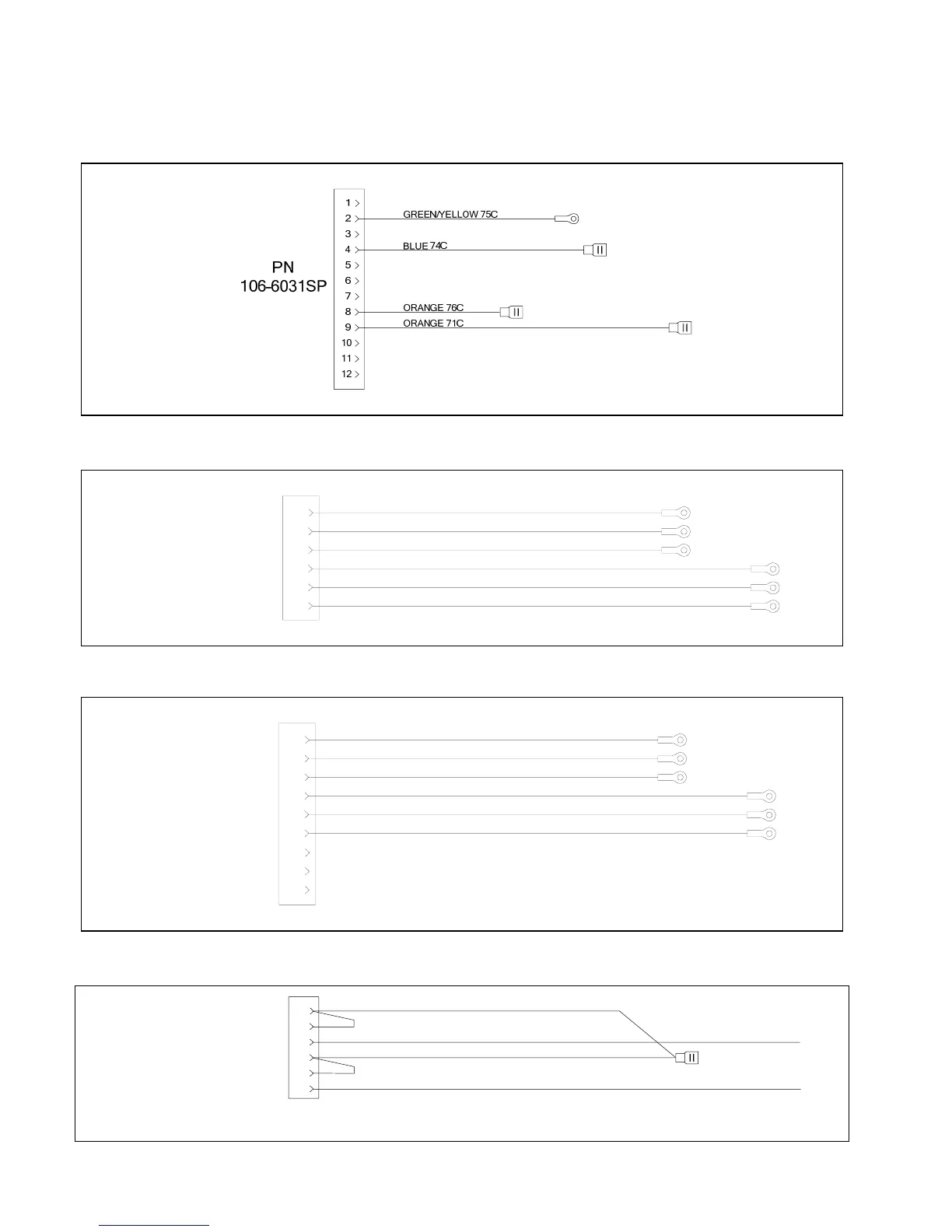

2.5.1 Contactor Box Harness Assembly, 12-Pin (Control)
2.5.2 Contactor Box Harness Assembly, MDI, 6-Pin (Left Element)
BLUE
BLACK
1
2
3
4
5
6
BLACK
BLACK
BLUE
BLUE
PN
106-8744
2.5.3 Contactor Box Harness Assembly, MDI, 9-Pin (Right Element)
BLUE
BLACK
1
2
3
4
5
6
BLACK
BLACK
BLUE
BLUE
7
8
9
PN
106-8745
2.5.4 Component Box to Filter Pump Harness
BLUE 20C
WHITE 25C
BLUE 23C
BLUE 21C
1
2
3
4
5
6
BLUE 24C
BLACK 22C
PN
106-5935
C2
