Frymaster 8196428 - Wiring and Pin Connectors

2-15

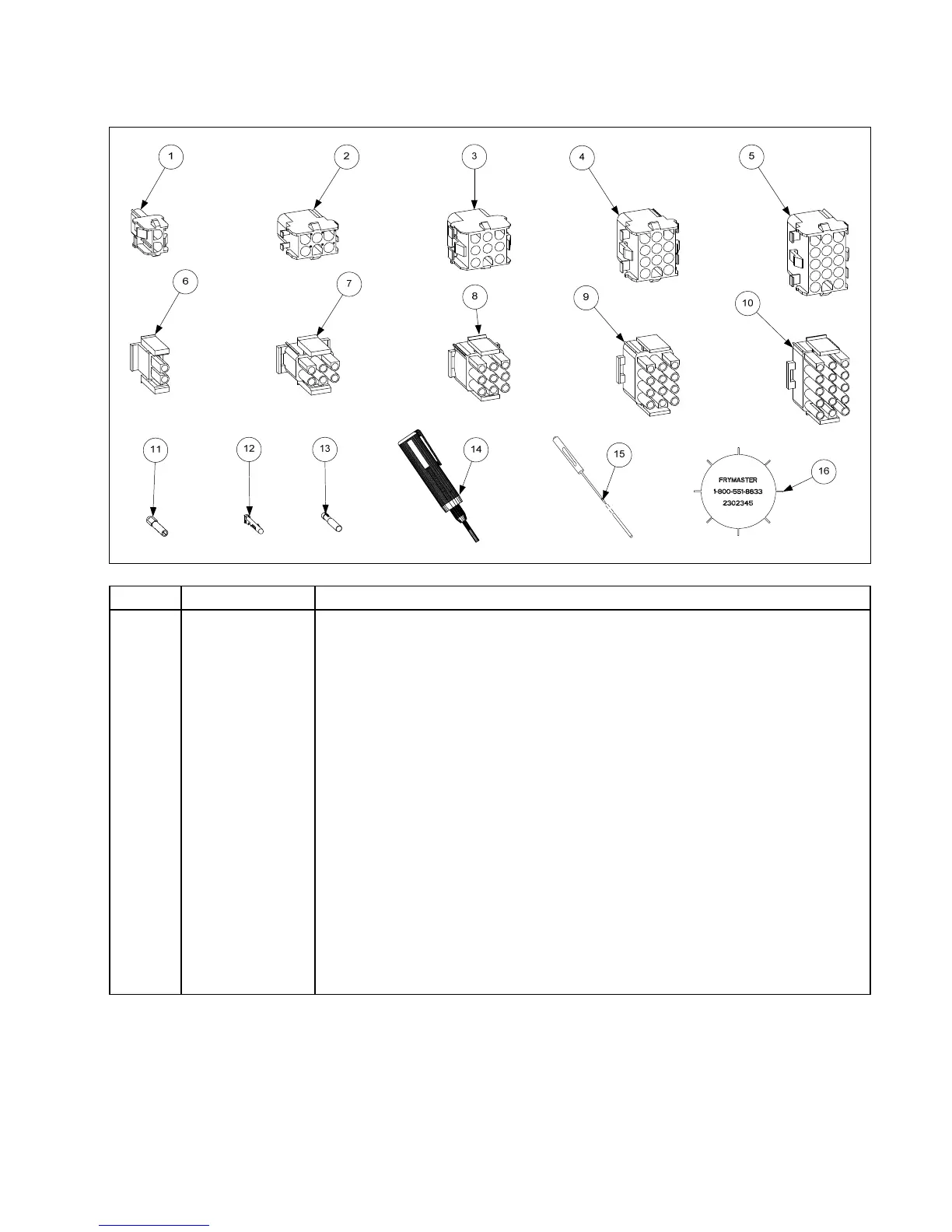

2.8 Wiring Connectors and Pin Connectors
ITEM PART # COMPONENT
1 807-1068 2-Pin Female
2 807-2136 6-Pin Female, Hi Amp
3 807-2138 9-Pin Female, Hi Amp
4 807-0159 12-Pin Female
5 807-0875 15-Pin Female
6 807-1067 2-Pin Male
7 807-0157 6-Pin Male
8 807-0155 9-Pin Male
9 807-0160 12-Pin Male
10 807-0804 15-Pin Male
11 826-1341 Terminal, Female Split Pin (pkg. of 25)
12 826-1342 Terminal, Male Split Pin (pkg. of 25)
13 807-2518 Plug, Mate-N-Lock (Dummy Pin)
14
807-0928
Extract Tool Pin Pusher
15
806-4855
Pin Pusher Screwdriver Assembly
16
230-2345
SMT Pin Extractor
* 807-4660PK SMT Pin Service Repair Kit
* Not illustrated.
