4.3 Operating the Filter
Pull the filter pan outward until the
slip fitting disconnects. Allow any
residual oil left in the fittings to drip
into the pan. Remove the filter pan
from fryer cabinet. Use caution and
wear protective gear.
Remove the filter pan components:
crumb tray, hold-down ring, filter pa-
per and inner screen.
Clean the pan and replace the com-
ponents. The inner screen is sup-

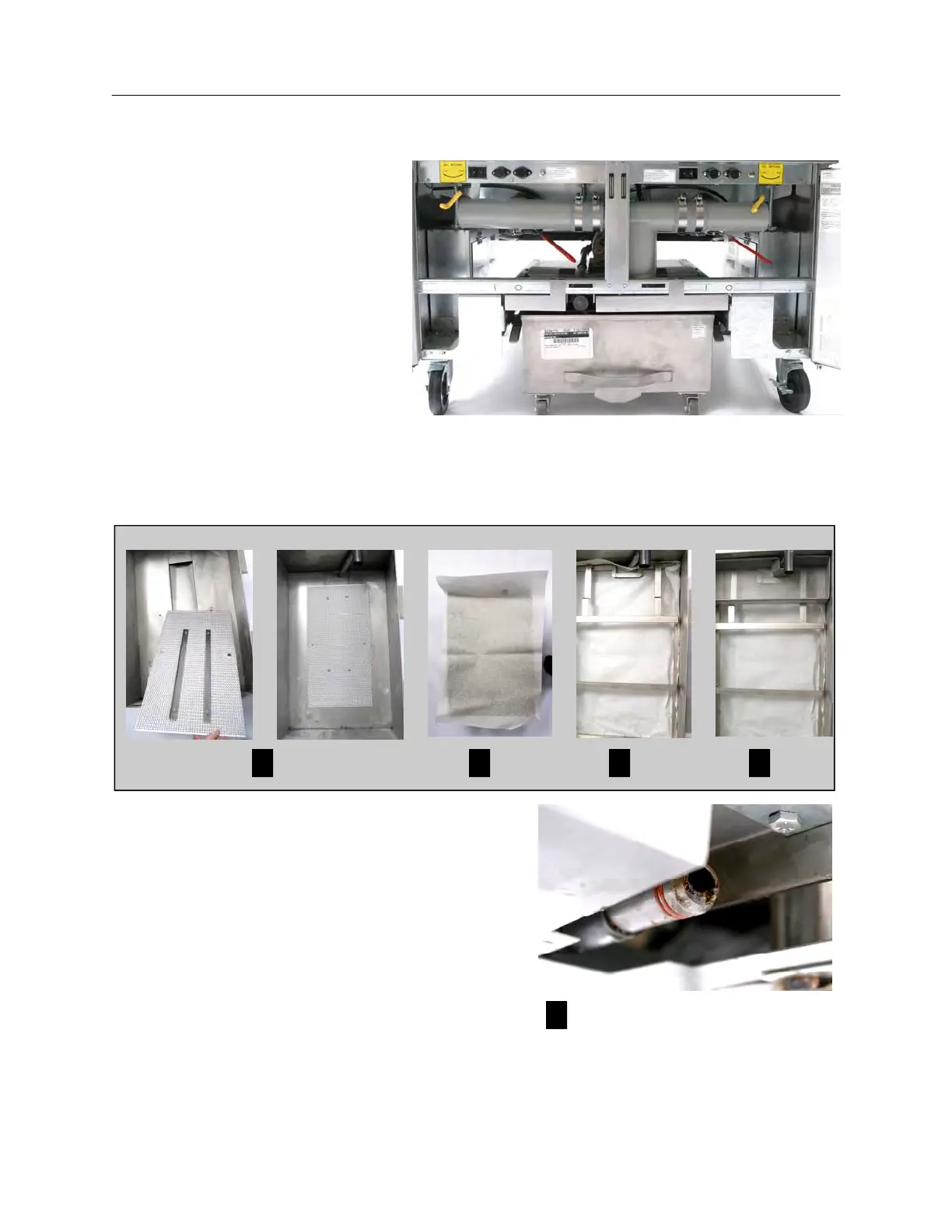

ported by stiffening rails on the bottom, which align it with the sump. See photo below. Insert
the components in this order:
1. Inner screen — ensure it is aligned with pins and
flat.
2. Lap filter paper over filter pan.
3. Press filter paper into the pan with the hold-
down ring. The notch goes toward the pick-up
tube. Sprinkle filter powder on the filter paper.
4. Position the crumb basket.
5. Ensure the O-rings on the male pick-up tube are
intact.
Slide the filter pan firmly into position.
Pull the filter pan from the fryer cabinet.
1 2 3 4
Ensure the O-ring on the male pick-up
tube are intact.
5
HIGH PRODUCTION RE (HPRE) E
4
SERIES ELECTRIC FRYERS
CHAPTER 4: BUILT-IN FILTRATION
