FS S3410 Series Hardware Installation And Maintenance Guide

Innovation · Expertise · Agility
13
Hardware Installation and Parts Replacement
Switch Hardware Installation and Maintenance Guide
1.5.4 Connecting High-speed Cables
• Before connecting cables, take ESD protection measures, for example, wear ESD gloves or an ESD wrist
strap.
• Both ends of an idle high-speed cable must be covered by an ESD cap.
• The bend radius of high-speed cables must be larger than the minimum bend radius. Overbending high-
speed cables may damage wires in the cables.
Procedure:
1. Determine the number and type of ports to be connected and plan the cabling routes.
2. Select high-speed cables of appropriate quantity and lengths according to the number of ports and
measured cabling distances.
3. Wear an ESD wrist strap or ESD gloves. Ensure that the ESD wrist strap is grounded and in close contact
with your wrist.
4. Attach temporary labels to both ends of each high-speed cable and write numbers on the labels to
identify the high-speed cables.
5. Connect high-speed cables to ports of the switch.
- Find the ports matching the numbers on the high-speed cables and plug cable connectors to the ports.
After verifying that all high-speed cables are correctly connected, go to 6.
- Hold a high-speed cable connector in a correct direction when inserting it into a port. When you hear a click,
the high-speed cable is securely connected to the port. See Figure 8.

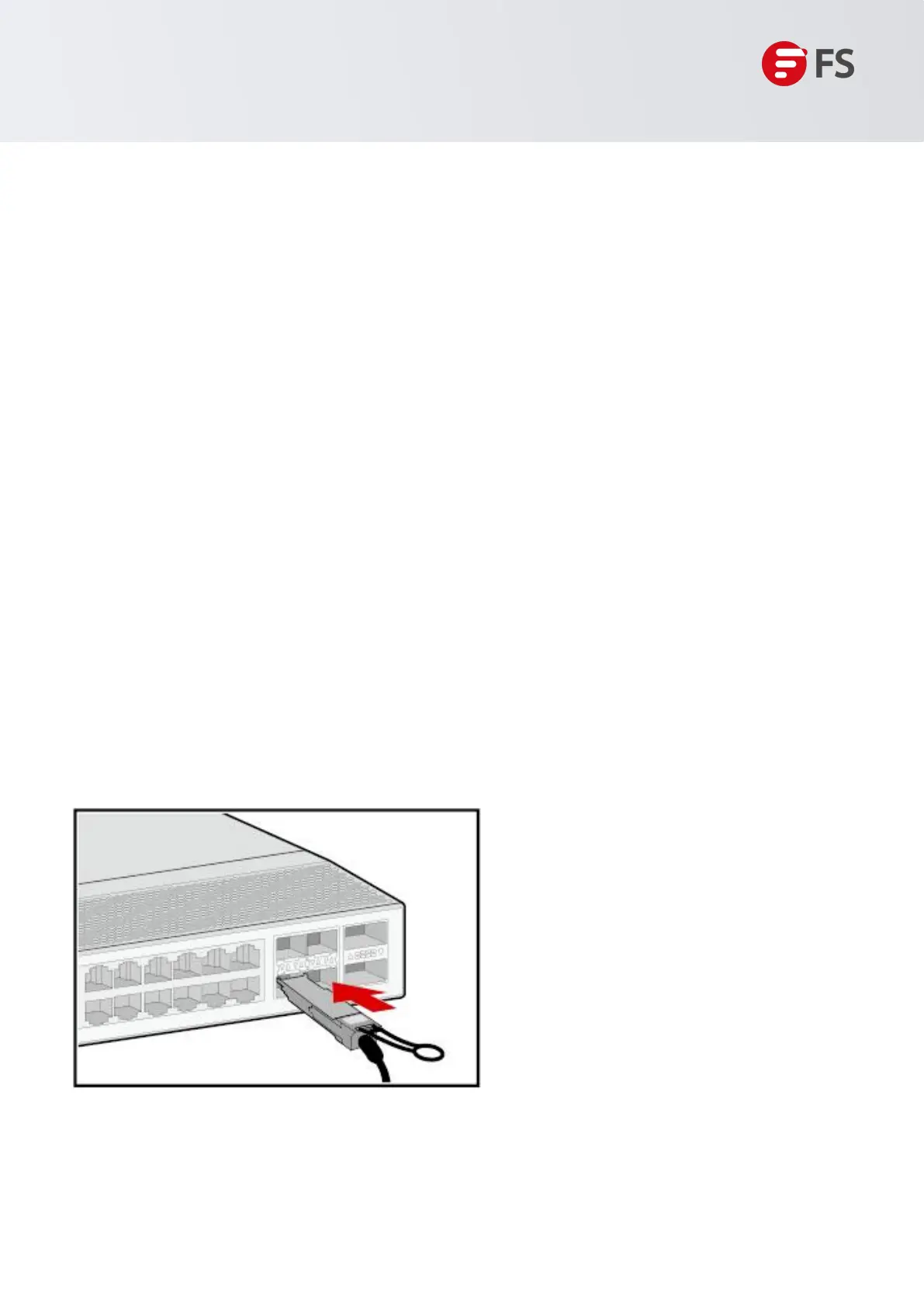

Figure 8: Connecting a High-speed Cable
