Section 3 Mechanical & Electrical Installation
17 FT742-DM (RS485) Sensors – User Manual
The sensor measures the wind direction relative to the alignment flat and the central datum feature. When the
wind sensor is correctly aligned the wind direction measurements will be as shown in Figure 6.

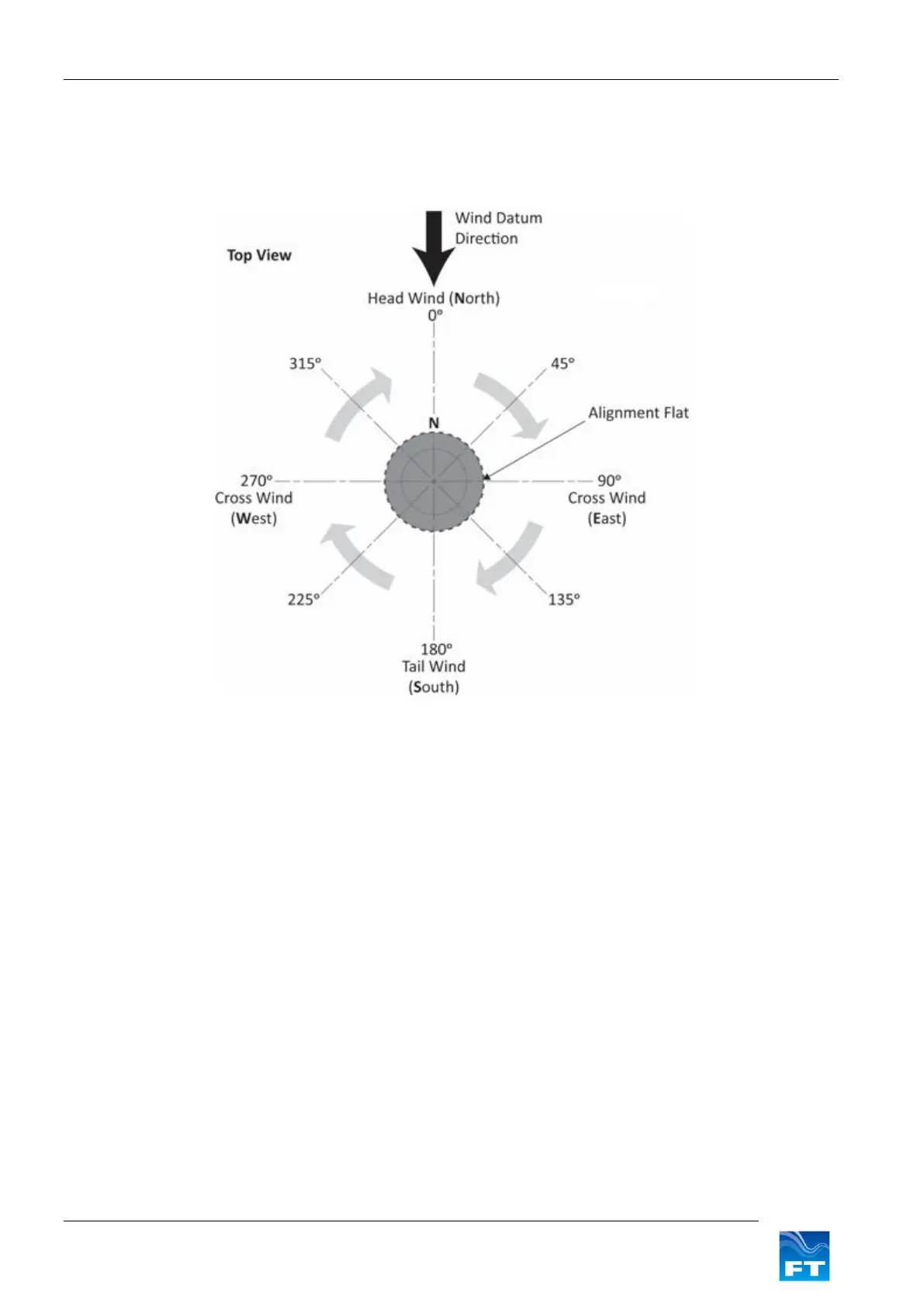

Figure 6: Wind Direction (view from above)
