29
WWW.FUHR.DE
multitronic
881/881GL/ServoAccess

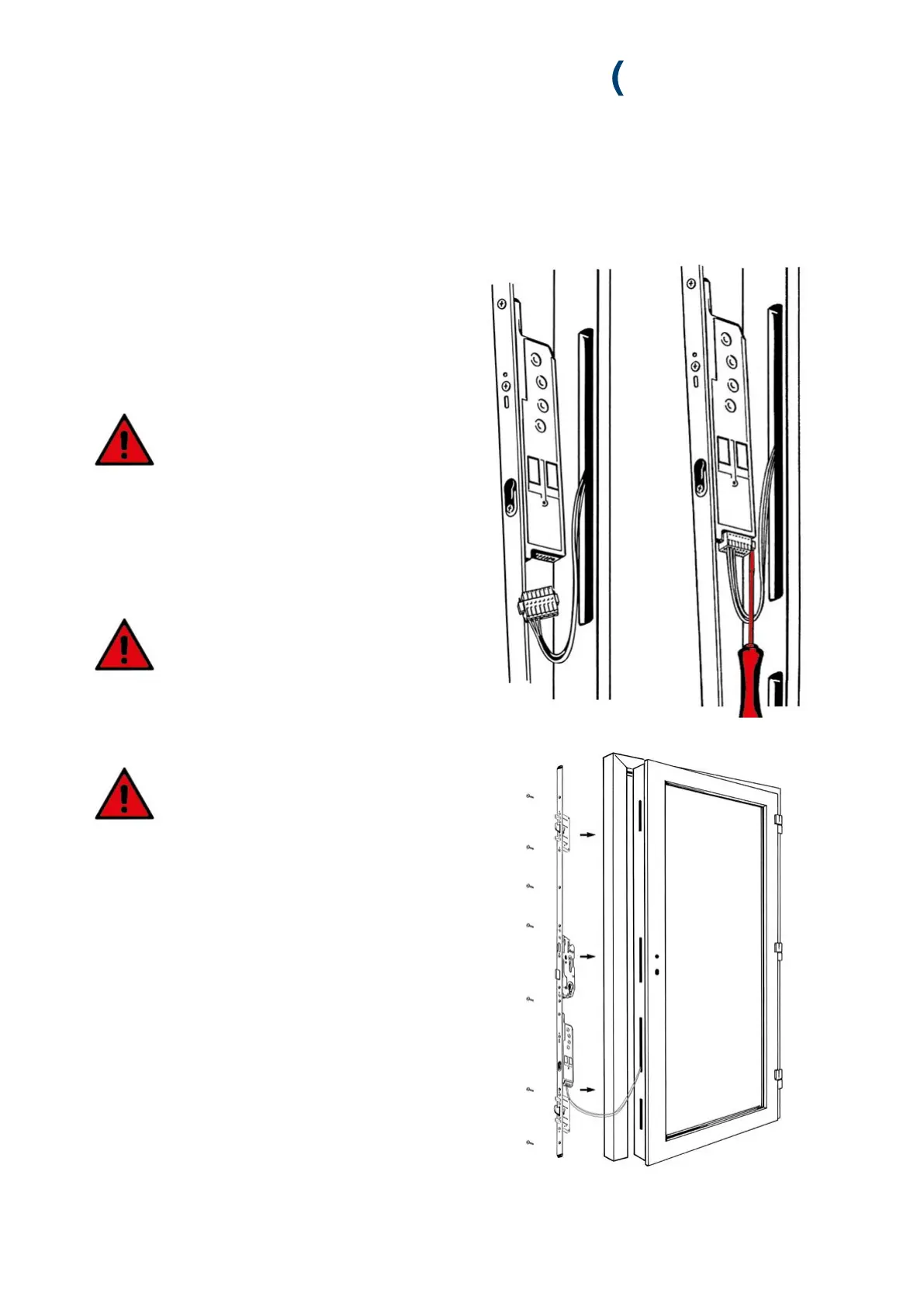

4.2.3 INSTALLATION OF THE MULTIPOINT LOCKING SYSTEM IN THE DOOR LEAF
1. Connect the tappet contact device’s green plug to the
corresponding contact plug on the electrical drive unit.
As the case may be, please note deviating cable assign-
ment on the multifunctional jack when using this without
a control unit, refer to chapter 3.
2. Screw-fix the plugs with a small screwdriver.
Please note! It is imperative to carry out this
screw-fixing. The screw-fixing warrants
permanent contact for the electricity and
data transfer, and safeguards against
vibration and shock.
3. Insert the cable and FUHR autotronic 834 multipoint
locking system into the routed recess. Leave a spare cable
loop below the green drive unit’s coupler in the profile in
order to be able to remove the lock at a later stage.
In doing so, ensure that the cables are
neither kinked, trapped nor damaged.
4. Screw-fix the multipoint locking system’s faceplate.
Fix the screws in a straight manner in order to prevent the
connecting-rods being jammed by the screws.
Please note! The connecting-rods have to
be able to move unhindered. Friction
caused by screws or too narrow profile
guide grooves cause operational malfunction.
