4.2.4 INSTALLATION OF THE CABLE GUIDES, END CAPS AND
COVER PLATES IN THE DOOR LEAF

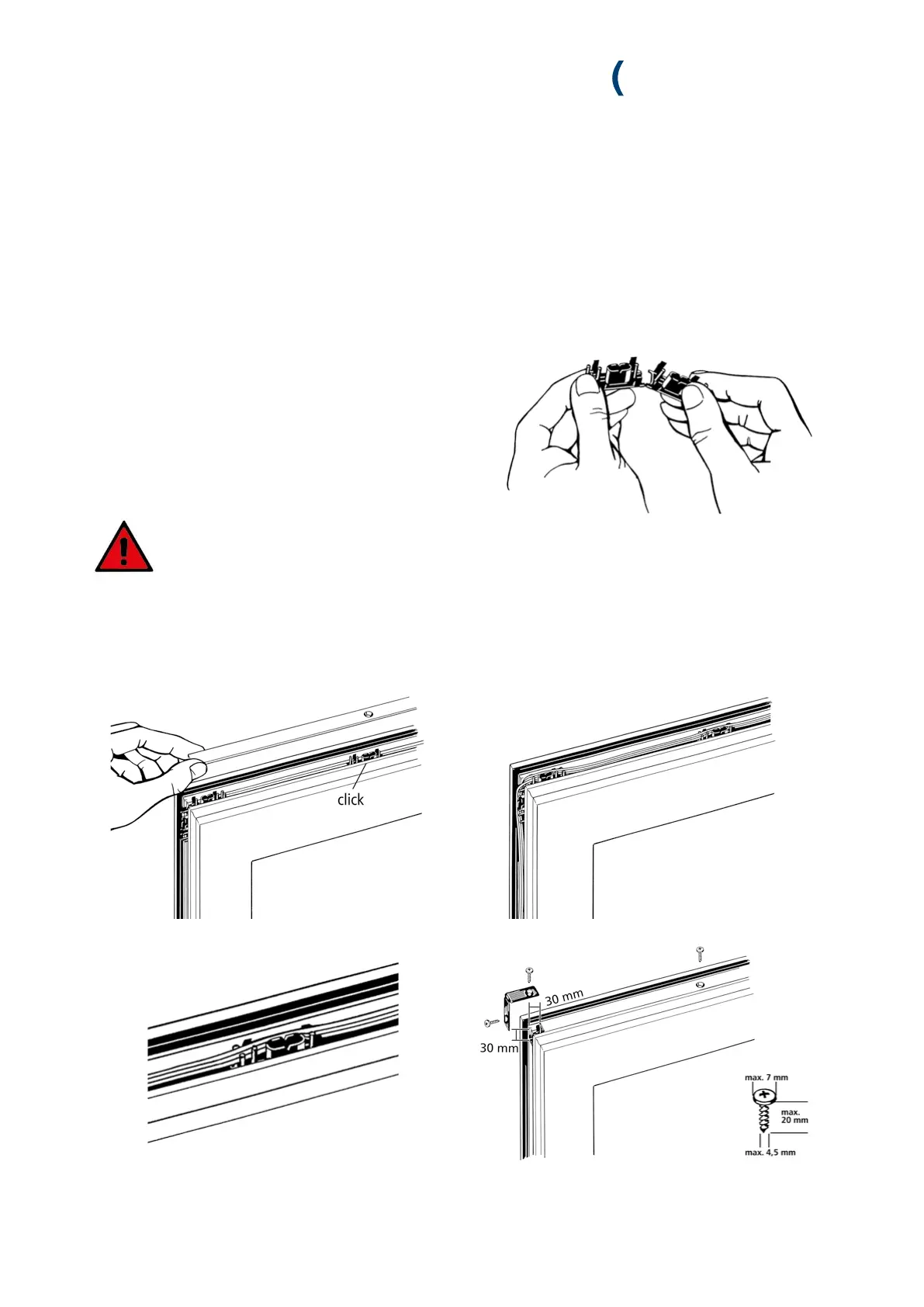

1. Fold the enclosed PVC cable guides for the profile corners
in half and break them in two for the centre profile area.
2. Clip in each of the cable guides into the top door leaf
corners, and depending on the door width and height,
also in the Euro groove channel.
3. Lay the cable through the cable guide and loop the
surplus cable between two cable guides.
4. Crop and screw-fix the cover plate according to the door
width or height.
Ensure that the screws are screw-fixed
through the cable guides’ elongated holes.
Non-compliance can lead to damaged
cables.
5. Put on the end caps and screw-fix through the cable
guides.
