SCALEOVIEW H22-1W/Q22W-1
Mounting and removing the monitor base

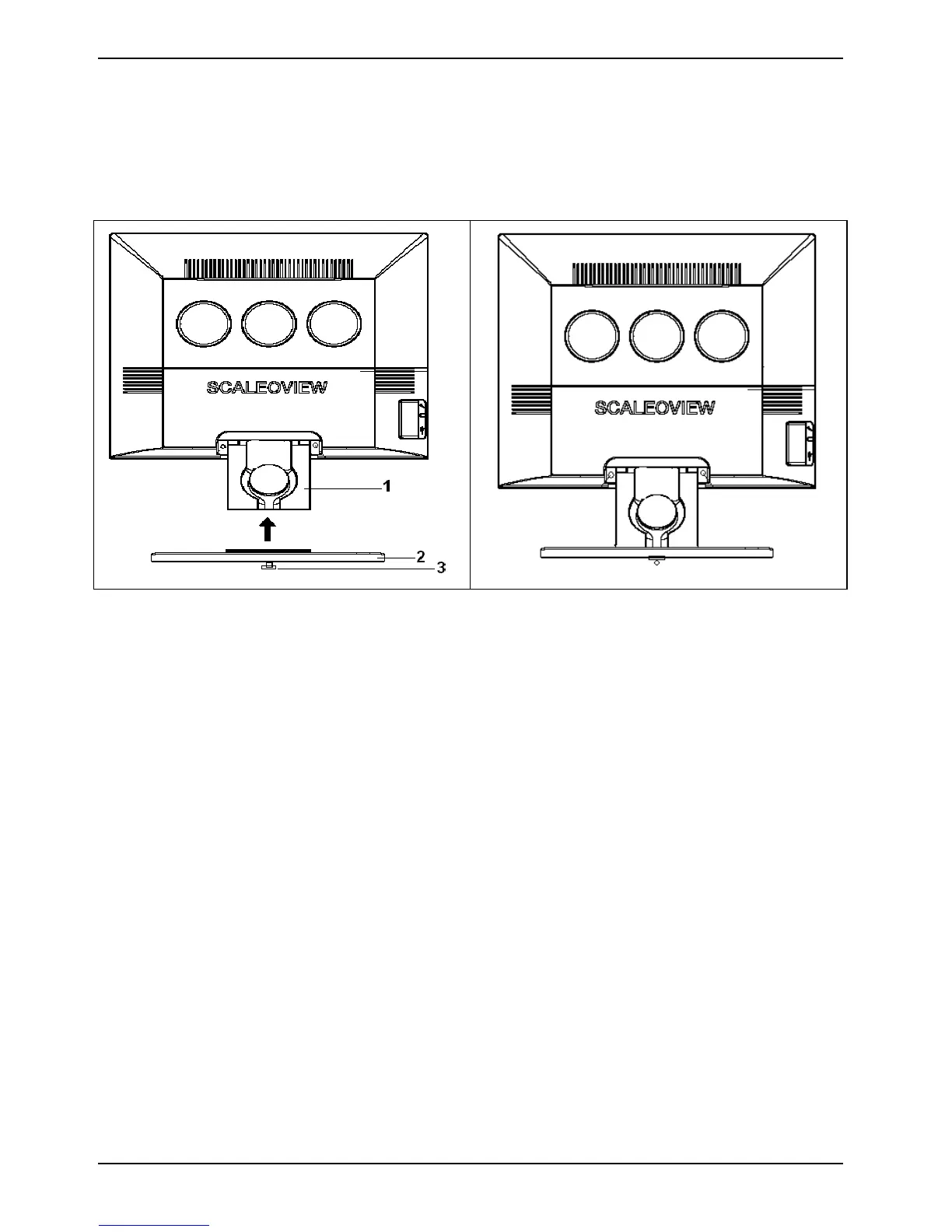

Mounting monitor base
When delivered the lower section of the monitor base is removed.
► Push the lower section of the monitor base (2) in the upper section (1).
► Fasten the screw (3).
10 A26361-K1213-Z120-1-7619, edition 1
