Connecting LIFEBOOK to the Port
Replicator
1
2
Disconnect the mains adapter cable
from the DC socket (DC-in) of the
notebook.
Connect one end of the USB cable
(USB Type-C
TM
) to USB 3.2 (Gen 2)
Type-C
TM
Connector or Thunderbolt
TM
3 Connector with power delivery
function on the notebook (1).
Connect the other end of the USB
cable (USB Type-C™) to the USB
3.2 (Gen 1) Connector Port for Data
connection and power supply (USB
Type-C
TM
) on the Port Replicator (2).
1.
2.
3.

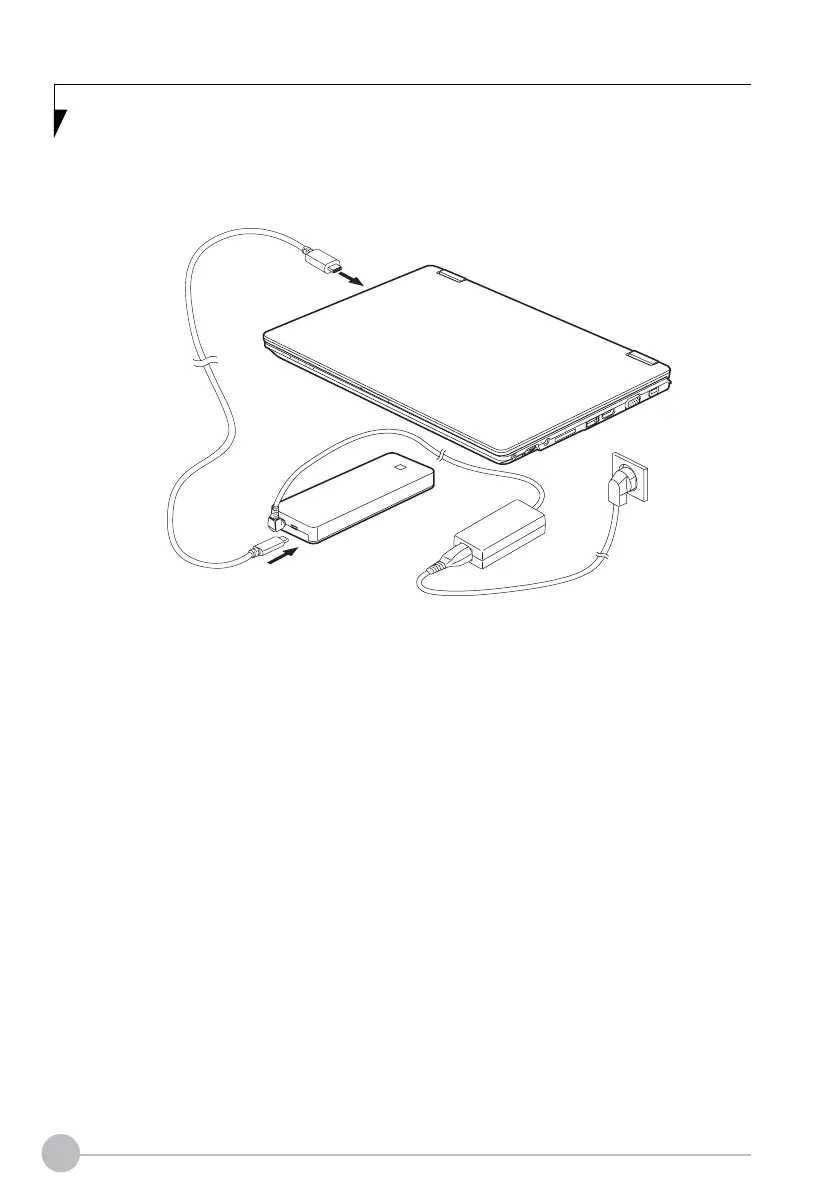

(This picture is for illustration purpose only and may look di󰀨erent from the actual unit)
