Removing and inst alling compone nts
during servicing
Removing and installing the har
ddisk
Removing a cover
► Remove the b attery (see Chapter "Remo ving the battery", Page 30).
2
1
1

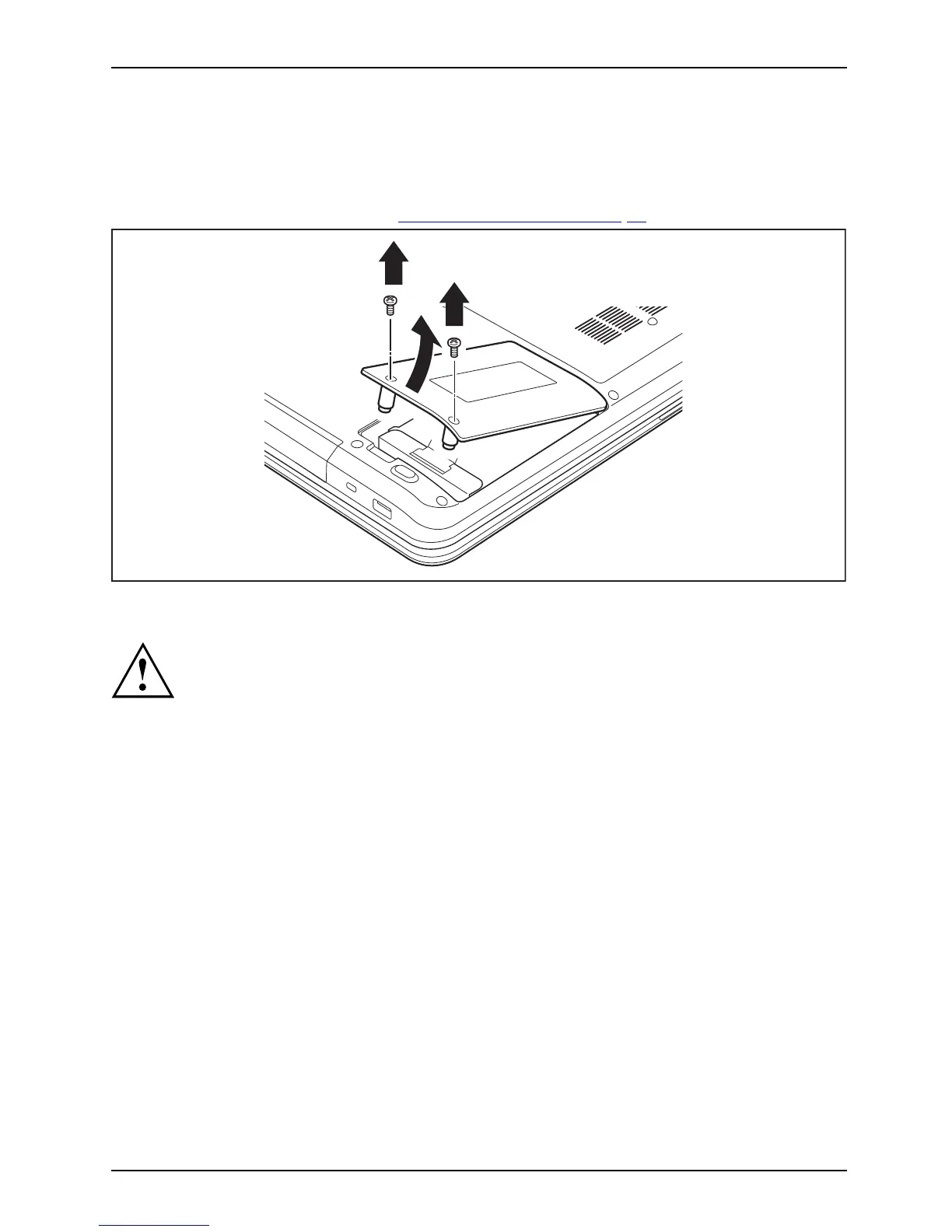

► Remove the screws (1).
Keep the screw s in a safe place . If you are removing more than one component at
the same time, store the screws for the individual components se parate ly from each
other. If you install the wrong screws, components may be damaged.
► Lift the cover off the notebook (2).
Fujitsu 53
