Fujitsu AOYG09LMCE - Page 14

¢
Model:ASYG14LMCE

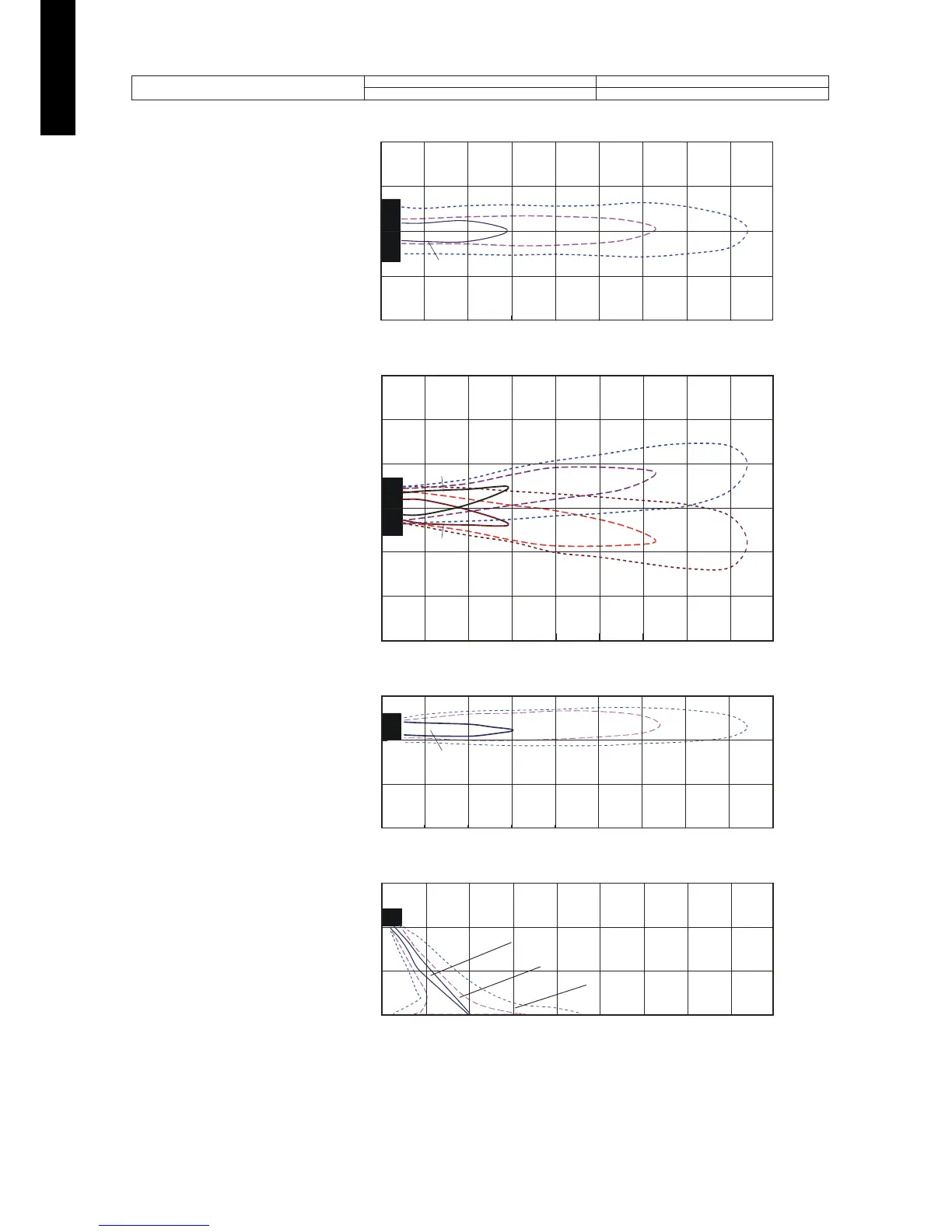

Measuring conditions
Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
2.0
1.0 0.5
2
1
0
1
2
Unit: m/s(m)
(m)
0123456789
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
1.0
1.0
0.5
0.5
3
2
1
0
1
2
3
Unit: m/s(m)
(m)
0123456789
2.0
2.0
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
2.0
1.0
0.5
3
2
1
0
Unit: m/s(m)
(m)
0123456789
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
2.0
1.0
0.5
3
2
1
0
Unit: m/s(m)
(m)
0123456789
DESIGN & TECHNICAL MANUAL
- 10 -
WALL MOUNTED ASYG07-14LMCE
