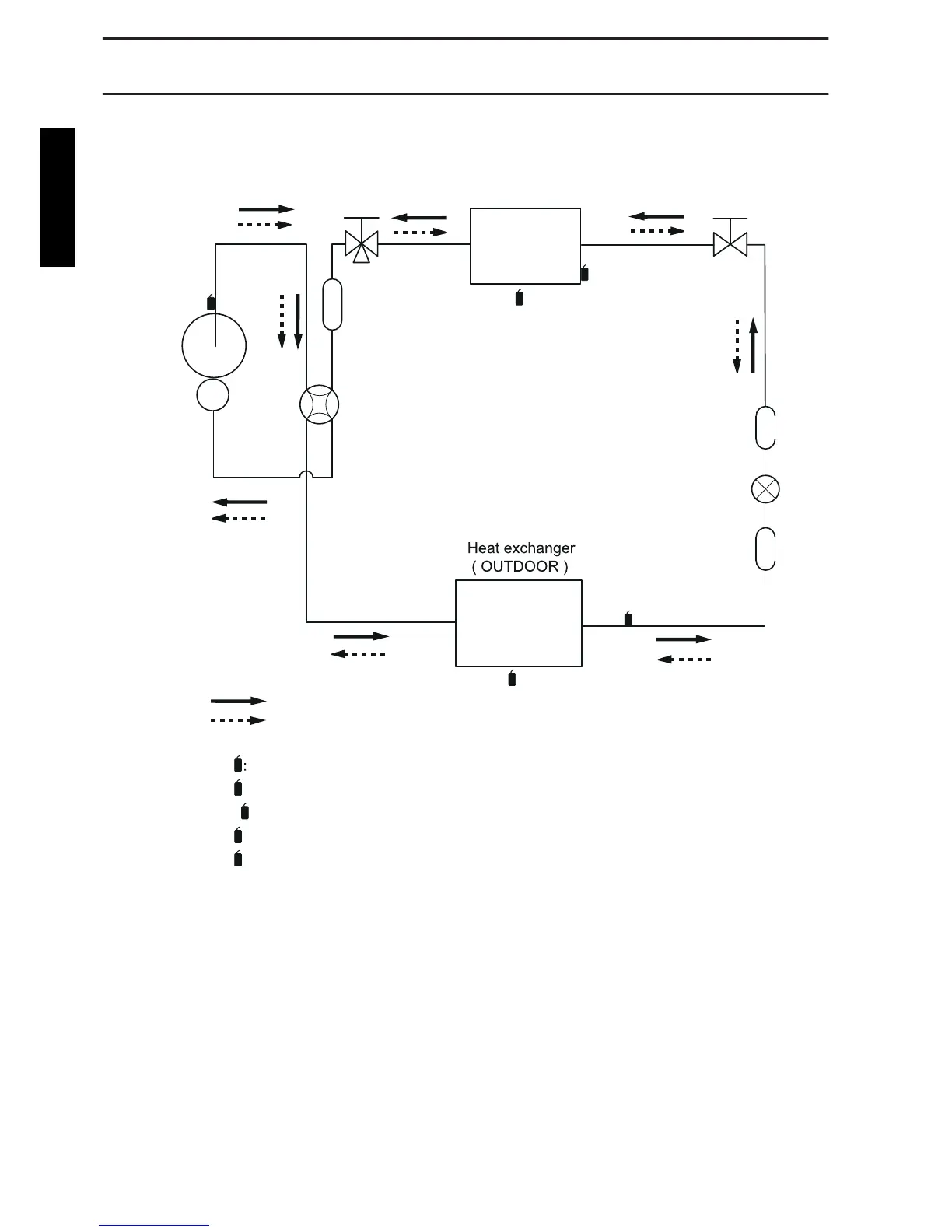

4. Refrigerant circuit
4-1. Models:AOYG07LMCE, AOYG09LMCE, AOYG12LMCE,
and AOYG14LMCE
Heat exchanger
(INDOOR)
Th
D
Th
D
Th
P
Th
P
Th
R
Th
R
Th
HO
Th
HO
Th
O
Th
O
3-way
valve
Muffler
: Cooling
: Heating
: Thermistor (Discharge temperature)
: Thermistor (Outdoor temperature)
: Thermistor (Heat exchanger out temperature)
: Thermistor (Room temperature)
: Thermistor (Pipe temperature)
Compressor
4-way valve
Strainer
Expansion valve
Strainer
2-way
valve
DESIGN & TECHNICAL MANUAL
- 38 -
OUTDOOR UNIT AOYG07-14LMCE
