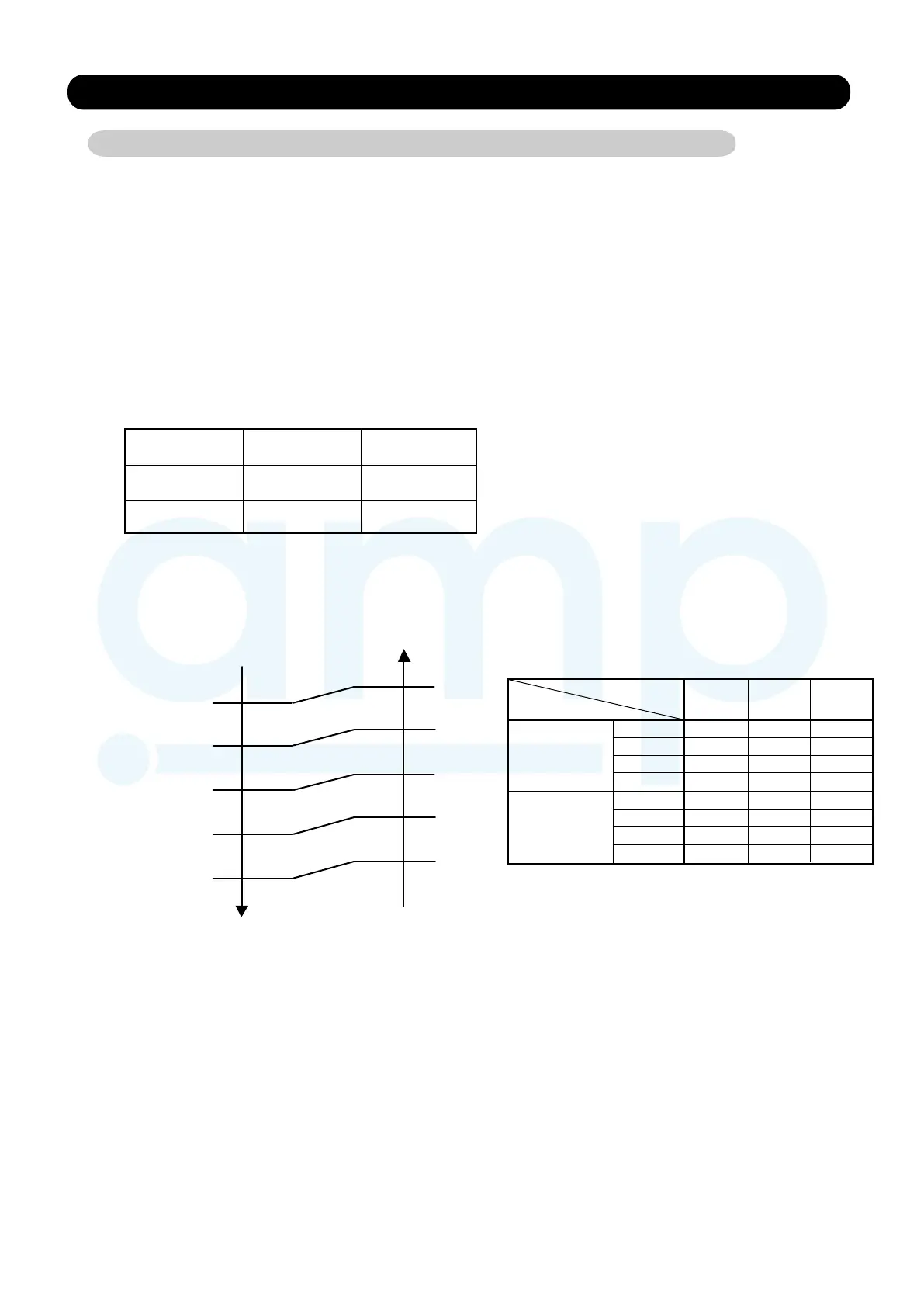

1-1. COOLING OPERATION
1-1-1 COOLING CAPACITY CONTROL
01-01
A sensor (room temperature thermistor) built in the indoor unit will usually perceive
difference or variation between a set temperature and present room temperature, and
controls the operation frequency of the compressor.
* If the room temperature is 2°C higher than a set temperature,
the compressor operation frequency will attain to maximum performance.
* If the room temperature is 2.5°C lower than a set temperature, the compressor
will be stopped.
* When the room temperature is between +2°C to -2.5°C of the setting temperature,
the compressor frequency is controlled within the range shown in Table1.
minimum
frequency
maximum
frequency
28rps 77rps
AO* A72LALT
28rps 86rps
AO* A90LALT
Hi Me Lo
77rps
77rps
60rps
51rps
56rps
56rps
51rps
48rps
51rps
51rps
48rps
48rps
A zone
B zone
C zone
AO* A72LALT
D-F zone
86rps
86rps
77rps
66rps
71rps
71rps
66rps
56rps
66rps
66rps
56rps
53rps
A zone
B zone
C zone
AO* A90LALT
D-F zone
( Table 1 : Compressor Frequency Range )
( Fig. 1 : Limit of Maximum Frequency based on Outdoor Temperature )
Fan speed mode
Outdoor air
temperature
A zone
B zone
C zone
D zone
E zone
F zone
When the room
temperature rises
When the room
temperature drops
36°C
32°C
21°C
12°C
2°C
34°C
30°C
19°C
10°C
0°C
