- 28 -

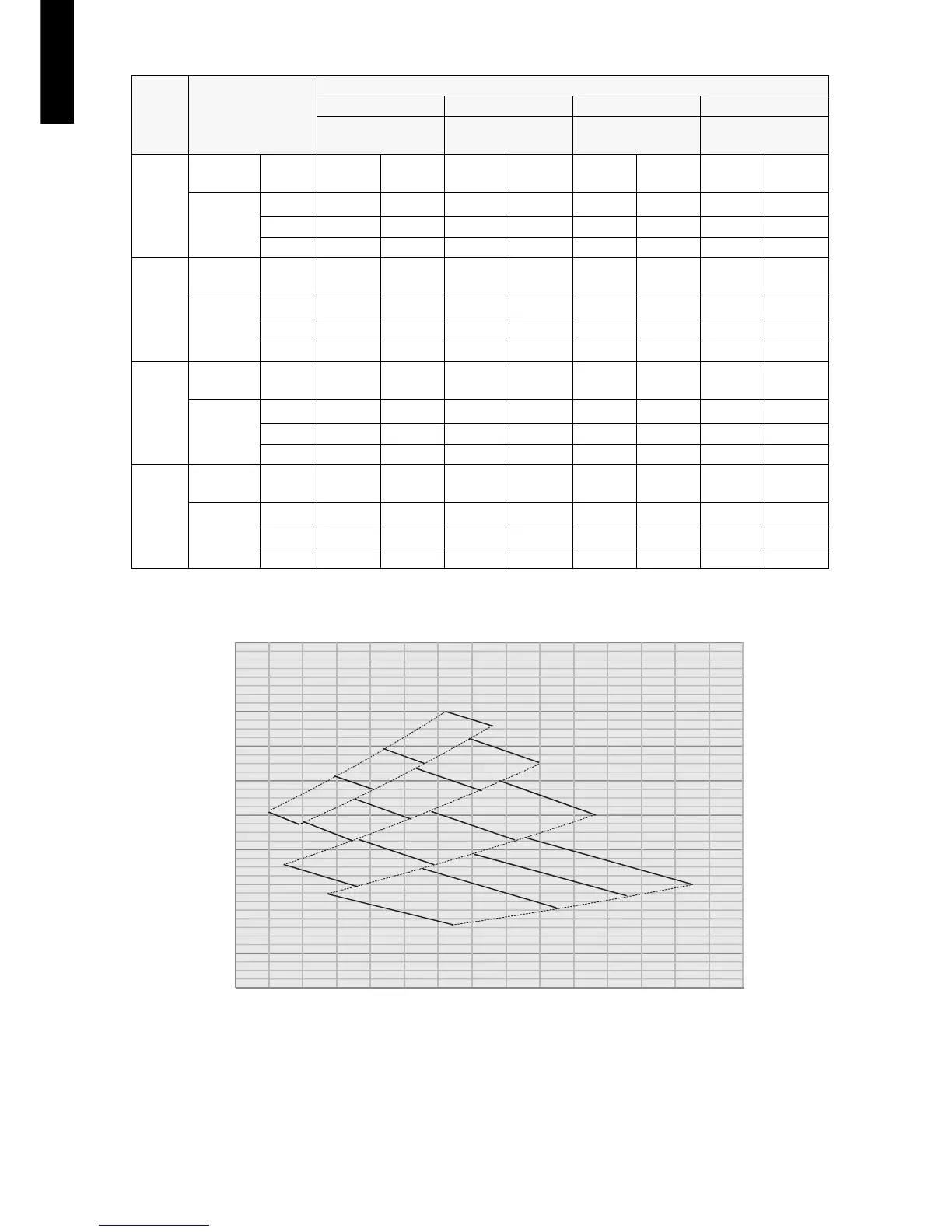

DUCT TYPE ARGA30-60F
 Model: ARGA60FHTA
Factory setting is Mode 1.
Fan
speed
Item
Static pressure mode
Mode 1 Mode 2 Mode 3 Mode 4
Normal
High static
pressure 1
High static
pressure 2
High static
pressure 3
HIGH
Static
pressure
Pa 60 85 100 120 130 145 150 160
Airflow
m
3
/h
3350 2860 3060 2780 2900 2700 2760 2620
l/s 931 794 850 772 806 750 767 728
CFM 1971 1682 1800 1635 1706 1588 1624 1541
MED
Static
pressure
Pa 50 77 85 103 115 127 130 138
Airflow
m
3
/h
3170 2700 2820 2580 2720 2530 2550 2430
l/s 881 750 783 717 756 703 708 675
CFM 1865 1588 1659 1518 1600 1488 1500 1429
LOW
Static
pressure
Pa 45 70 67 86 97 110 115 123
Airflow
m
3
/h
2950 2550 2580 2370 2520 2370 2410 2300
l/s 819 708 717 658 700 658 669 639
CFM 1735 1500 1518 1394 1482 1394 1418 1353
QUIET
Static
pressure
Pa 37 55 57 67 85 96 95 101
Airflow
m
3
/h
2650 2270 2370 2130 2340 2210 2190 2100
l/s 736 631 658 592 650 614 608 583
CFM 1559 1335 1394 1253 1376 1300 1288 1235
2000 2200 2400 2600 2800 3000 3200 3400
External Static Pressure [Pa]
Fan performance curve_1
0
20
40
60
80
100
120
140
160
180
200
Hi [Normal (60Pa)]
Quiet
Airflow [m
3
/h]
Quiet
Quiet
Quiet
Low
Low
Low
Med
Med
Med
Hi [High static pressure 2 (130Pa)]
Hi [High static pressure 1 (100Pa)]
Hi [High static pressure 3 (160Pa)]
Low
Med
