- 29 -
DUCT TYPE ARGA30-60F
NOTES:
• Setting of the external static pressure is switchable into 4-stage modes by using the remote
controller.
• According to the resistance of the connecting duct, perform the setting of the external static pres-
sure with referring “Fan performance curve_2” above.
• The default setting is set at "Normal mode".
 Characteristics of air volume and capacity
 Cooling

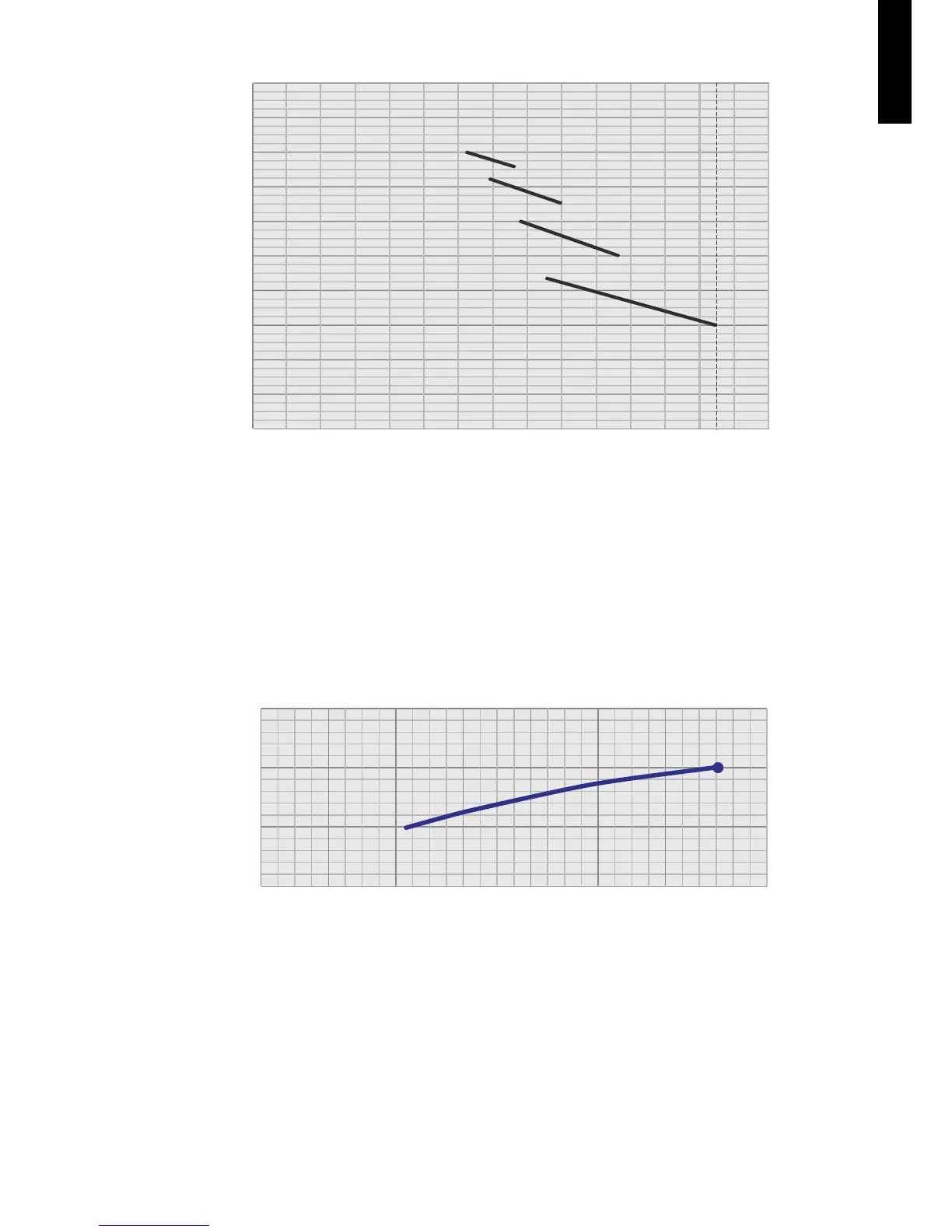

Fan performance curve_2
(For function setting of remote controller)
2000 2200 2400 2600 2800 3000 3200 3400
External Static Pressure [Pa]
0
20
40
60
80
100
120
140
160
180
200
Hi: [Normal (60Pa)]
Airflow [m
3
/h]
Hi: [High static pressure 2 (130Pa)]
Hi: [High static pressure 1 (100Pa)]
Hi: [High static pressure 3 (160Pa)]
Airflow [m
3
/h]
Capacity [%] 95
90
100
105
2000 2200 2400 2600 2800 3000 3200 3400
