14. Group connection
Wiring regulation on the remote controllers in the multi-split systems are reviewed and allowed for
group connection.
Outdoor unit
Indoor unit

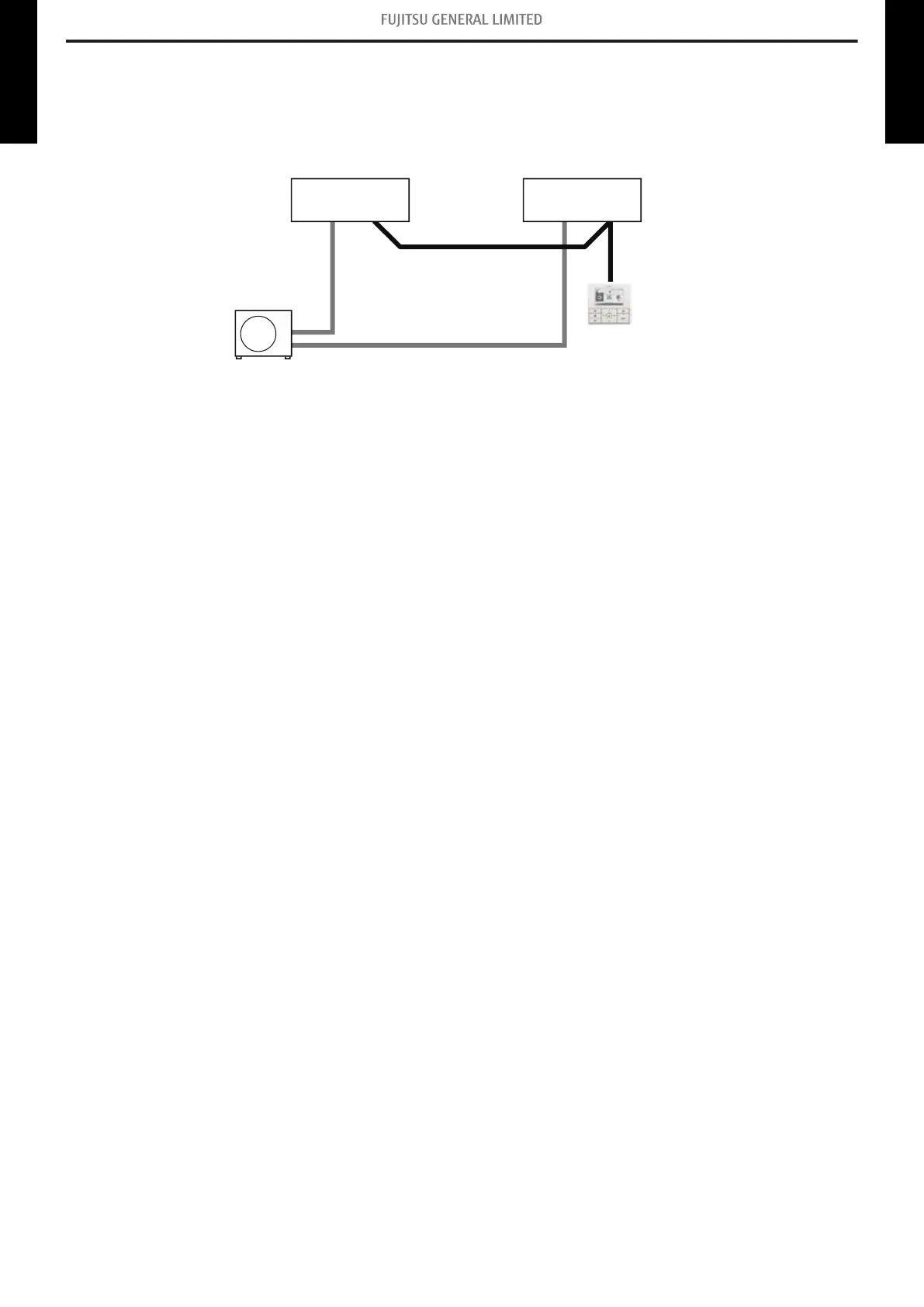

Example of group connection
Indoor unit
*Exterior of each device shown above might be different from the actual one.
NOTES:
• Group connection is applicable for multi-split system consists of following products that are pro-
duced in 2013 or later:
– ASU7RLF1, ASU9RLF1, ASU12RLF1, ASUH07LPAS, ASUH09LPAS, ASUH12LPAS,
ASUH15LPAS, ASUH18LPAS, and ASUH24LPAS in wall mounted type
– AGU9RLF, AGU12RLF, and AGU15RLF in floor type
• Maximum number of connectable indoor units is depend on the outdoor unit.
•
- 156 -
14. Group connection
MULTI-SPLIT TYPE
5-unit type
MULTI-SPLIT TYPE
5-unit type
