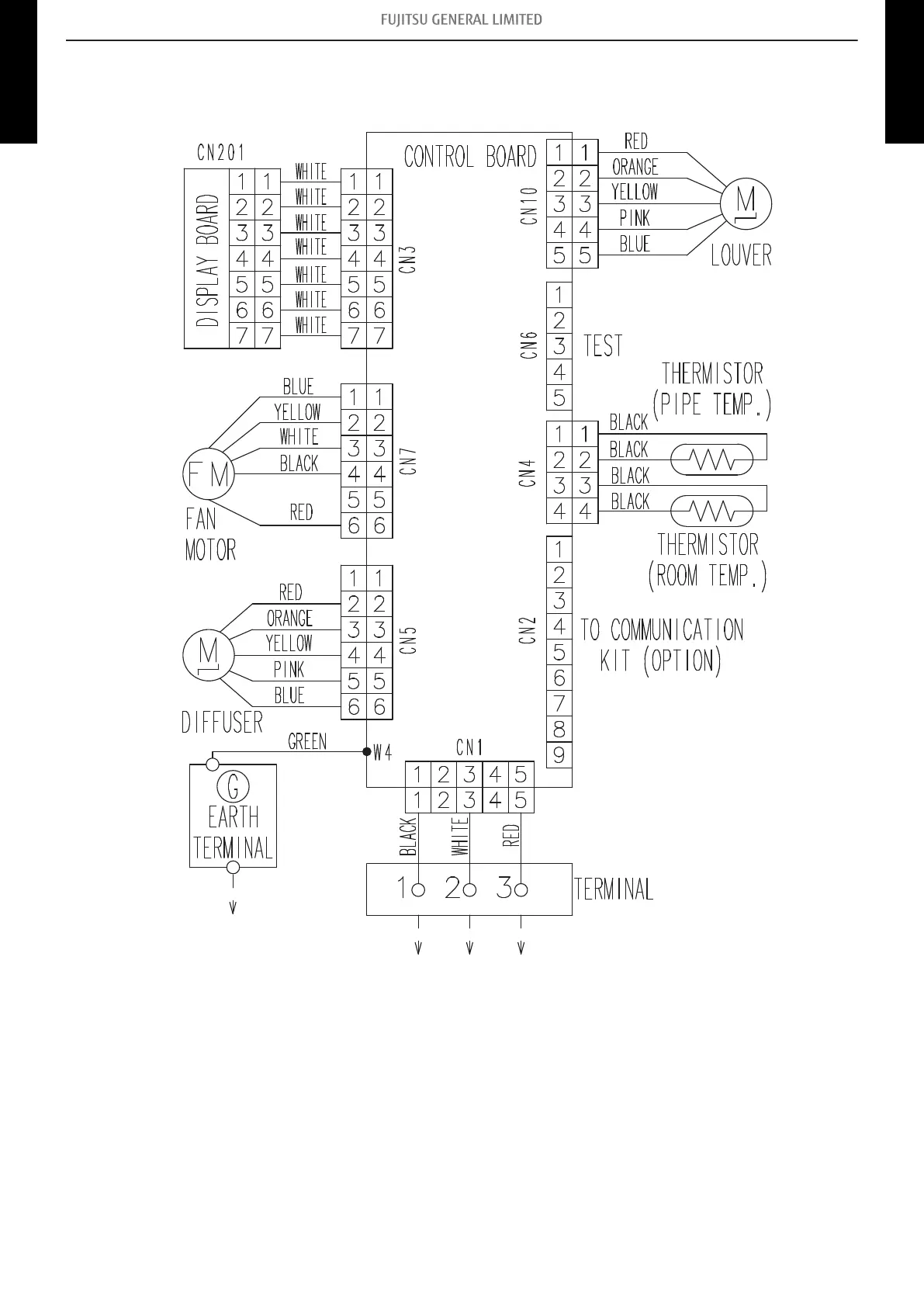

4-3. Wall mounted type
¢
Models: ASU7RLF1, ASU9RLF1, ASU12RLF1, and ASU15RLF1
- 29 -
4-3. Wall mounted type 4. Wiring diagrams
MULTI-SPLIT TYPE
5-unit type
MULTI-SPLIT TYPE
5-unit type
