Fujitsu ASU12RLF1

¢

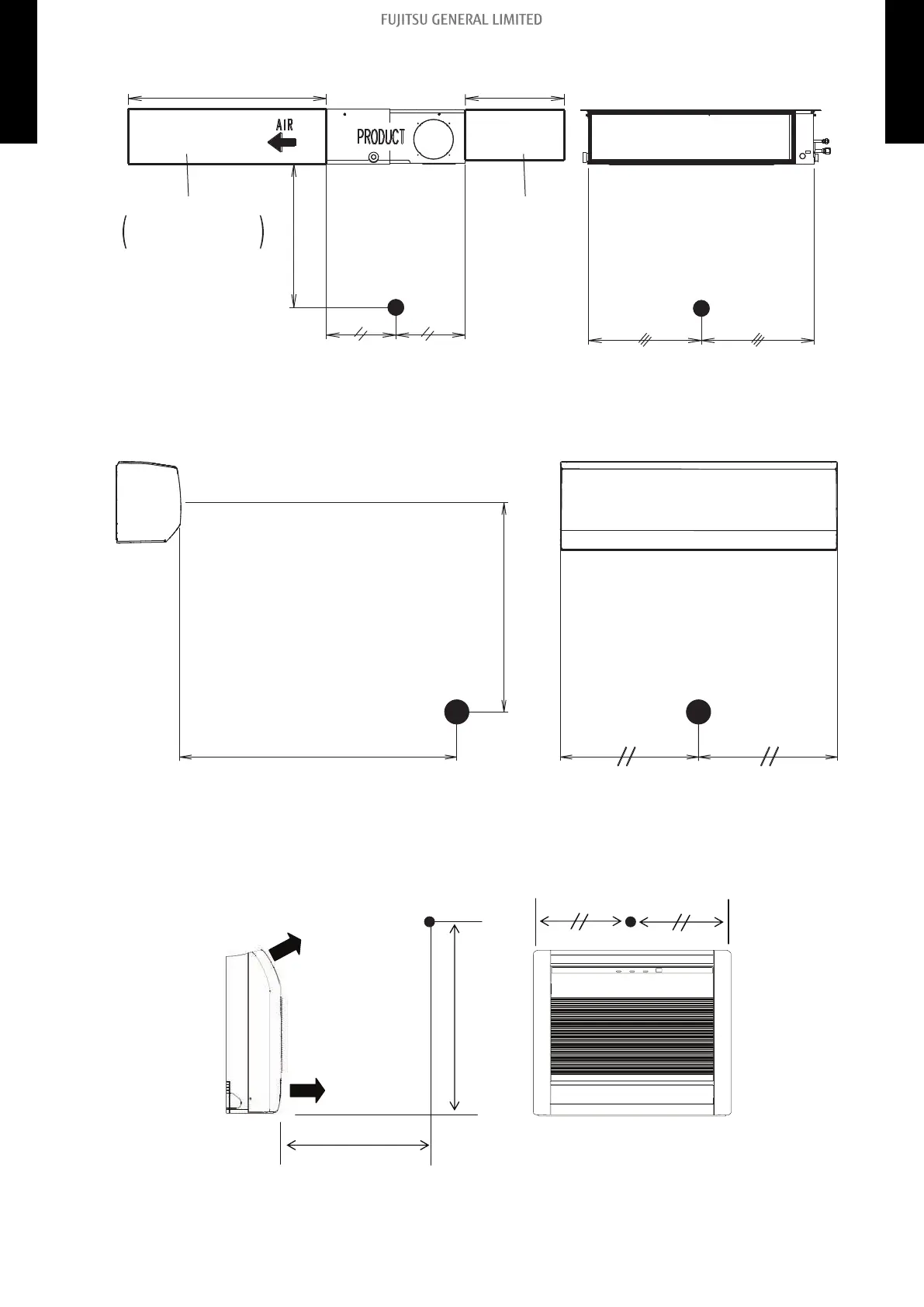

Slim duct type
Front viewSide view
60 in (1.5 m)
79 in (2 m) 40 in (1 m)
Microphone
Measuring duct Measuring duct
Microphone
Set the static pressure
as rating in this area
¢
Wall mounted type
32 in (0.8 m)
40 in (1 m)
Microphone Microphone
NOTE: Detailed shape of the actual indoor unit might be slightly different from the one illustrated
above.
¢
Floor type
Microphone
Airflow
Airflow
40 in (1 m)
40 in (1 m)
Microphone
