15-6. Wired remote controller (UTY-RNRUZ*: Optional part)
¢
Overview
76°F
80°F
74°F
84°F
68°F
Away
Custom
Auto
Auto
Cool
Heat
Office
Set Temp.
Mode
MenuStatus
Vacation
Fan
Fri 10:00AM
Room Temp.
Cool
Heat
a b c d
Display panel
76°F
80°F
74°F
84°F
68°F
Away
Cutom
Auto
Auto
Cool
Heat
Office
Set Temp.
Mode
MenuStatus
Vacation
Fan
Fri 10:00AM
Room Temp.
Cool
Heat
Override
e
f
h
g
i
j
l
m
k
n
o
p
p
p
p
p

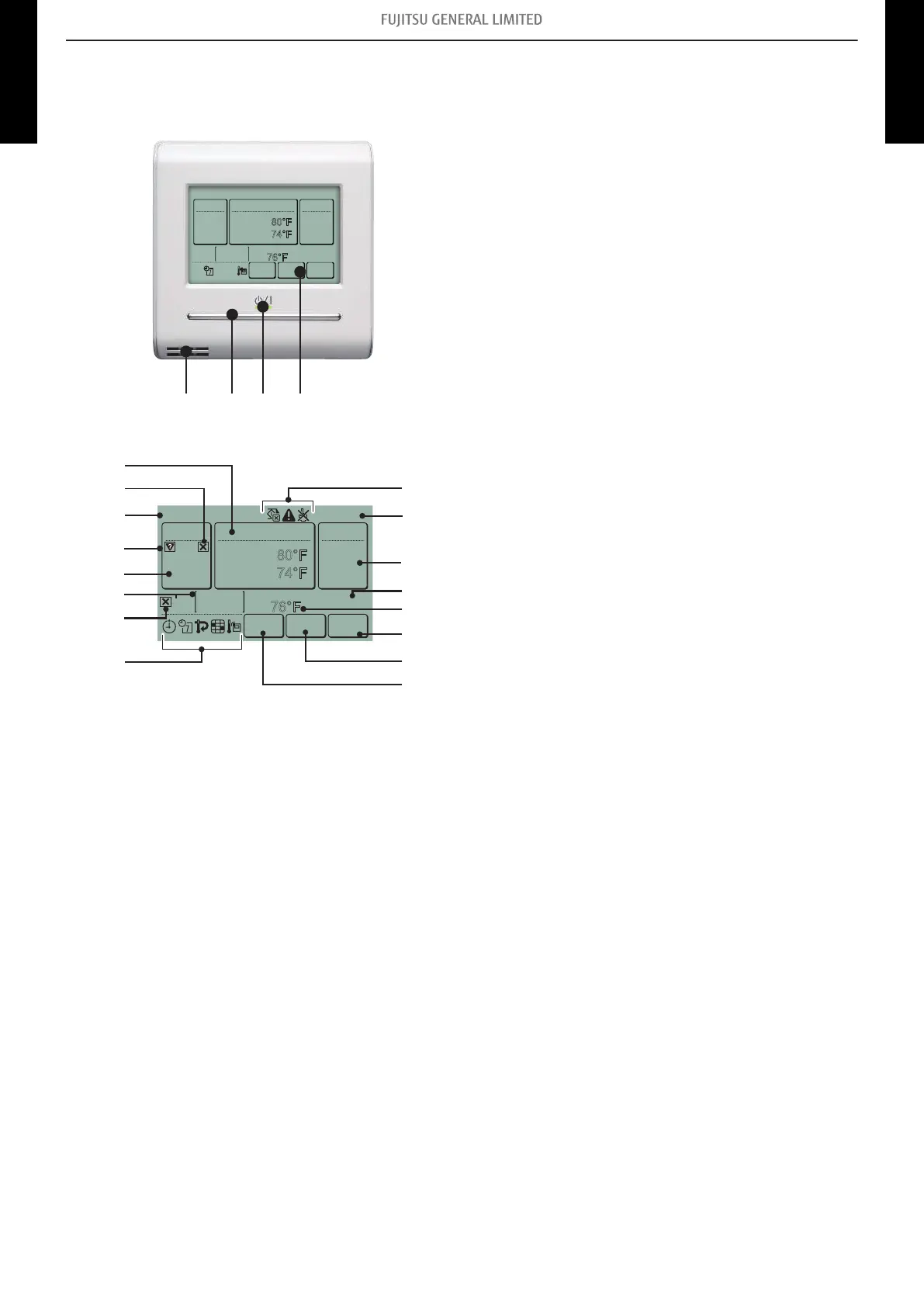

a Remote temperature sensor (inside)
b On/off button
Operable only while displaying the “Monitor mode” screen.
c LED lamp (operation indicator)
d Touch panel display
e Remote controller group name
f Clock
g Mode
h Set temperature
i Fan
j Away
k Room temperature
l Override
m Menu
Various settings can be set.
n Status
Status of the indoor unit and error can be checked.
o Vacation
When this is touched, the schedule is disabled and the in-
door unit remains unoccupied.
p Status icons
NOTE: Functions may differ by type of the in-
door unit. For details, refer to the opera-
tion manual.
