- (01 - 07) -
WALL MOUNTED TYPE
ASU2 4CL1
WALL MOUNTED TYPE
ASU2 4CL1

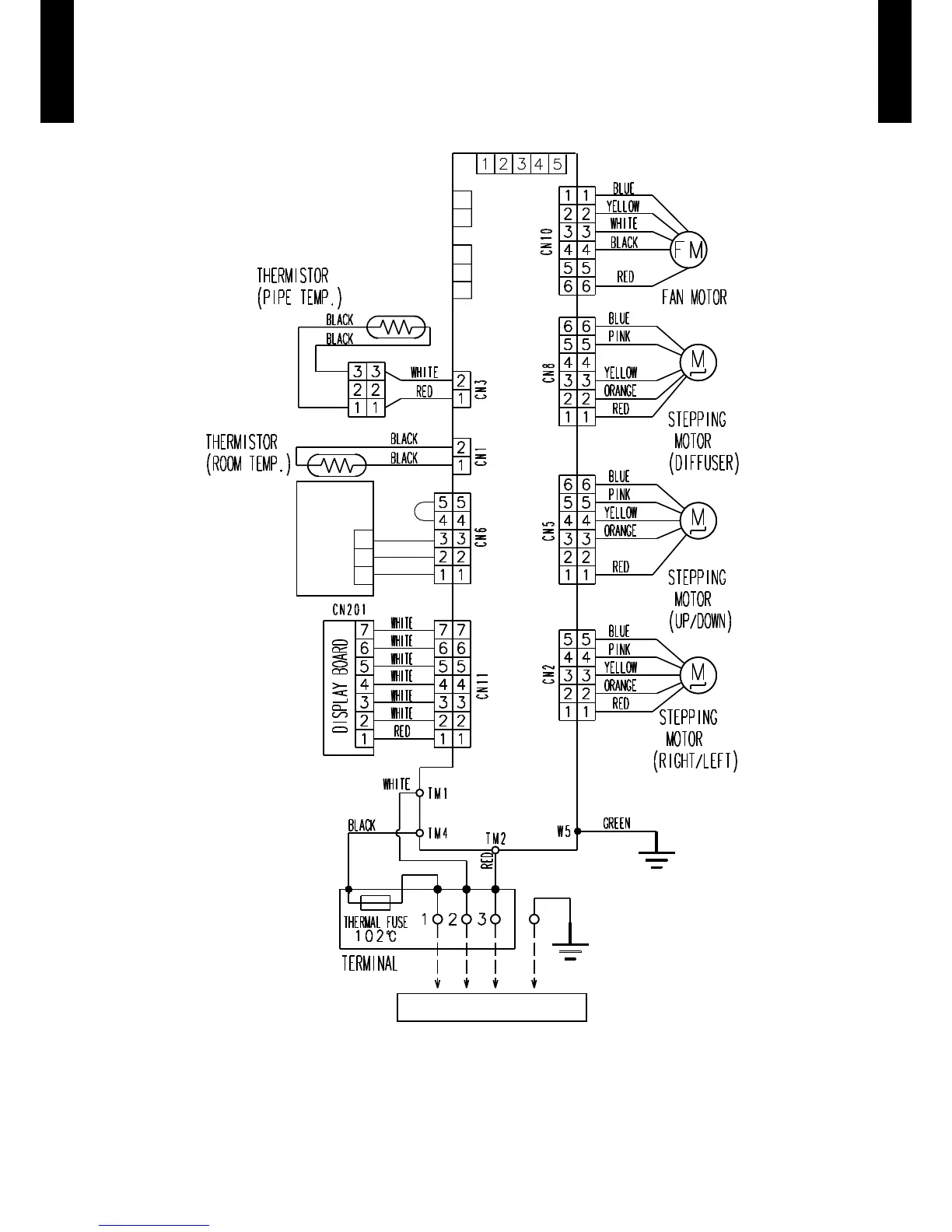

WIRING DIAGRAMS5.
MODEL
: ASU24CL1
TO OUTDOOR UNIT
CONTROOL BOARD
TEST
CN13
CN14
2
1
CN16
EX.OUT
(OPTION)
EX.IN
(OPTION)
1
2
3
BLACK
WHITE
RED
REMOTE CONTROL
UNIT (OPTION)
3
2
1
