Fujitsu ASU24CL1 - 2. DIMENSIONS; INSTALLATION PLACE

- (02 - 02) -
OUTDOOR UNIT AOU24CL1 OUTDOOR UNIT AOU24CL1

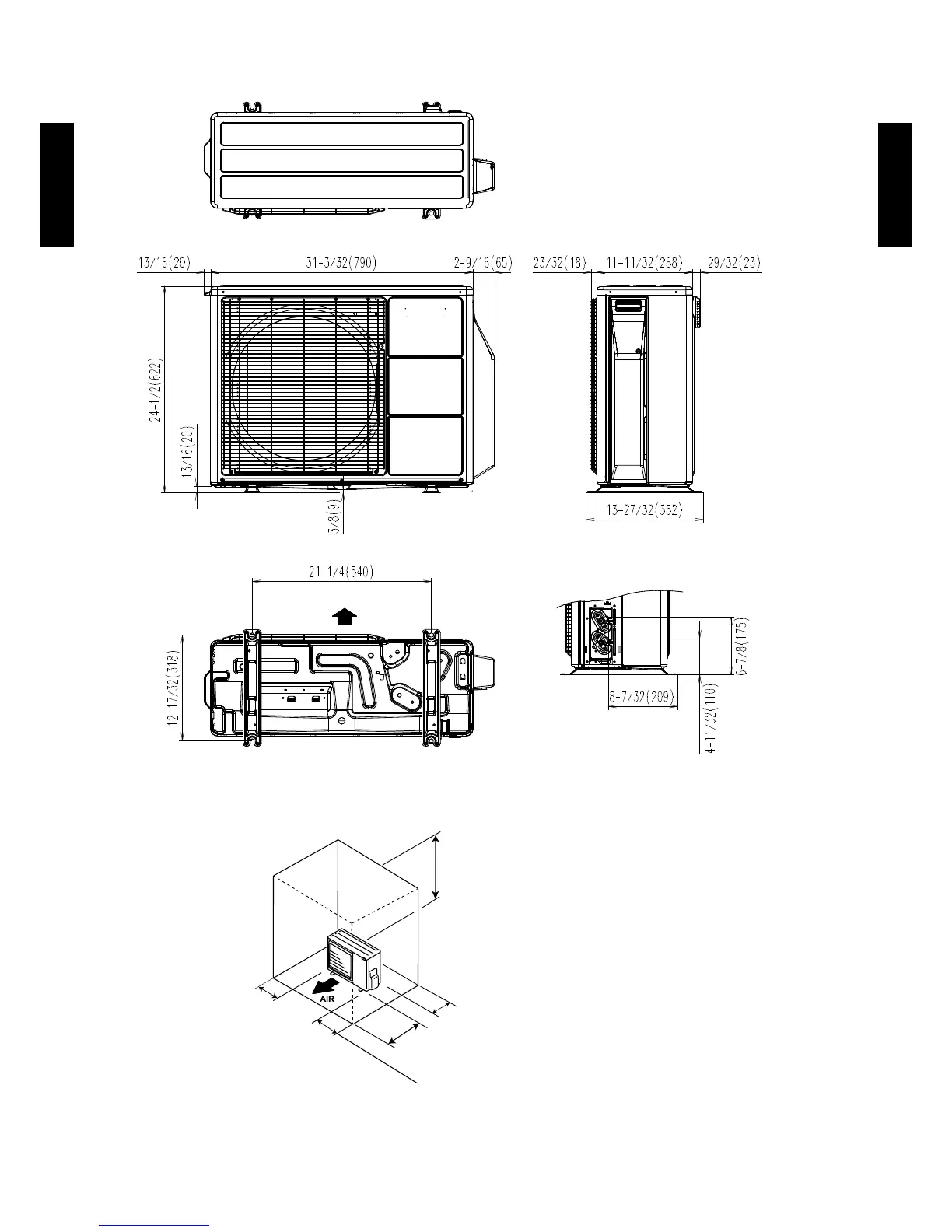

DIMENSIONS2.
MODEL

: AOU24CL1
Unit : in. (mm)
INSTALLATION PLACE

Top view
Front view
Air ow
Bottom view
Side view
23-5/8 (600) or more
3-15/16 (100) or more
11-13/16 (300) or more
3-15/16 (100) or more
11-13/16 (300) or more
(Service space)
If the space is larger that is stated, the condition will be the same as that are no obstacles.
