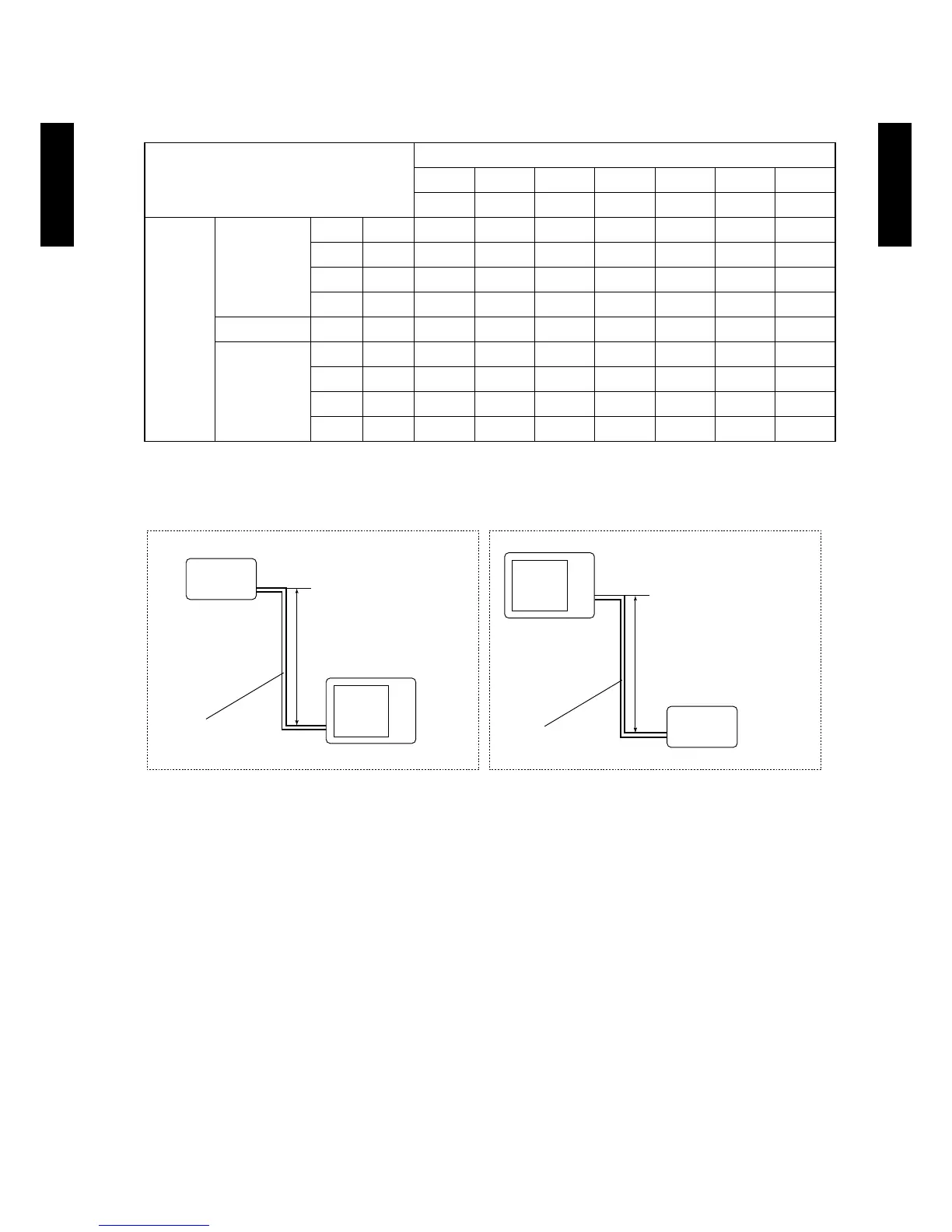

OUTDOOR UNIT AOU24CL1 OUTDOOR UNIT AOU24CL1
CAPACITY COMPENSATION RATE FOR PIPE LENGTH 5.
AND HEIGHT DIFFERENCE
MODEL

: AOU24CL1
Height difference H

1 Indoor unit is upper than outdoor unit.

2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
COOLING
Pipe length (m)
5 7.5 10 15 20 25 30
16ft. 25ft. 33ft. 49ft. 66ft. 82ft. 98ft.
Height
difference
H
(m)
Û
1
Indoor unit is
upper than
outdoor unit.
20 66ft. - - - - 0.951 0.951 0.950
10 33ft. - - 0.980 0.966 0.967 0.967 0.966
7.5 25ft. - 0.988 0.984 0.970 0.971 0.971 0.970
5 16ft. 0.995 0.992 0.988 0.974 0.975 0.975 0.974
0 0ft. 1.003 1.000 0.996 0.982 0.983 0.983 0.982
Û
2
Indoor unit is
under than
outdoor unit
-5 -16ft. 1.003 1.000 0.996 0.982 0.983 0.983 0.982
-7. 5 -25ft. - 1.000 0.996 0.982 0.983 0.983 0.982
-10 -33ft. - - 0.996 0.982 0.983 0.983 0.982
-20 -66ft. - - - - 0.983 0.983 0.982
