- 64 -

OUTDOOR UNIT

AOU30RLXEH

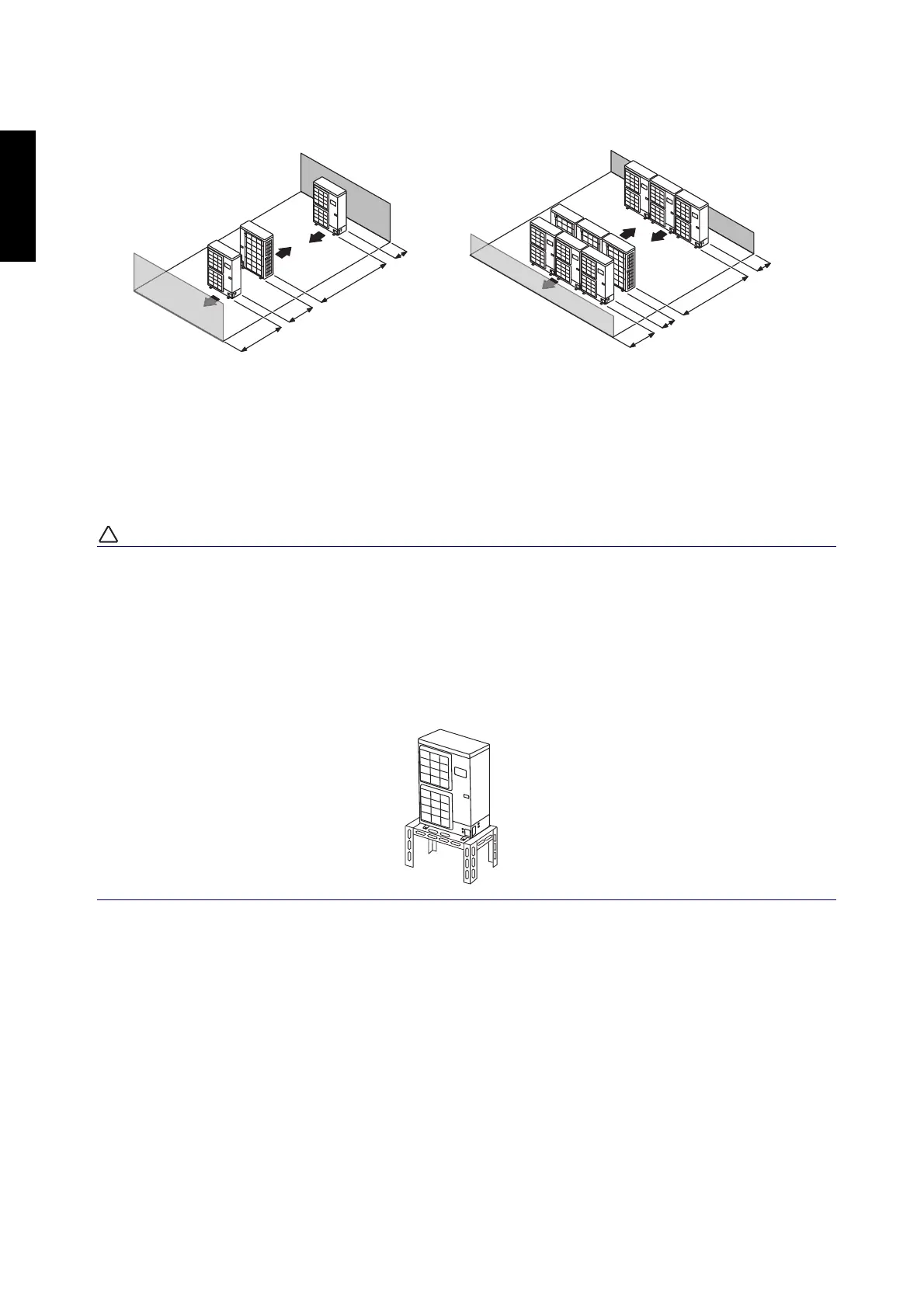

 Outdoor unit installation in multi-row

NOTES:

• If the space is larger than stated above, the condition will be the same as when there is no

obstacle.

• Height above the floor level should be 2 in (50 mm) or more.

• When installing the outdoor unit, be sure to open the front and left side to obtain better operation

efficiency.

CAUTION

• Do not install the outdoor unit in two-stage where the drain water could freeze. Otherwise the

drainage from the upper unit may form ice and cause a malfunction of the lower unit.

• When the outdoor temperature is 32 °F (0 °C) or less, do not use the accessory drain pipe and

drain cap. If the drain pipe and drain cap are used, the drain water in the pipe may freeze in

extremely cold climate. (For reverse cycle model only.)

• In area with heavy snowfall, if the inlet and outlet of the outdoor unit is blocked with snow, it might

become difficult to get warm, and it is likely to cause product malfunction. Construct a canopy and

a pedestal, or place the unit on a high stand that is locally installed.

Unit: in (mm)

Single parallel unit arrangement Multiple parallel unit arrangement

40 (1,000) or more

79 (2,000)

or more

24 (600) or more

6 (150)

or more

119 (3,000)

or more

24 (600) or more

60 (1,500) or more

20 (500)

or more
